Mercury VesselView 4 User Manual

Section 5 - Screen Navigation
Page 38 90-8M0074776 eng MAY 2013

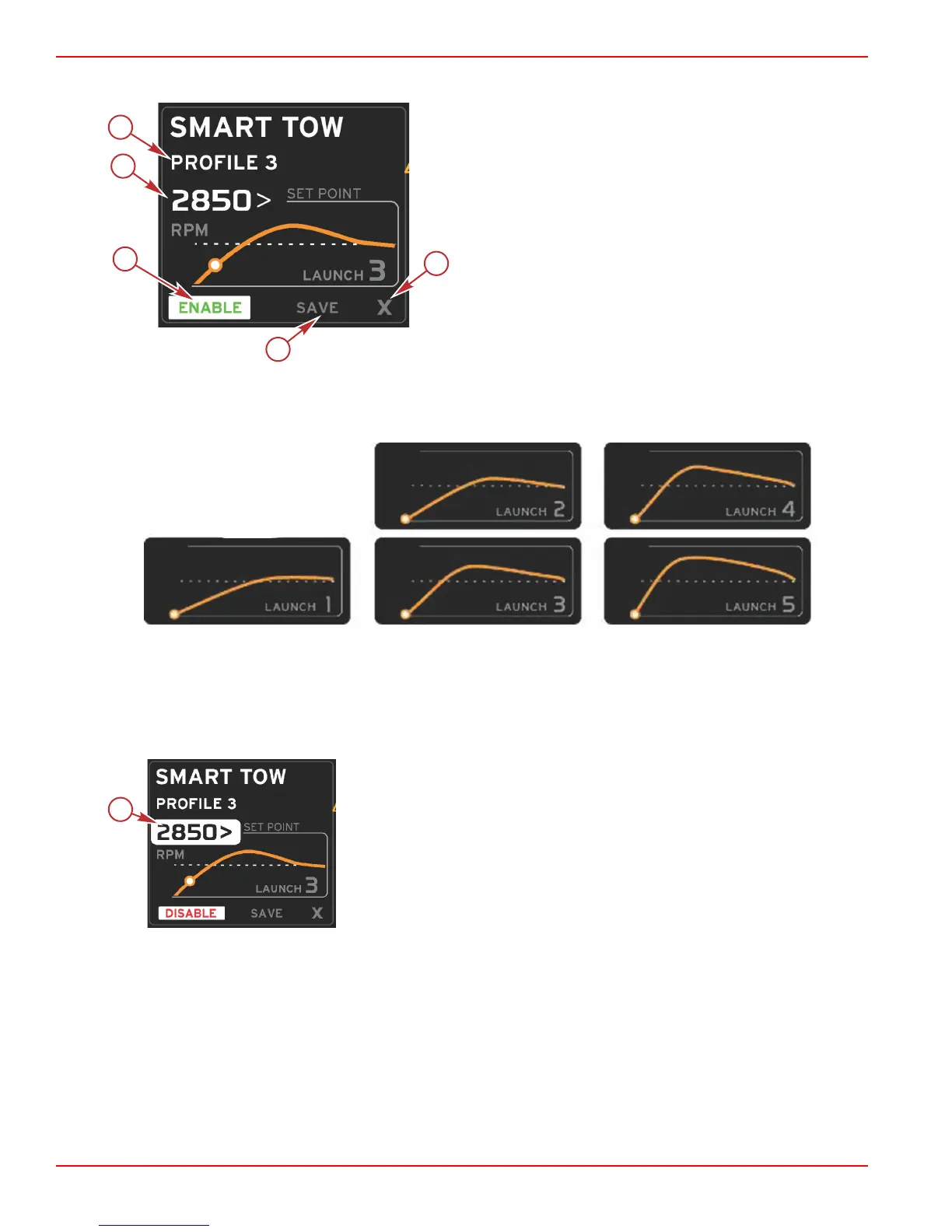

• The enter button is not required for the field outside the footer area.
a - Profile selection
b - Set point value
c - Enable
d - Save
e - Exit
Profile selection allows you to select from the 5 factory preset profiles and any custom settings you have created. Custom
settings can be modified and will default to the last know settings. The enter button does not need to be pressed to accept and
save changes.
52280
Factory preset profiles
The set‑point value will allow the operator to adjust the RPM or speed set‑point. These will default to 10 mph or 1700 RPM until
the operator quick saves the values.
• Set‑point is the default selection when Smart Tow is active. The operator can adjust the RPM or speed by pressing the
arrows key.
a - Set‑point default selection
After the operator makes adjustments to the desired settings, pressing the pages button will move to the cursor to the enable
selection in the footer area of the contextual data area.
• Enable or disable turns the feature on or off. The persistent data RPM sweeps will be displayed as non‑active white
sweeps. The operator can modify all settings when the system is in the off state.
a. The Enable icon will be green when active
b
c
d
e
52192
a
a
52281
