Mercury VesselView 4 User Manual

Section 6 - Installation
Page 50 90-8M0074776 eng MAY 2013

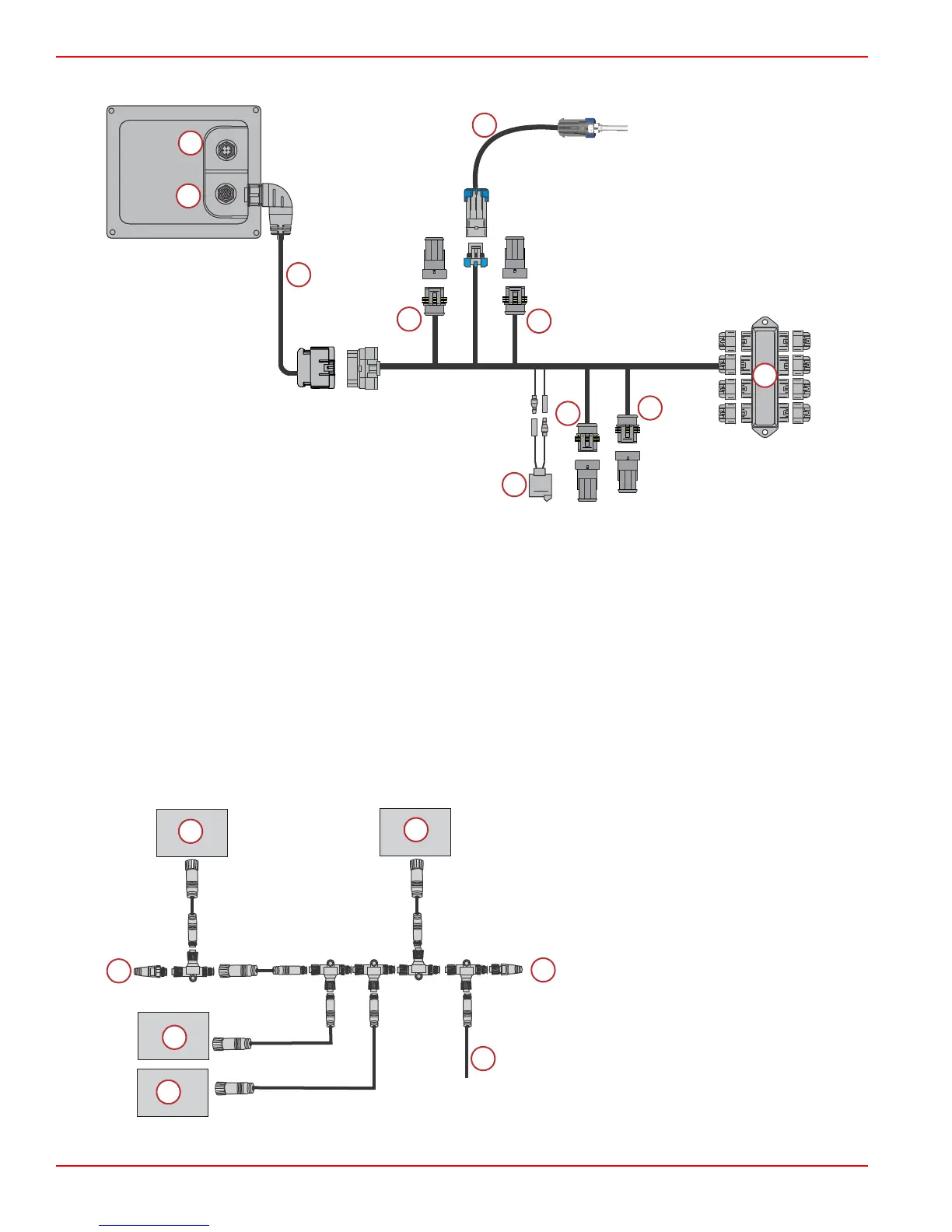

VesselView 4 Wire Harness
a - SIMNET/ NMEA 2000
b - SmartCraft network and power connection
c - VesselView adapter harness
d - System Link port center (engine 2)
e - Air temperature sensor
f - System Link starboard center (engine 2)
g - Horn
h - System Link port
i - System Link starboard
j - Junction box
VesselView NMEA 2K Connections
NMEA 2K must be powered separately from the SmartCraft network. The NMEA 2K power supply must be properly fused and
have termination resistors at each end of the backbone.
a - 120k ohm termination resistor
b - GPS
c - Chart plotter
d - NMEA 2K fused power source
e - VesselView
a
b
c
d
e
f
g
h
i
j
52788
120
a
a
b
c
d
e
e
52795
120
