Mercury VesselView 4 User Manual

Section 6 - Installation
90-8M0074776 eng MAY 2013 Page 51

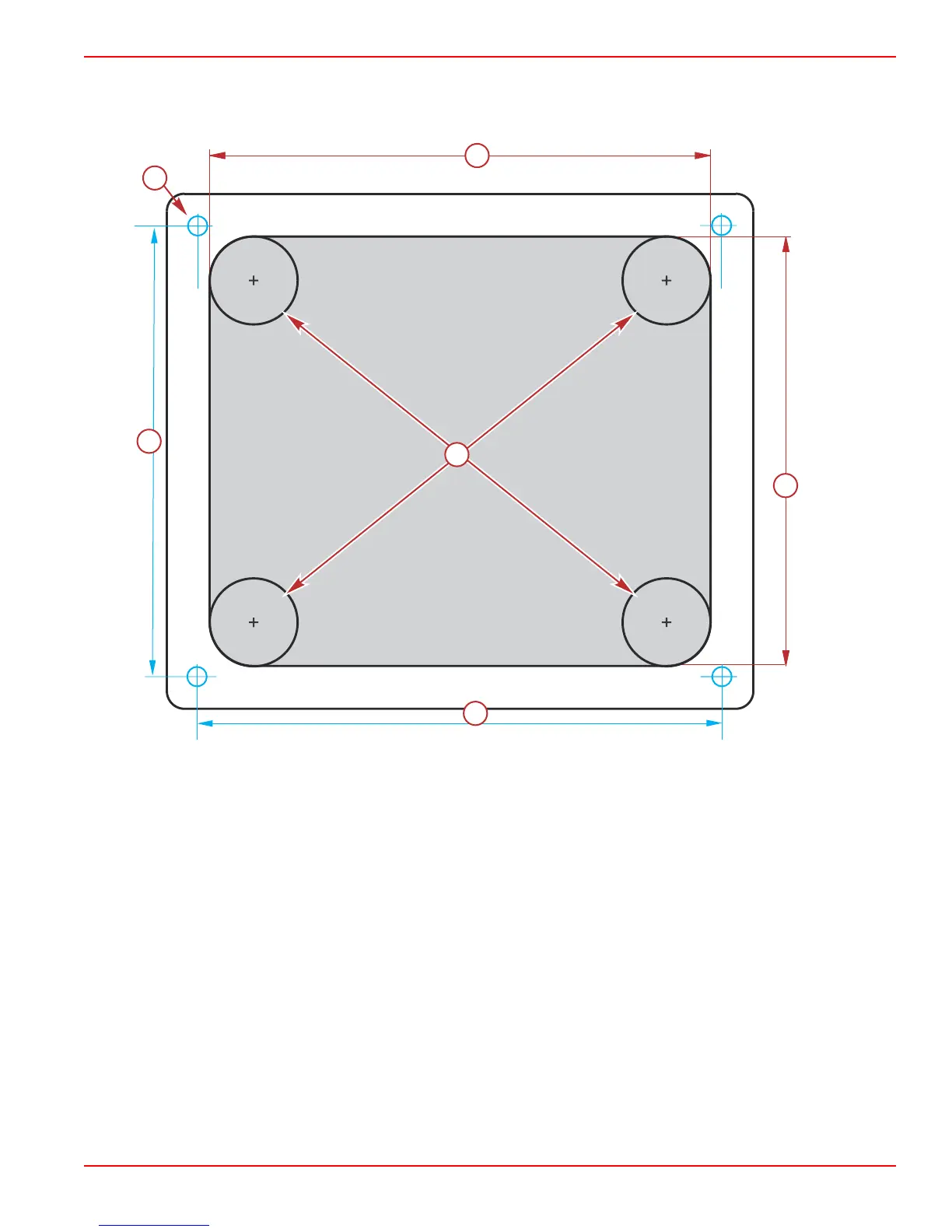

VesselView 4 Cut‑out template
IMPORTANT: Due to printing and copying variables, the image size may have changed from the actual size. Check the graphic
for accuracy prior to using the template.
a - 113.63 mm (4.474 in.)
b - 97.43 mm (3.836 in.)
c - 118 mm (4.646 in.)
d - 102 mm (4.016 in.)
e - 4.5 mm (0.117 in.) (4x)
f - 20 mm (0.787 in.)
52840
b
a
b
c
d
e
f
