Steering Offset is used to align the outboard, sterndrive, or inboard to zero degrees. When the drive is positioned perpendicular
to the hull, the steering angle displayed on‑screen may not match the steering sensor on the drive. To adjust for this variance,
select the Offset window. The Steering Angle Calibration box appears. Selecting the Calibrated row Zero button will apply the
offset. Note that the offset does not change on the display screen until the Save button is selected.

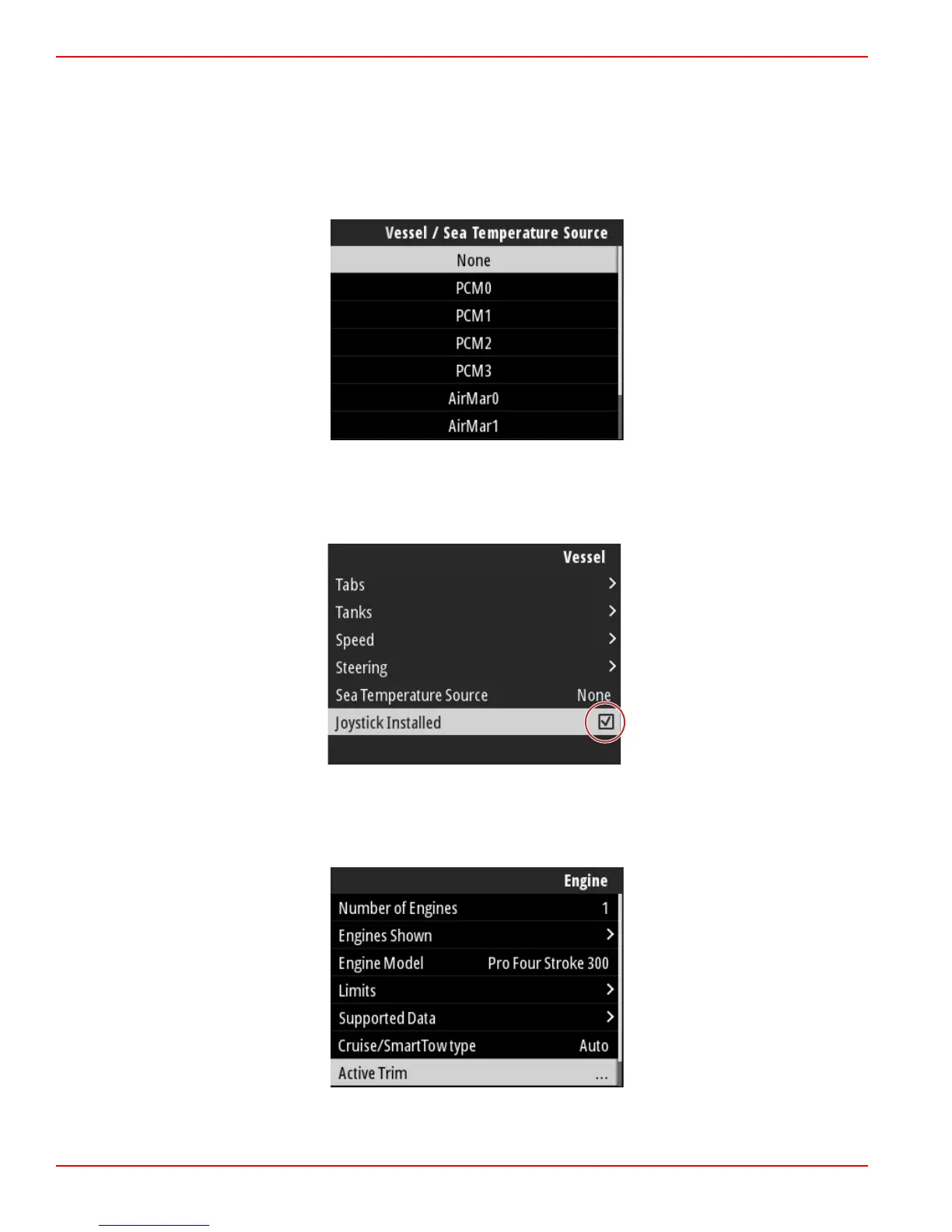

Sea Temperature Source
Selection of the engine or drive that transmits water temperature data can be changed. Refer to Steering in this section for
engine or drive PCM positions. Additional selections for AirMar© senders can be chosen as well.
Joystick Installed
For vessels equipped with Joystick Piloting, highlight and select the Joystick Installed check box option. This will ensure that
inputs to the system, initiated by the joystick will be recognized by the VesselView unit.
Engine
Several of the settings options under the Engine tab were set during the setup wizard process, but changes to the engine
settings can be made at any time.
Section 3 - Main Menu Selections
Page 52 90-8M0124182 eng DECEMBER 2017
