Building-in dimensions
119

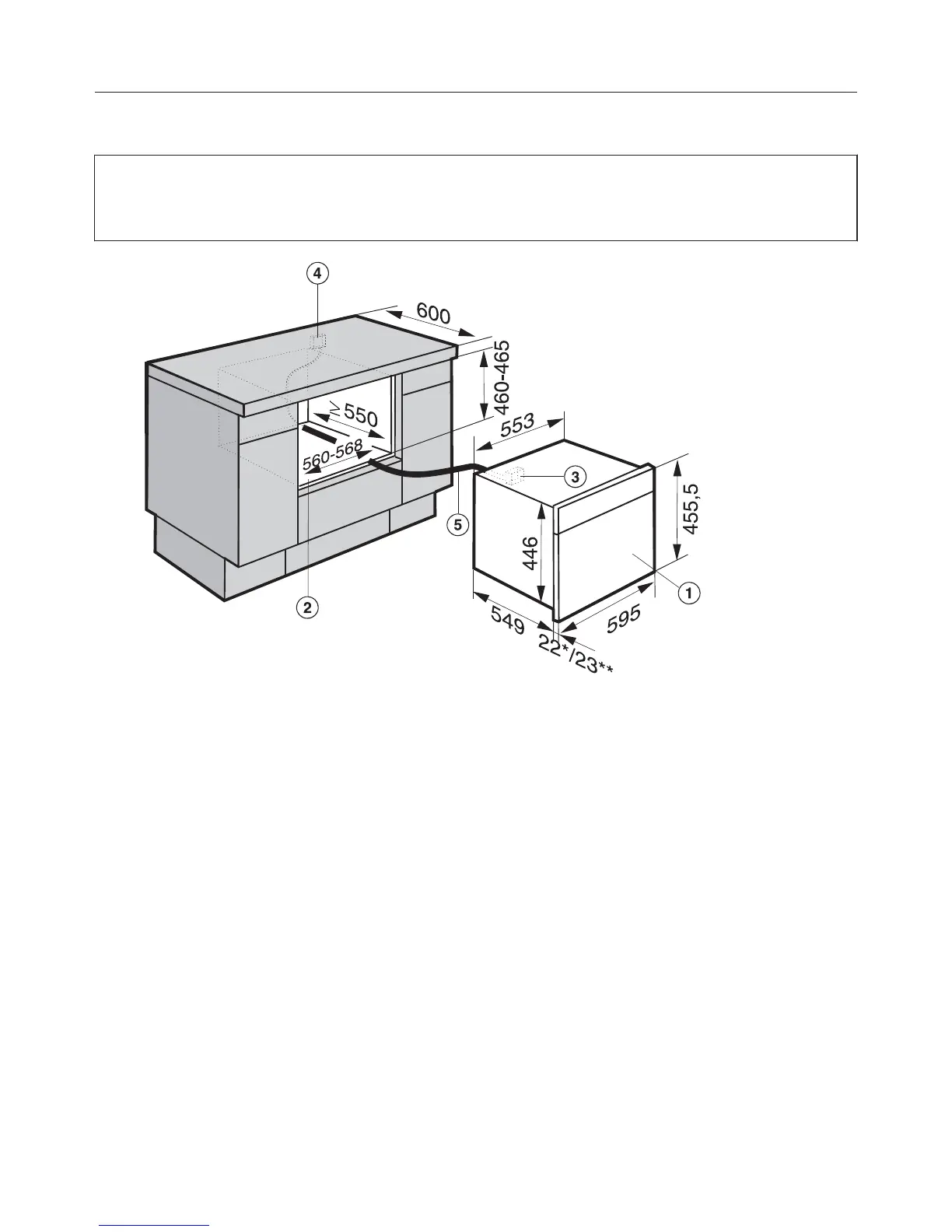

Installation in a base unit
When building the appliance into a base unit underneath a hob please also
obser
ve the installation instructions for the hob as well as the building-in depth
required for the hob (see installation instruction manual for the hob).
a
Steam oven
b
Niche
c
Inlet for mains connection cable to the appliance
d
Recommended position for electrical socket. Important: do not position behind
the appliance.
e
Mains connection cable, L = 2000 mm
* Glass front / ** metal front
