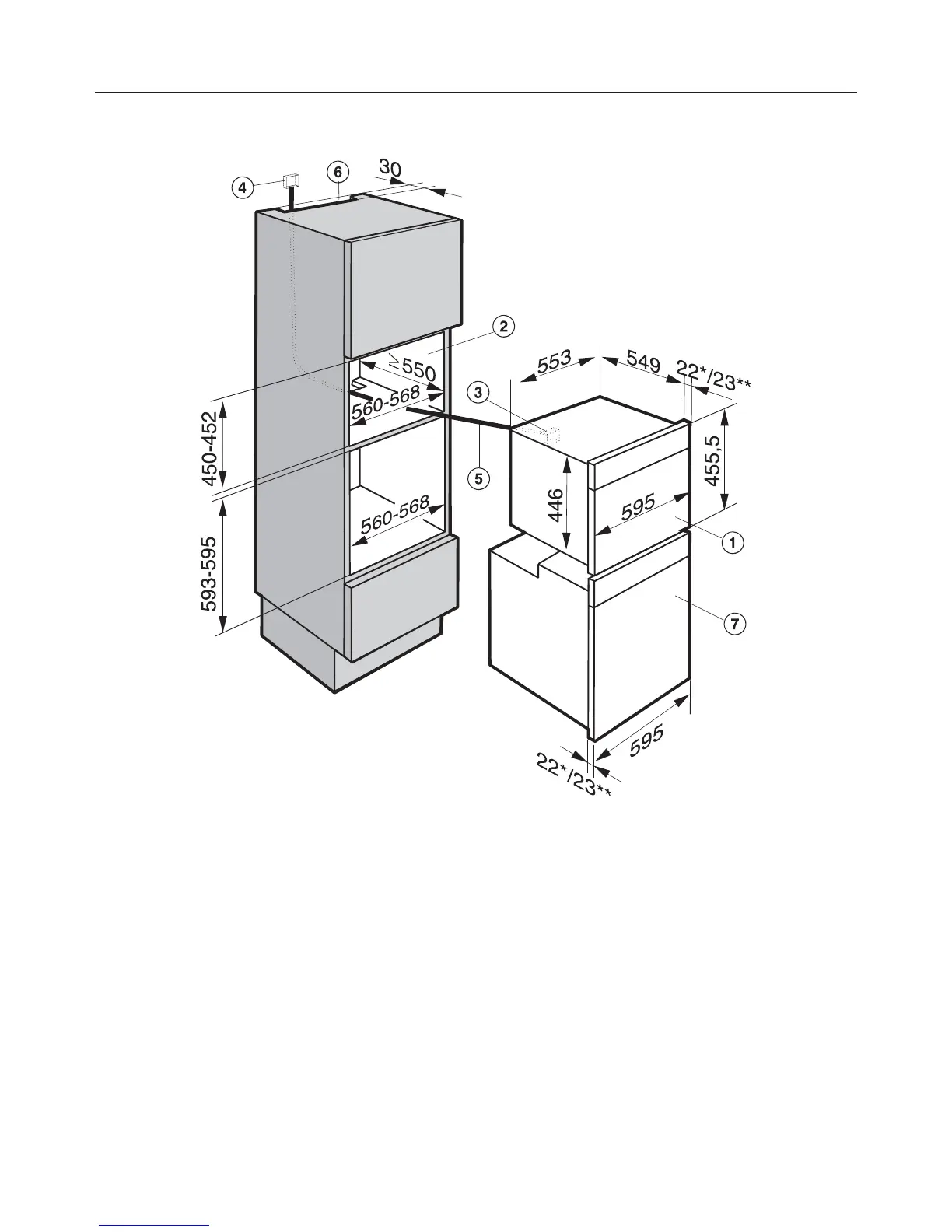

Building-in dimensions
120
Installation in a tall unit in combination with an oven
a
Steam oven
b
Niche
c
Inlet for mains connection cable to the appliance
d
Recommended position for electrical socket. Important: do not position behind
the appliance.
e
Mains connection cable, L = 2000 mm
f
Cut-out for ventilation (only necessary when installing above a pyrolitic oven)
g
Oven
* Glass front / ** metal front
