Labscale Tangential Flow Filtration System User Guide 21
Labscale Pump Module Set Up
Labscale Pump Module Installation
If you ordered the Labscale Pump Module separately, you will need
to install it in the Labscale Stir Base.
WARNING: Disconnect power connection before proceeding.
1. Remove the blank panels from the system base as shown in
figure 18.
2. Install gasket and make wiring connections as shown in figure 19.
3. Secure the pump panel and pump speed control panel into the
base as shown in figure 20.

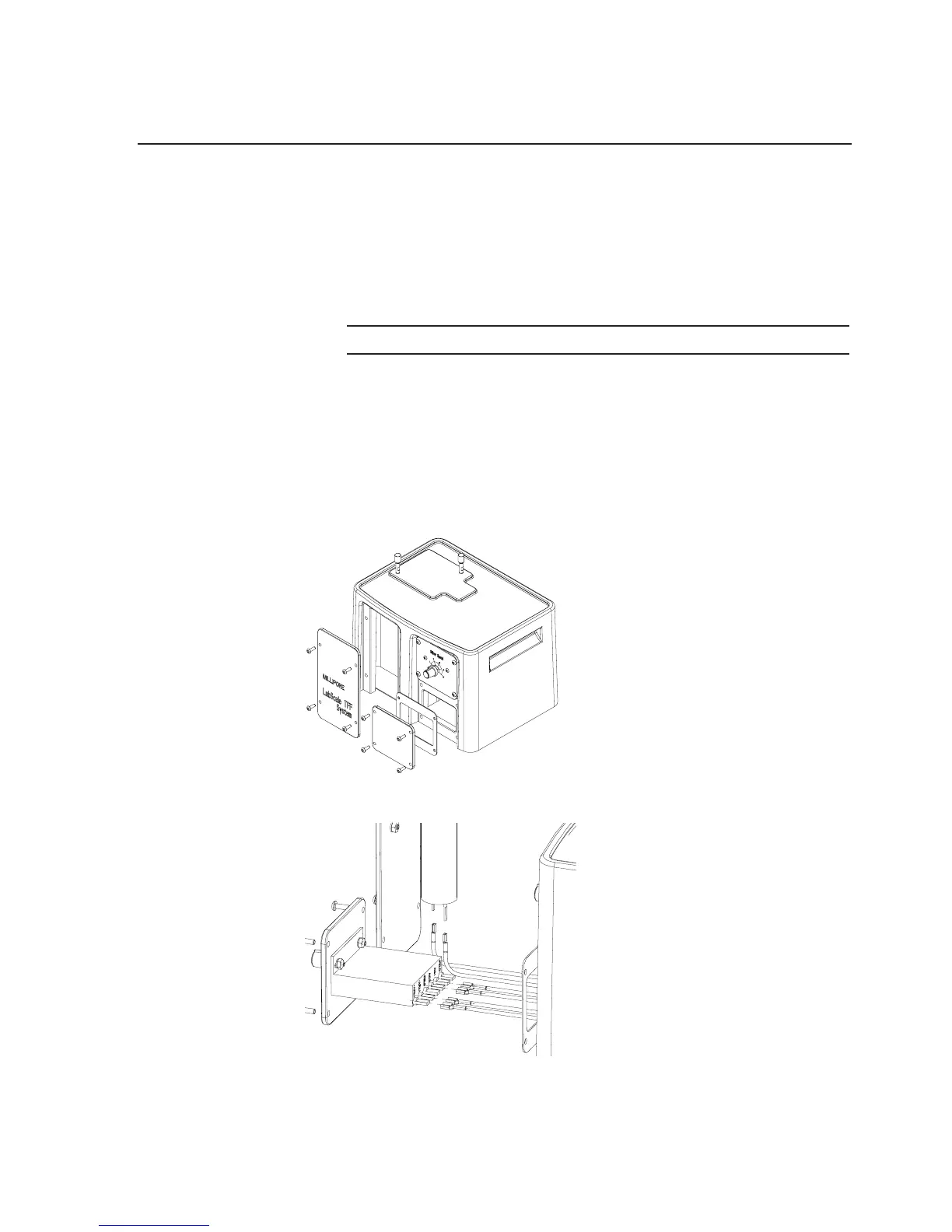

Figure 18: Remove blank panels from system base.
Figure 19: Labscale Pump Module wiring connections
