Labscale 500 mL Reservoir
The reservoir manifold and instruments are an integrated system.
The feed pressure gauge indicates the pressure of the fluid being
pumped into the Pellicon XL device. The retentate pressure gauge
indicates the pressure of the fluid exiting the Pellicon XL device.
The upper manifold includes a retentate back pressure valve. The
fittings used are polypropylene and stainless steel.
1 shut-o
valve
10 ttings
10 ttings
10 clamps
1 syringe
1 Millex
Vent
1 Operating
Manual
1 stir bar
Retentate Pressure Gauge
Retentate Back
Pressure Valve
Feed Pressure Gauge
3 Rotating
Lock Rings
6 feet (1.8m) of Silicone
(translucent) tubing
1/8" (3mm) ID

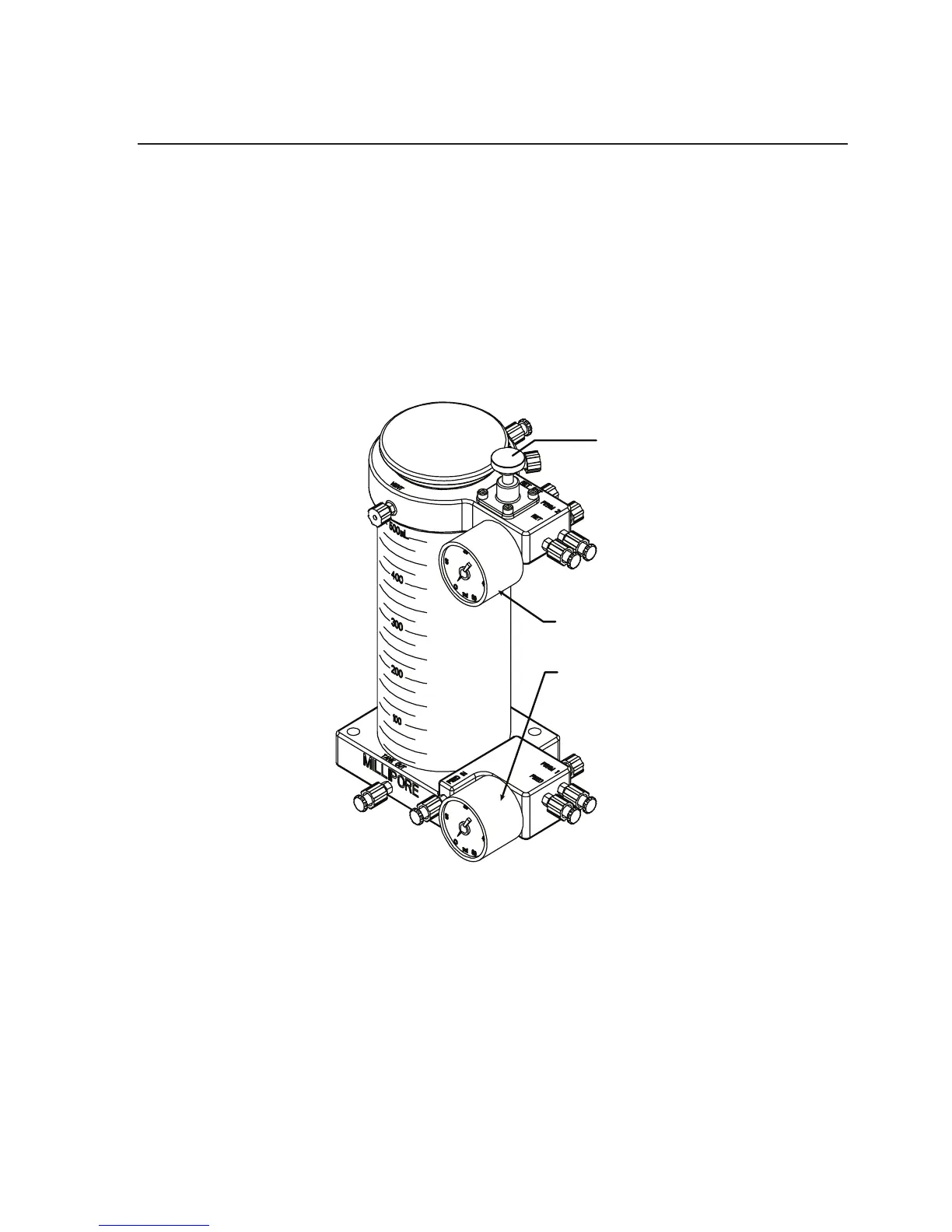

Figure 2: Labscale 500 mL Reservoir, Catalog No. XX42RES01
