MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
4.3.3 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Adjustment Items > Mechanical Adjustment > Adjustment of the Station Height
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

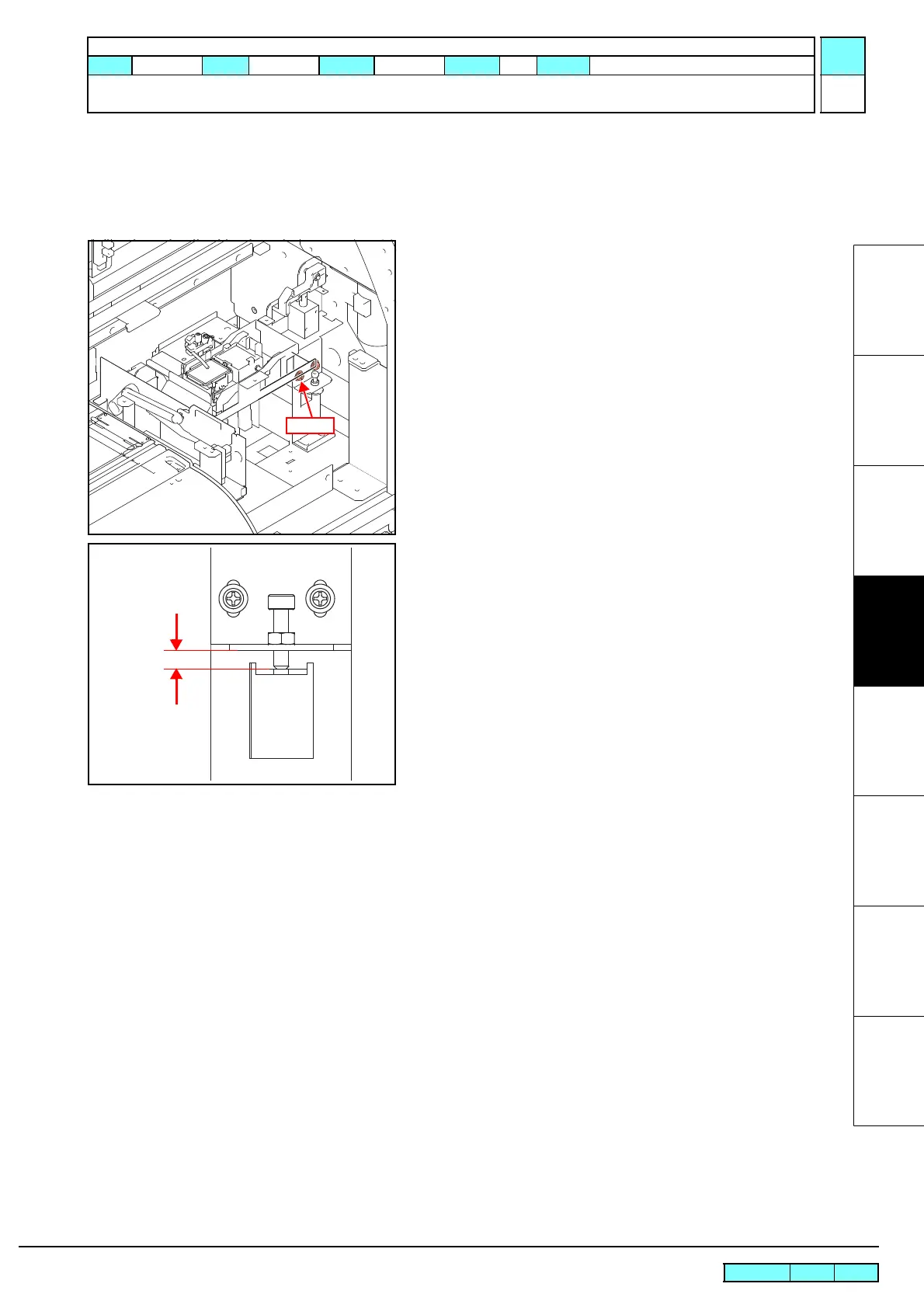

4.3.3 Adjustment of the Station Height
 Outline
 Procedure
1. Loosen the two screws used for station-base adjustment.
2. Loosen the hexagon socket head screws and make an adjustment
to set their thickness gauge at 5 mm, then tighten the nuts.
3. Tighten up two loosened screws used for station-base adjustment
and fix them at 5 mm in thickness gauge.
Loosen
5 mm
