4-1
4
Disassembling/Assembling &
Troubleshooting
4.1 DPM4 Disassembling/Assembling

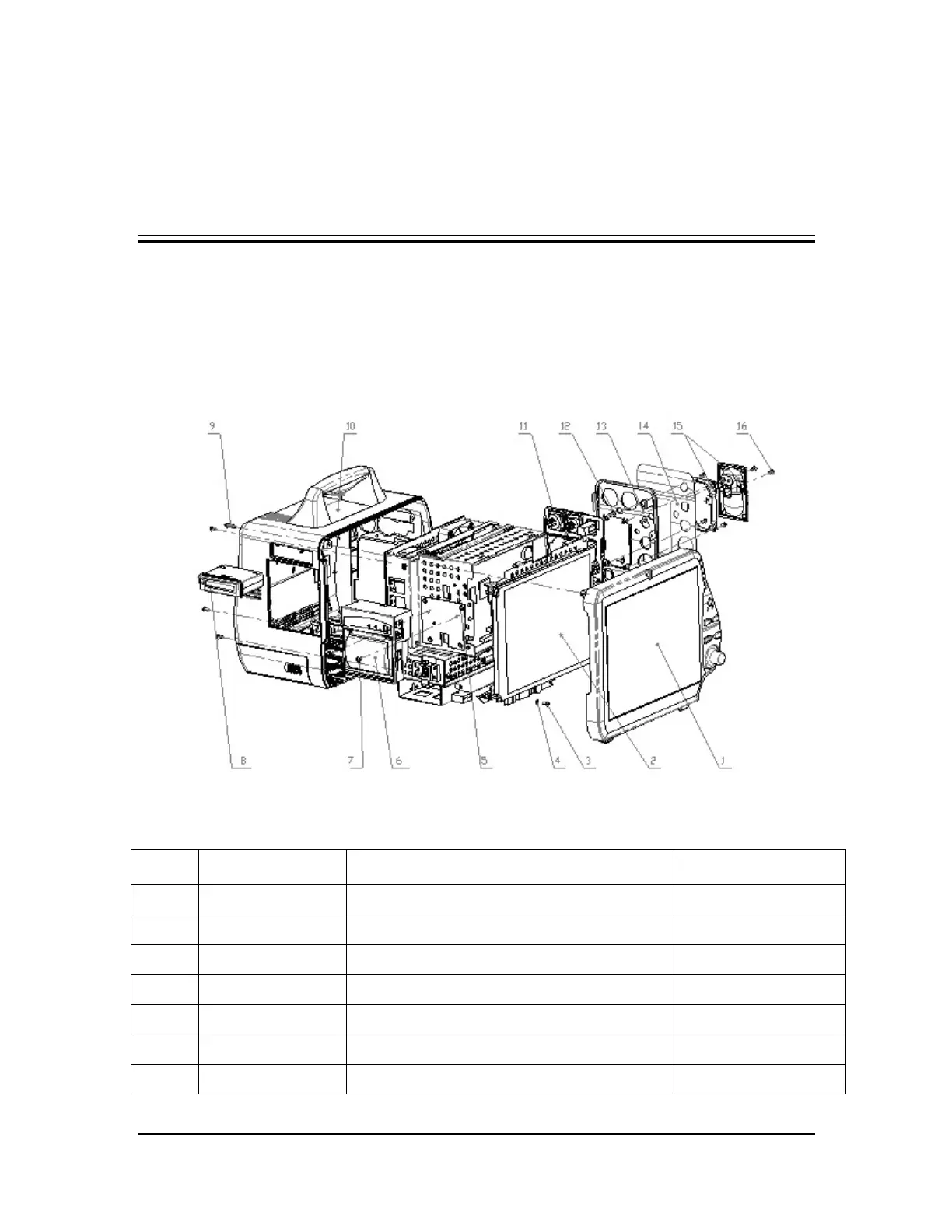

4.1.1 Exploded View of DPM4
Figure
4-1
Exploded
view
o
f
DPM4
NO
Material code
Part & Spec
ification
Quantity
1 1
15-001437-00
Front
bezel
assembly
1
2 8002-30-36161
Screen
assembly
1
3
M04-002505-
--
Cross-head screw M3*6
8
4
M04-000104---
Elastic gask
et GB93 3
2
5 8002-30-36185
Main
Unit
1
6 1
15-000121-00
TR60
Recorder
1
7
M04-004012-
--
Gasketed cros
s-head screw M3*6
2
62
64
Table of Contents
Table of Contents
11
About the Product
15
Introduction
15
Application
15
General
15
Usage
16
Principles
17
General
17
Parameter Measurement
18
Main Control Part
18
Man-Machine Interface
18
Power Supply
19
Other Auxiliary Functions
19
Hardware Description
19
Main Board
20
ECG/RESP/TEMP Module
22
IBP Module
25
Spo 2 Module
27
NIBP Module
29
Recorder Module
31
Button Panel
32
Power PCB
33
Software Description
35
General
35
System Task
36
System Function
37
System Parameter
38
General
38
Ecg/Resp
39
Nibp
40
Spo2
41
Temp
41
Ibp
42
Co2
42
Product Specification
43
Safety Classifications
43
Environmental Specifications
43
Power Source Specifications
44
Hardware Specifications
45
Wireless Network
46
Data Storage
46
Signal Output Specifications
46
ECG Specifications
47
RESP Specifications
54
Spo 2 Specifications
55
NIBP Specifications
57
TEMP Specifications
58
IBP Specifications
59
Specifications
60
Disassembling/Assembling & Troubleshooting
63
DPM4 Disassembling/Assembling
63
Exploded View of DPM4
63
DPM4 Front Bezel Assembly
64
DPM4 Back Housing Assembly (Lithium Battery)
66
Screen Assembly
67
Battery Connector Assembly
68
Parameter Connector Assembly
69
CF Card Assembly
70
Troubleshooting
71
Black Screen, Startup Failure
71
White Screen & Other Abnormal Screen
72
Encoder Faults
72
No Audio Alarm
72
Printing Failure
72
Abnormal Paper Drive
72
Test and Material List
73
Test Procedure
73
Connection and Checking
73
Functions of Buttons
73
Ecg/Resp
73
Temperature
74
Nibp
74
Spo2
75
Ibp
75
Co2
76
Watertrap
76
Recorder
77
Power Supply
77
Clock
77
System Test
77
NIBP Calibration
78
IBP Calibration
79
IBP Transducer Zero
79
DPM4 Material List
83
Maintenance and Cleaning
85
Maintenance
85
Checking before Using
85
Regular Checking
85
Cleaning
86
Cleaning Reagent
86
Disinfection
86
