Mindray DPM 4 Service Manual

5-7
5.3 IBP Calibration
5.3.1 IBP Transducer Zero
Press the ZERO button on the IBP module to call up IBP PRESSURE ZERO menu as shown
below:

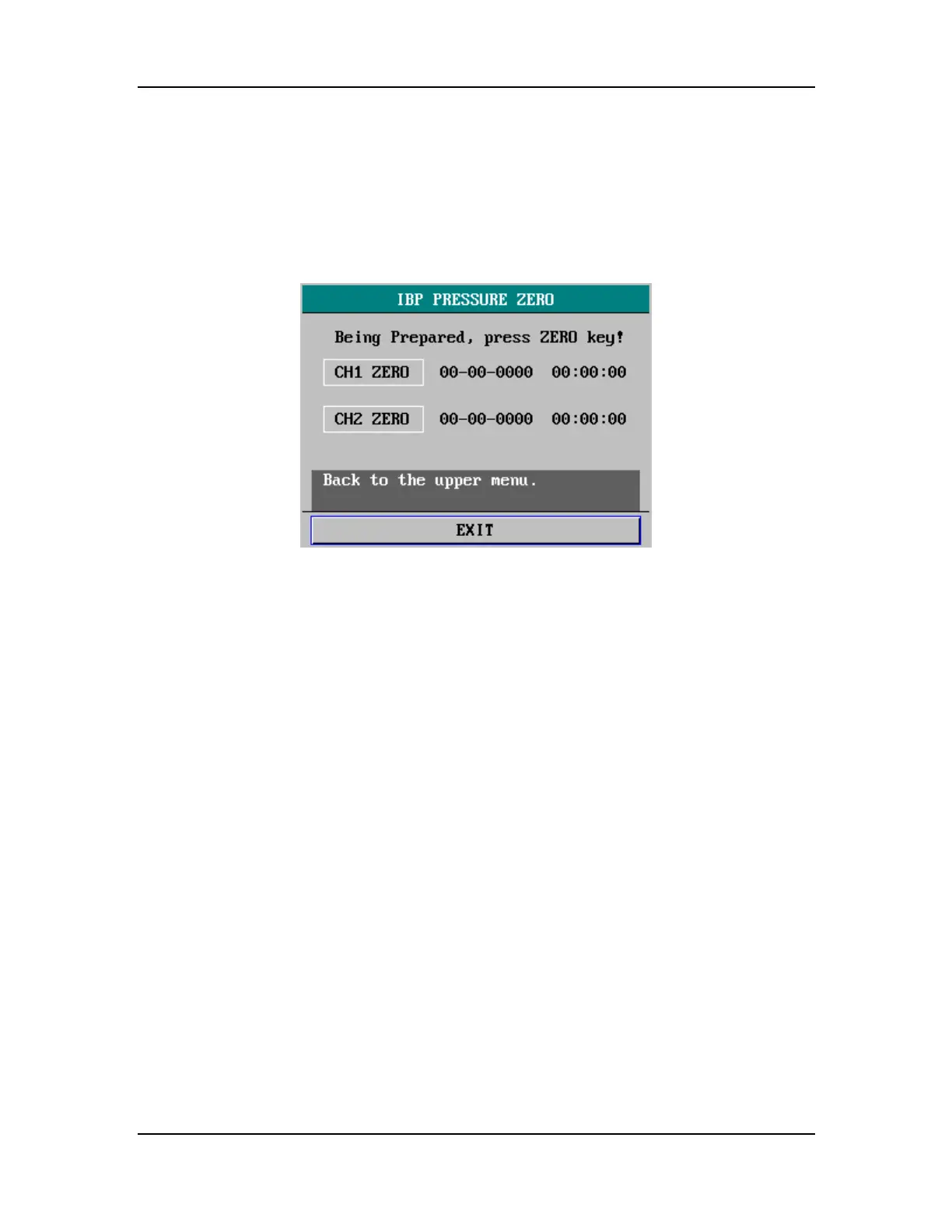

Figure 5-2 IBP PRESSURE ZERO
Zero Calibration of Transducer
Select CH1, the system will zero IBP1. Select CH2, the system will zero IBP2.
Cautions:( Use the PM-6000 IBP module as a example)
 Turn off patient stopcock before you start the zero procedure.
 The transducer must be vented to atmospheric pressure before the zero procedure.
 The transducer should be placed at the same height level with the heart, approximately
mid-axially line.
 Zero procedure should be performed before starting the monitoring and at least once a day
after each disconnect-and-connect of the cable.
