Mindray Passport V Service Manual

Main Unit Assembly Isometric Drawings and Parts List
4 - 4 0070-10-0705 Passport V™ Service Manual
4.3 Main Unit Assembly

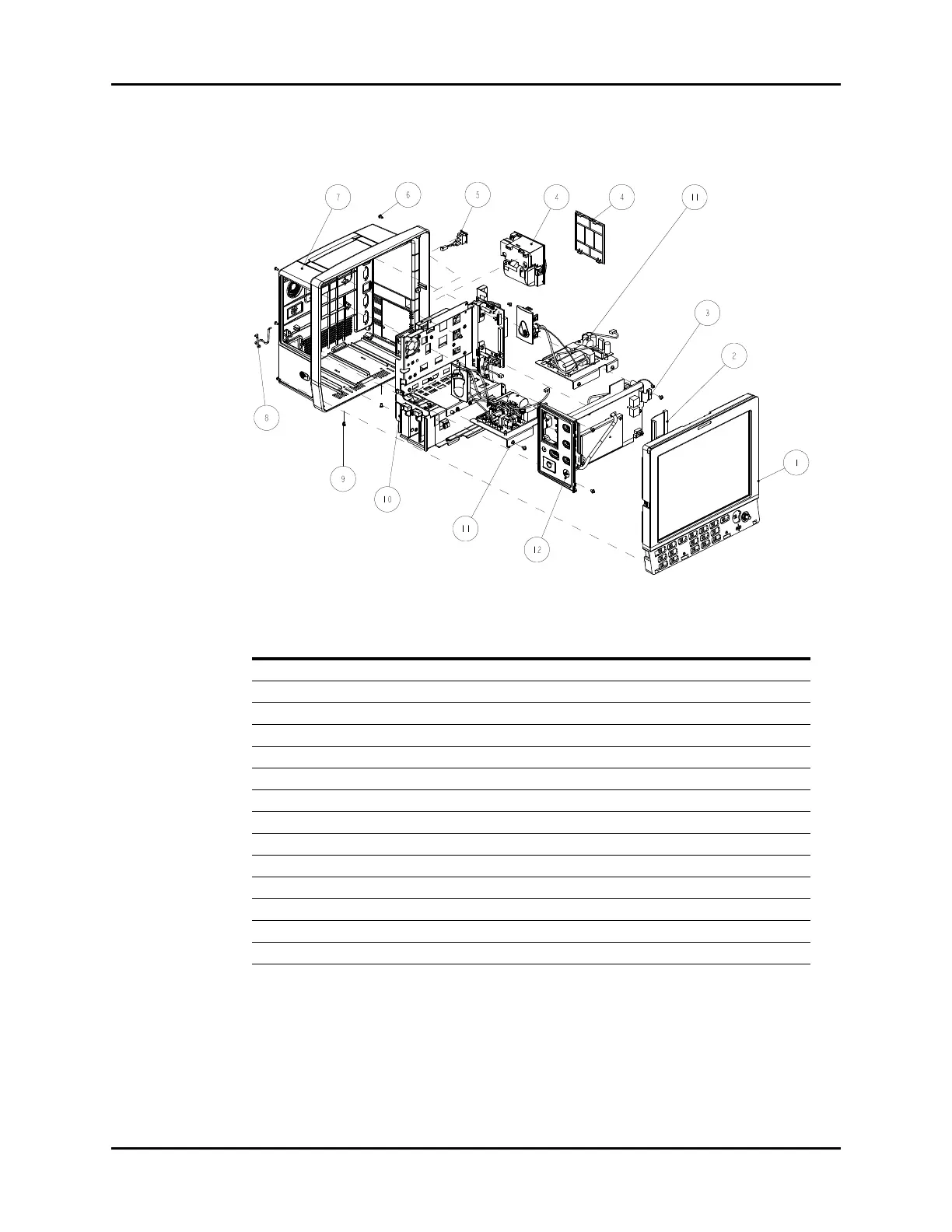

FIGURE 4-2 Main Unit Assembly
ITEM NO DESCRIPTION PART NUMBER
1 Front Housing Sub-assembly N/A
2 Cable Assembly, Parameter board to Mainboard 9211-20-87225
3 Cable Assembly, Parameter board to Interface Board 9211-20-87237
4 Recorder door 043-000184-00
4 Recorder 801-6101-00011-00
5 Power Switch with Cable Assembly 6100-21-86306
6 Screw, Pan Head Phillips M3X6 M04-002505---
7 Sub-assembly, Rear Housing N/A
8 AC Inlet Hook 9211-20-87369
9 Screw, Flat Head Phillips M3X8 M04-000405---
10 Sub-assembly, Main Chassis N/A
11 Microstream CO
2
Module Assembly 801-6100-00029-00
11 DPM CO
2
Module Assembly 801-6100-00030-00
12 Sub-Assembly, Parameter board subassembly N/A
