Mindray Passport V Service Manual

Parameter Sub-assembly Isometric Drawings and Parts List
4 - 10 0070-10-0705 Passport V™ Service Manual
4.8 Parameter Sub-assembly

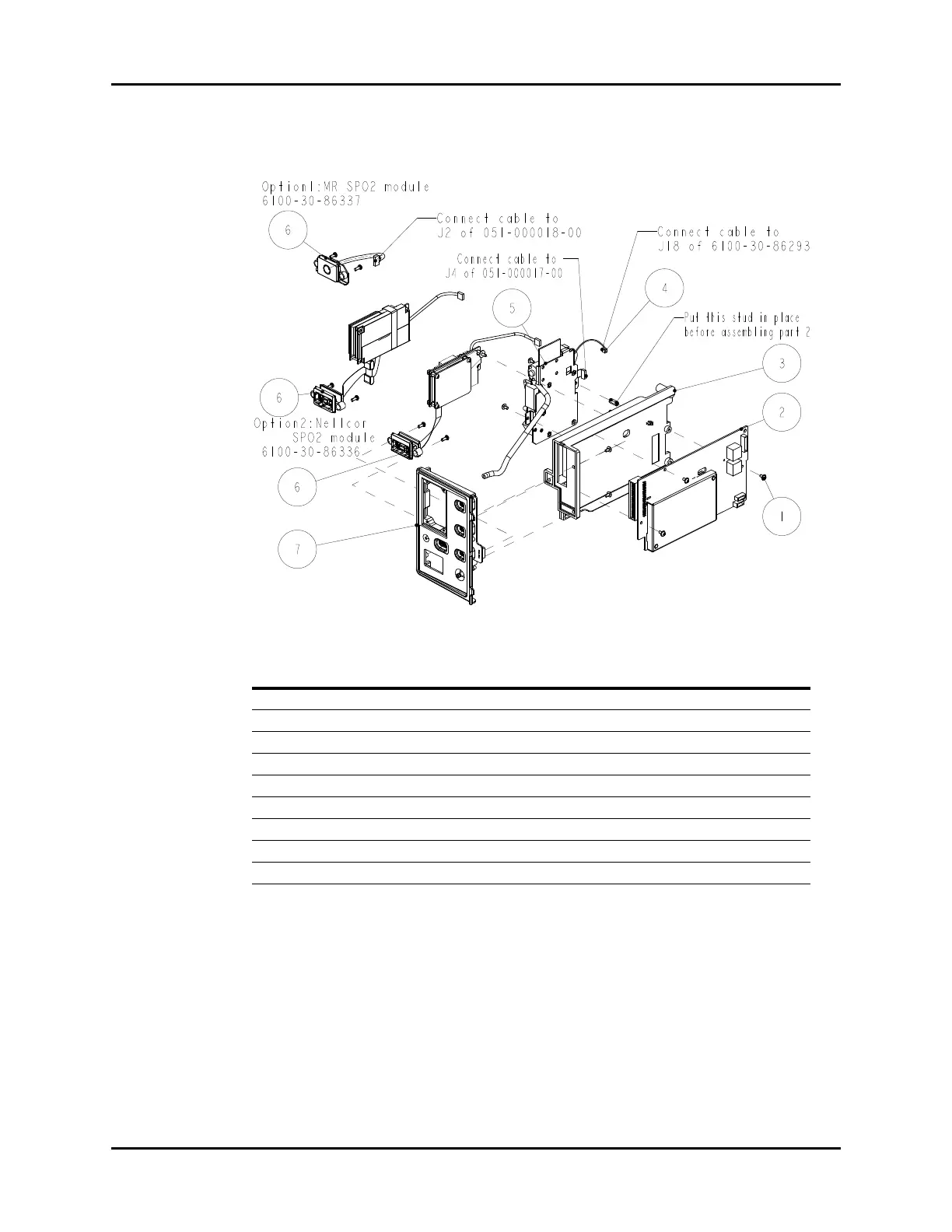

FIGURE 4-7 Parameter Sub-assembly
ITEM NO DESCRIPTION PART NUMBER
1 Screw, Pan Head W/Washer Phillips M3X6 M04-004012---
2 Module, Integrated Parameter 801-6100-00017-00
3 Frame, Parameter Board Mounting 6100-20-86276
4 Cable Assembly, NIBP 6100-20-86305
5 NIBP Module Assembly 801-6100-00026-00
6 Masimo SpO
2
Module Assembly 801-6100-00028-00
6 Nellcor SpO
2
Module Assembly 801-6100-00027-00
6 DPM SpO
2
Module Assembly 801-6100-00024-00
7 Sub-assembly, Patient Connector 801-6100-00018-00
