Mindray VS-900 Service Manual

8-6

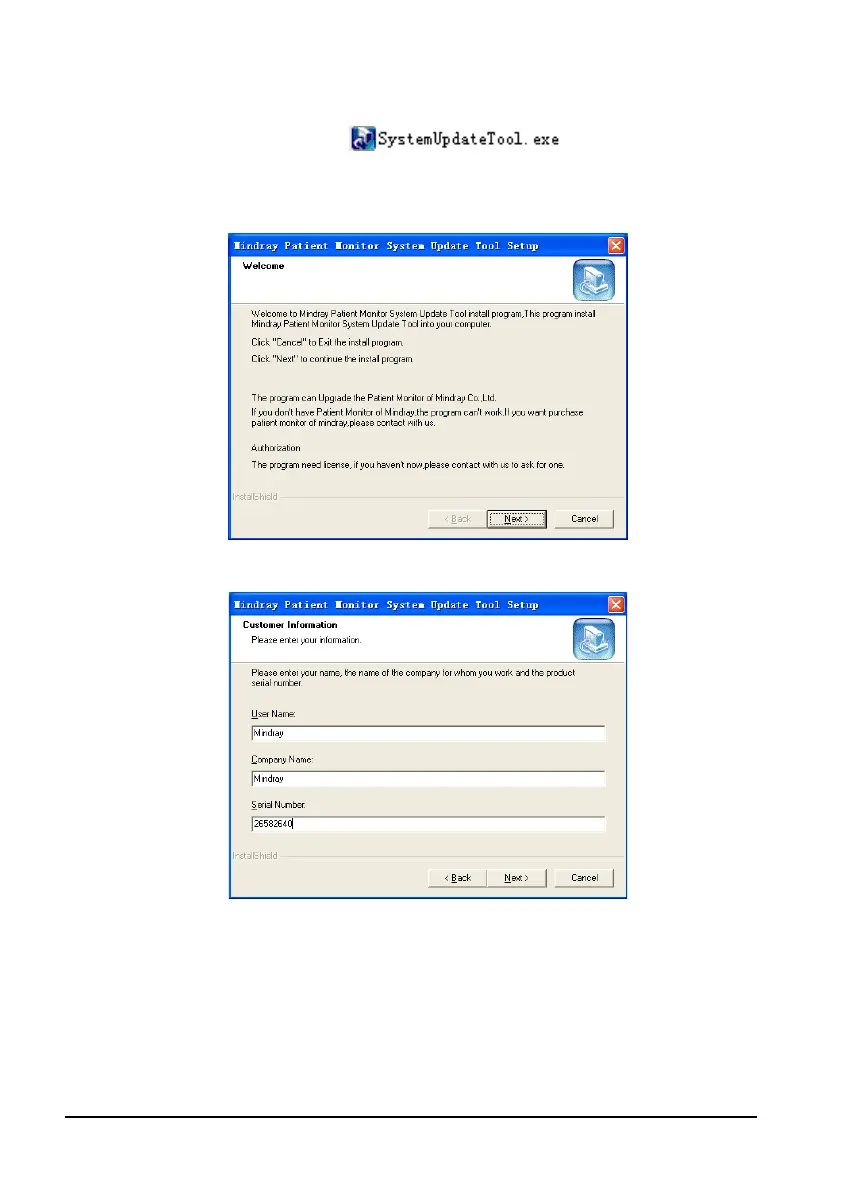

8.2.1 Installing Mindray Patient Monitor Software Upgrade Tool
1. Find the installation program and double click it to
start installation.
2. Select language.
3. Click [Ok] and the following screen is displayed. Click [Next] to go to the next step.
4. Enter User Name, Company name, and Serial Number "26582640". Then click [Next].

Mindray VS-900 Specifications

General

RESP	Impedance Respiration
Display Size	12.1 inch
Parameters	ECG, SpO2, NIBP, RESP, TEMP
ECG	3-lead or 5-lead ECG monitoring
IBP	Optional, up to 2 channels
CO2	Optional, Sidestream or Mainstream CO2 monitoring
AG	O2, N2O, CO2
ANES	Multiple anesthetic agents
Connectivity	Ethernet, USB
Power Supply	AC power and battery
