Mircom FA-200 Series User Manual

Modules Mounting Locations
8

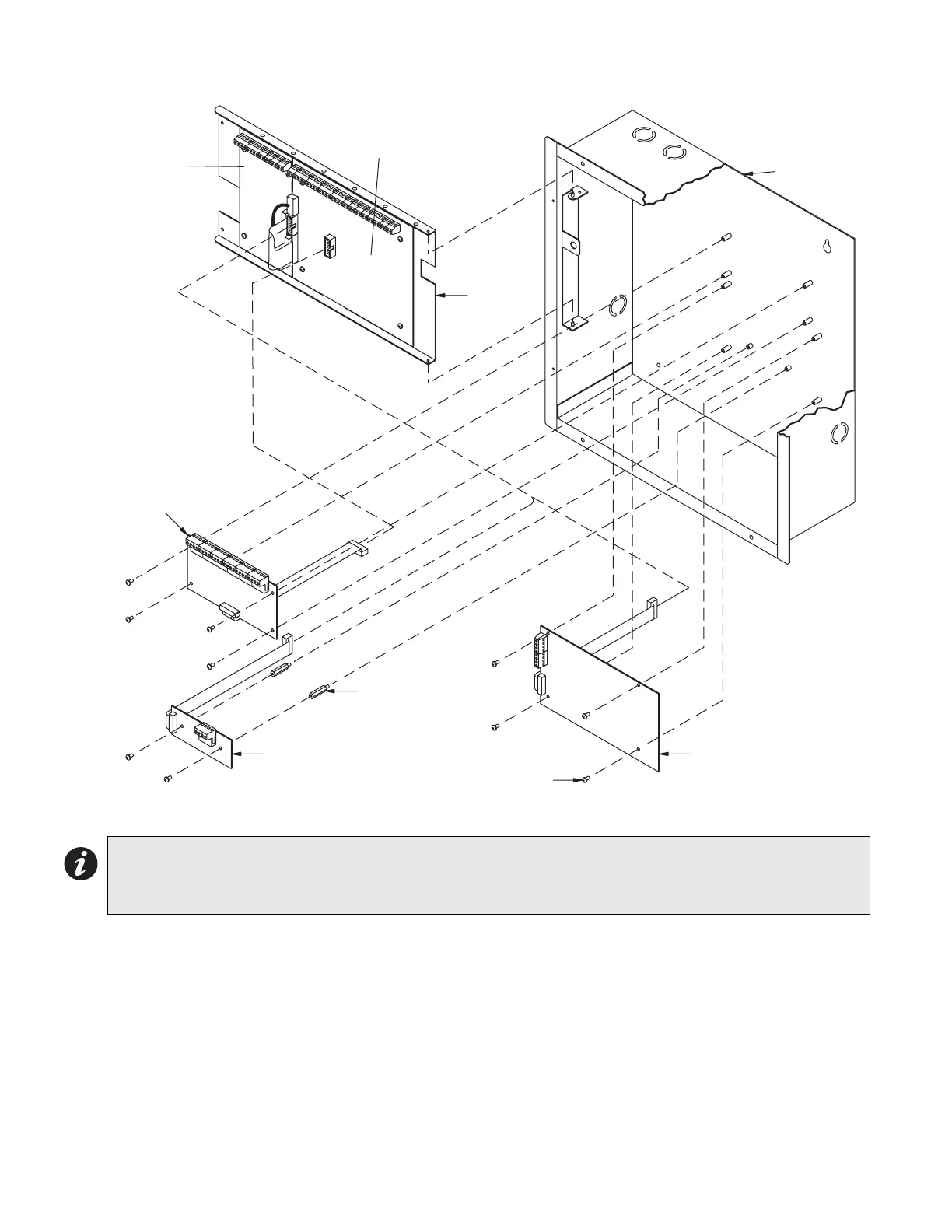

Figure 4: FA-204E Module Mounting Locations
Notes:
1. Relay module may be model RM-204 or RM-208.
2. Only one of PR-100 or DACT-100A may be installed.
P8
P7
SEE NOTE 2
(MODEL DACT-100A)
DIALER MODULE
SEE NOTE 2
(MODEL PR-100)
POLARITY REVERSAL AND
CITY TIE MODULE
M/F HEX SPACER
#6-32 x 7/8"
SCREW
#6-32 x 1/4"
DISPLAY
PLATE
BACKBOX
ZONE ADDER
MODULE
(DM-204)
MAIN FIRE
ALARM
MODULE
RELAY MODULE
(NOTE 1)
P1
P6
