Mircom FA-200 Series - System Components; Chassis

FA-200 Series Installation and Operation Manual
3

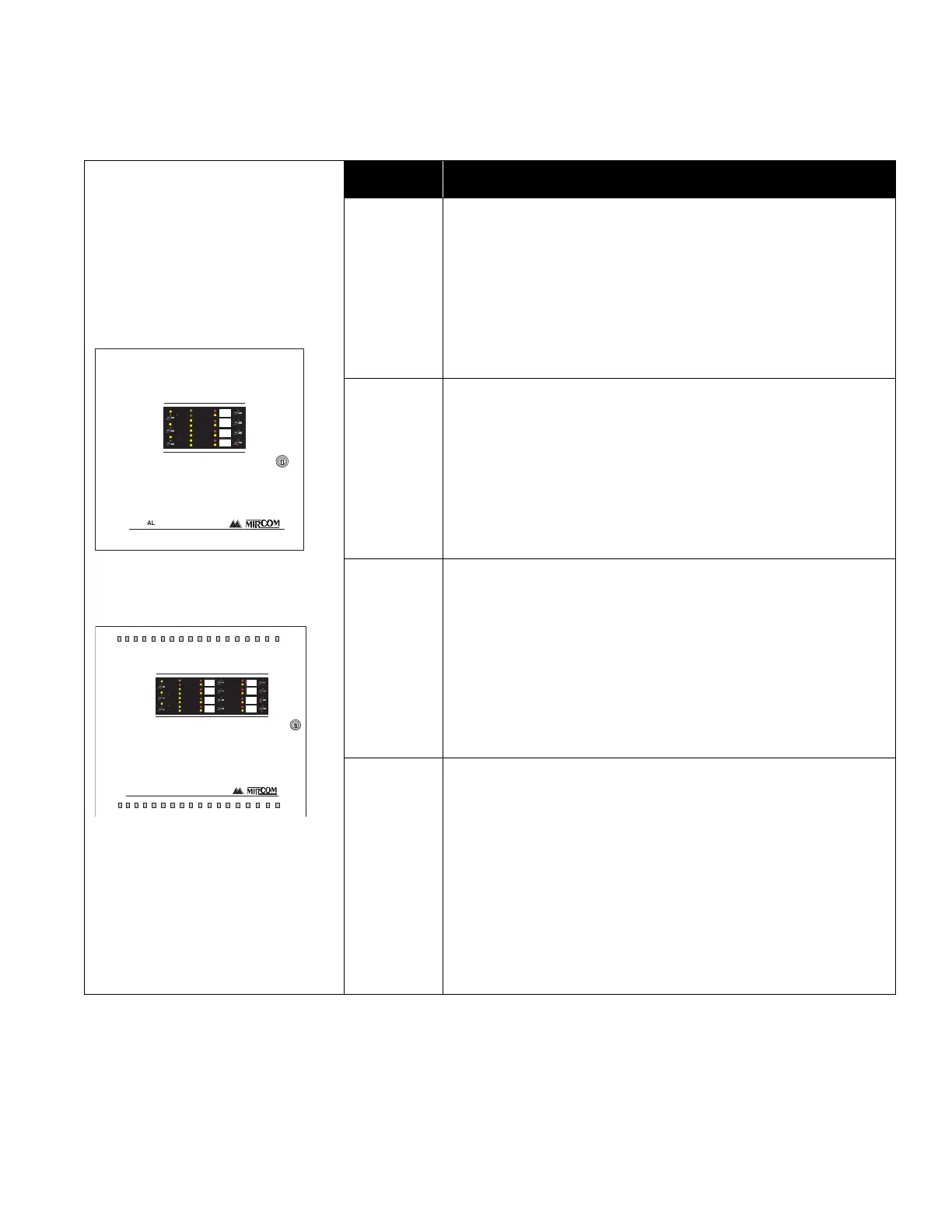

System Components
Chassis
Model Description
FA-201
Small enclosure fire alarm control panel with one Class B (Style
B) Initiating circuit, and two power limited Class B (Style Y)
indicating circuits (1.70 amperes each, 2.4 amperes total) with
individual trouble indicators. Common alarm & trouble relays.
Interface for remote trouble indicator. Resettable four-wire
smoke detector power supply. May have one of DACT-100A,
PR-100, RM-204, or RM-208 installed. Can be used with BA-
104 (four amp-hour) or BA-1065 (6.5 amp-hour) batteries (two
required).
FA-202
Small enclosure fire alarm control panel with two Class B (Style
B) or one Class A (Style D) Initiating Circuits, and 2 Power
Limited Class A/B (Style Z/Y) Indicating Circuits (1.70 amperes
each, 2.4 amperes total) with individual trouble indicators.
Common Alarm & Trouble Relays. Interface for Remote
Trouble Indicator. Resettable Four Wire Smoke Detector Power
Supply. May have one of DACT-100A, PR-100, RM-204, or
RM-208 installed. Can be used with BA-104 (4 amp-hour) or
BA-1065 (6.5 amp-hour) batteries (2 required).
FA-204
Small enclosure Fire Alarm Control Panel with four Class B
(Style B) or two Class A (Style D) Initiating Circuits, and 2
Power Limited Class A/B (Style Z/Y) Indicating Circuits (1.70
amperes each, 2.4 amperes total) with individual trouble
indicators. Common Alarm & Trouble Relays. Interface for
Remote Trouble Indicator and/or 1 to 3 of RAM-208 Remote
Multiplex Annunciators. Resettable Four Wire Smoke Detector
Power Supply. May have one of DACT-100A, PR-100, RM-204,
or RM-208 installed. Can be used with BA-104 (4 amp-hour) or
BA-1065 (6.5 amp-hour) batteries (2 required).
FA-204E
Large enclosure Fire Alarm Control Panel with four Class B
(Style B) or two Class A (Style D) Initiating Circuits, and 2
Power Limited Class A/B (Style Z/Y) Indicating Circuits (1.70
amperes each, 5 amperes total) with individual trouble
indicators. Common Alarm & Trouble Relays. Interface for
Remote Trouble Indicator and/or 1 to 3 of RAM-208 Remote
Multiplex Annunciators. Resettable Four Wire Smoke Detector
Power Supply. May have one of DACT-100A or PR-100, and
one DM-204 installed. May also have one of RM-204 or RM-
208 installed. Can be used with BA-104 (4 amp-hour), BA-
1065 (6.5 amp-hour), or BA-110 (10 amp-hour) batteries (2
required).
FIRE ALARM CONTROL
;
FIRE
DRILL
;
SIGNAL
SILENCE
;
AUXILIARY
DISC.
A.C. ON
COMMON
ALARM
COMMON
SUPERVISORY
COMMON
TROUBLE
BATTERY
TROUBLE
GROUND
FAULT
REMOTE
TROUBLE
TEST/CONFIG.
;
DISC. 1
ZONE 1
ZONE 2
ZONE 3
ZONE 4
;
DISC. 2
;
DISC. 3
;
DISC. 4
;;
DISC. 5
ZONE 5
ZONE 6
ZONE 7
ZONE 8
;;
DISC. 6
;;
DISC. 7
;;
DISC. 8
FIRE ALARM CONTROL
;
FIRE
DRILL
;
SIGNAL
SILENCE
;
AUXILIARY
DISC.
A.C. ON
COMMON
ALARM
COMMON
SUPERVISORY
COMMON
TROUBLE
BATTERY
TROUBLE
GROUND
FAULT
REMOTE
TROUBLE
TEST/CONFIG.
;
DISC. 1
ZONE 1
ZONE 2
ZONE 3
ZONE 4
;
;
DISC. 2
;
DISC. 3
;
DISC. 4
