2.4.3 Connection of the Speed Command Synchronization Control System
Connecting the position command synchronous control system, connect each system as an independent axis.

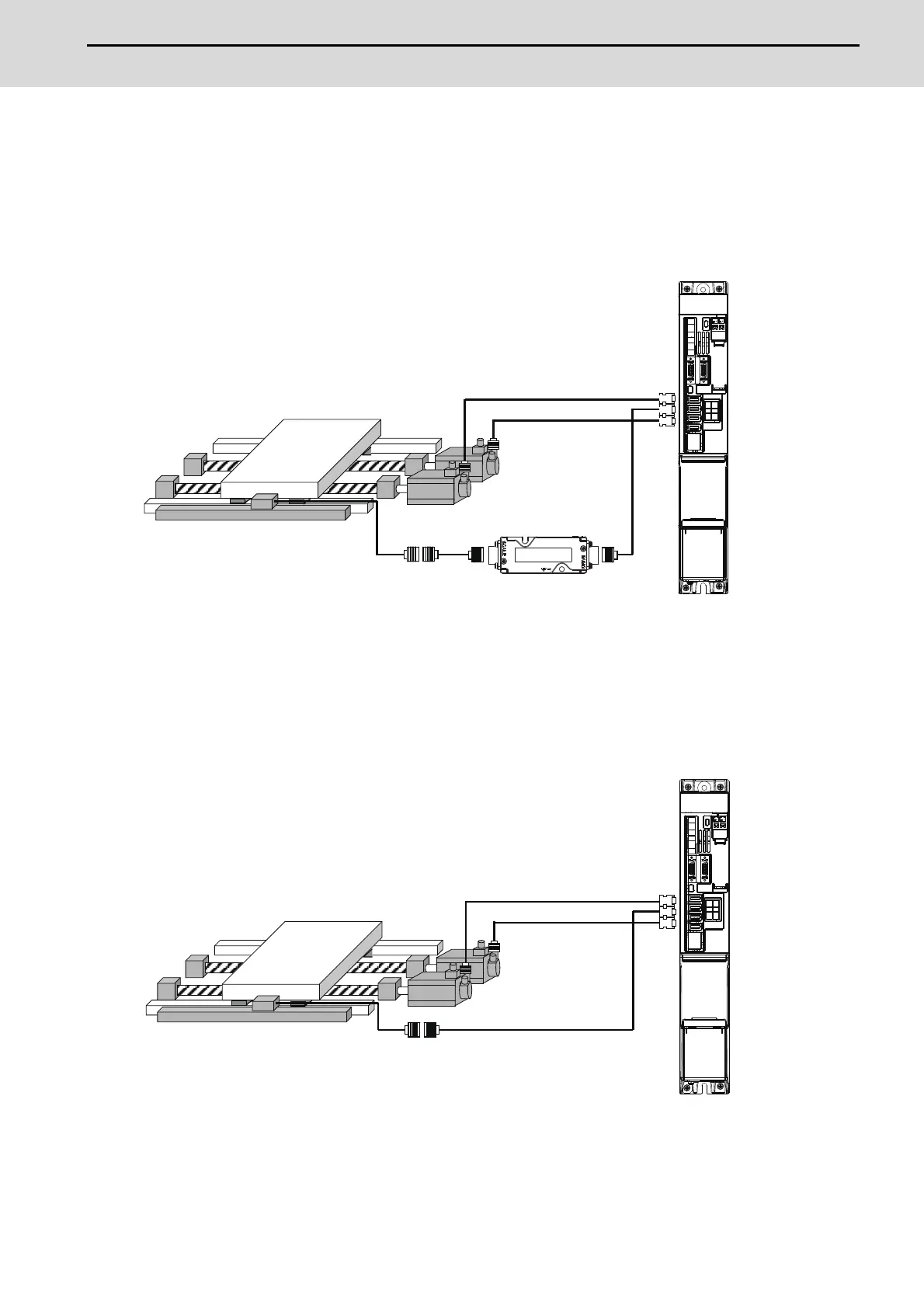

(1) Connecting SIN wave signal output linear scale (when using MDS-E/EH-V2)
For the FB signal of the linear scale, the SIN wave signal is converted to Mitsubishi serial signal with the encoder
conversion unit (MDS-EX-HR-11), and that signal is divided to each axis control inside the 2-axis drive unit.
(2) Connecting Mitsubishi serial signal output linear scale (when using MDS-E/EH-V2)
The FB signal of the linear scale is divided to each axis control inside the 2-axis drive unit. An external option unit is
not required.
MDS-E/EH-V2
CN2M
CN2L
CN3L
MDS-EX-HR-11
Cable
prepared
by user
Linear scale
( SIN wave signal output )
Encoder type setting
Primary axis: SV025=A2xx
Secondary axis: SV025=D2xx
CNV2E cable
Max. 30m
CNV2E cable
Max. 30m
CNV2E-HP
cable
Max. 30m
Primary axis
Secondary axis
Encoder conversion unit
CN2M
CN2L
CN3L
MDS-E/EH-V2
Cable prepared by user
Max. 30m
Linear scale
( Mitsubishi serial signal output )
Encoder type setting
Primary axis: SV025=A2xx
Secondary axis: SV025=D2xx
CNV2E cable
Max. 30m
Primary axis
Secondary axis
CNV2E cable
Max. 30m
