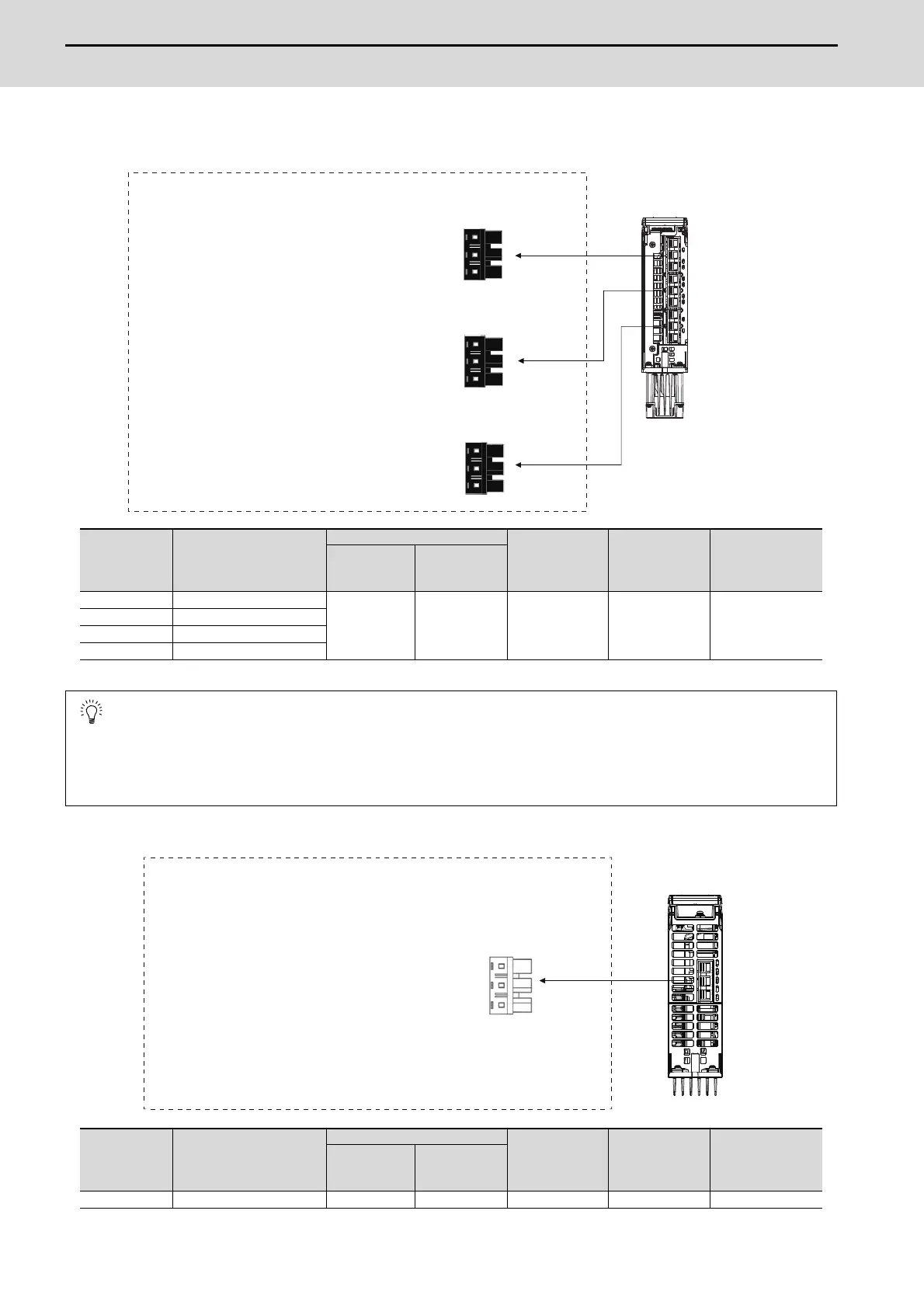

2.2.3 Servo Motor Power Supply Connector Wiring Method
(1) Connector configuration
(2) Power supply unit power supply connectors (Only for MDS-E-CV-37/75)
Axis name Connector model name
Applicable cable
Strip length
[mm]
Connection
lever
Manufacturer
Size
Insulator
outer
dimension
L axis CNU01SEL (AWG14)
AWG16 to 8 7.8mm or less 12mm J-FAT-OT-P J.S.T
M axis CNU01SEM (AWG14)
S axis CNU01SES (AWG14)
Common CNU01SEF (AWG14)
POINT
The servo motor power supply connector is equipped with an anti-misinsertion mechanism, and can be connected only to
the power supply output of each certain axis. The connector without the anti-misinsertion mechanism (CNU01SEF
(AWG14)) can be connected to the power supply output of all axes.
Axis name Connector model name
Applicable cable
Strip length
[mm]
Connection
lever
Manufacturer
Size
Insulator
outer
dimension
For CV CNU01SECV (AWG14) AWG16 to 8 7.8mm or less 12mm J-FAT-OT-P J.S.T
CNU01SEL
CNU01SEM
CNU01SES
Drive unit
Connector for L axis
Connector for M axis
< Applicable cable example >
Cable finish OD：to 䪻7.8mm
(for 3-axis)
(For L axis)
(For M axis)
(For S axis)
Connector for S axis
CNU01SECV
Power supply unit
(MDS-E-CV-37/75 only)
Connector for
CV
< Applicable cable example >
Cable finish OD：to 䪻7.8mm
