MDS-E/EH Series Instruction Manual
1 Installation
6
IB-1501229-F

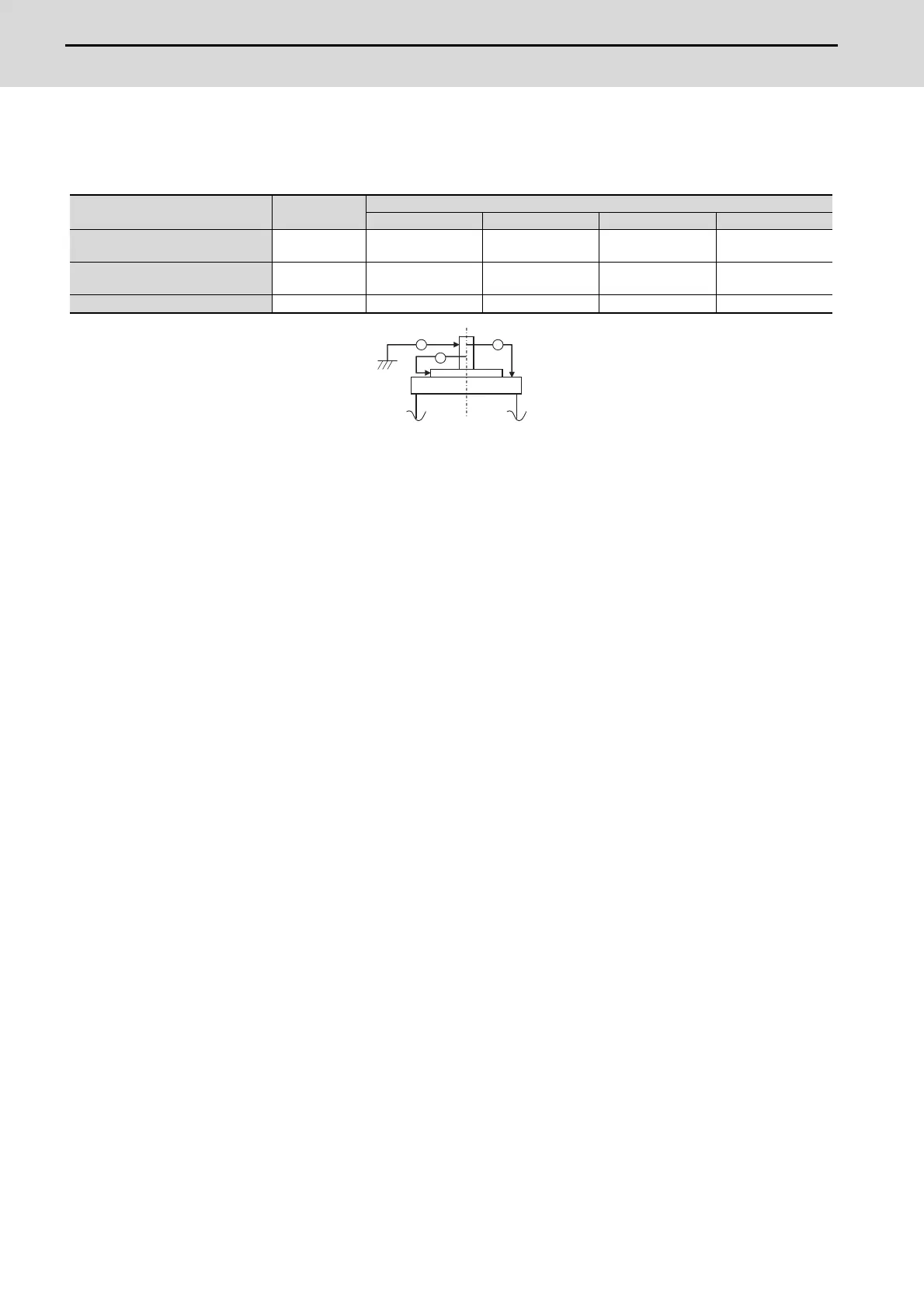

1.1.6 Machine Accuracy
Machine accuracy of the servo motor's output shaft and around the installation part is as below.
(Excluding special products)
Accuracy
Measurement
point
Flange size [mm]
Less than 100 SQ. 100 SQ., 130 SQ. 176 SQ. - 250 SQ. 280 SQ. or over
Run-out of the flange surface to
the output shaft
a 0.05mm 0.06mm 0.08mm 0.08mm
Run-out of the flange surface's
fitting outer diameter
b 0.04mm 0.04mm 0.06mm 0.08mm
Run-out of the output shaft end c 0.02mm 0.02mm 0.03mm 0.03mm
a c
b
