MDS-E/EH Series Instruction Manual
1 Installation
3
IB-1501229-F
1.1.2 Quakeproof Level

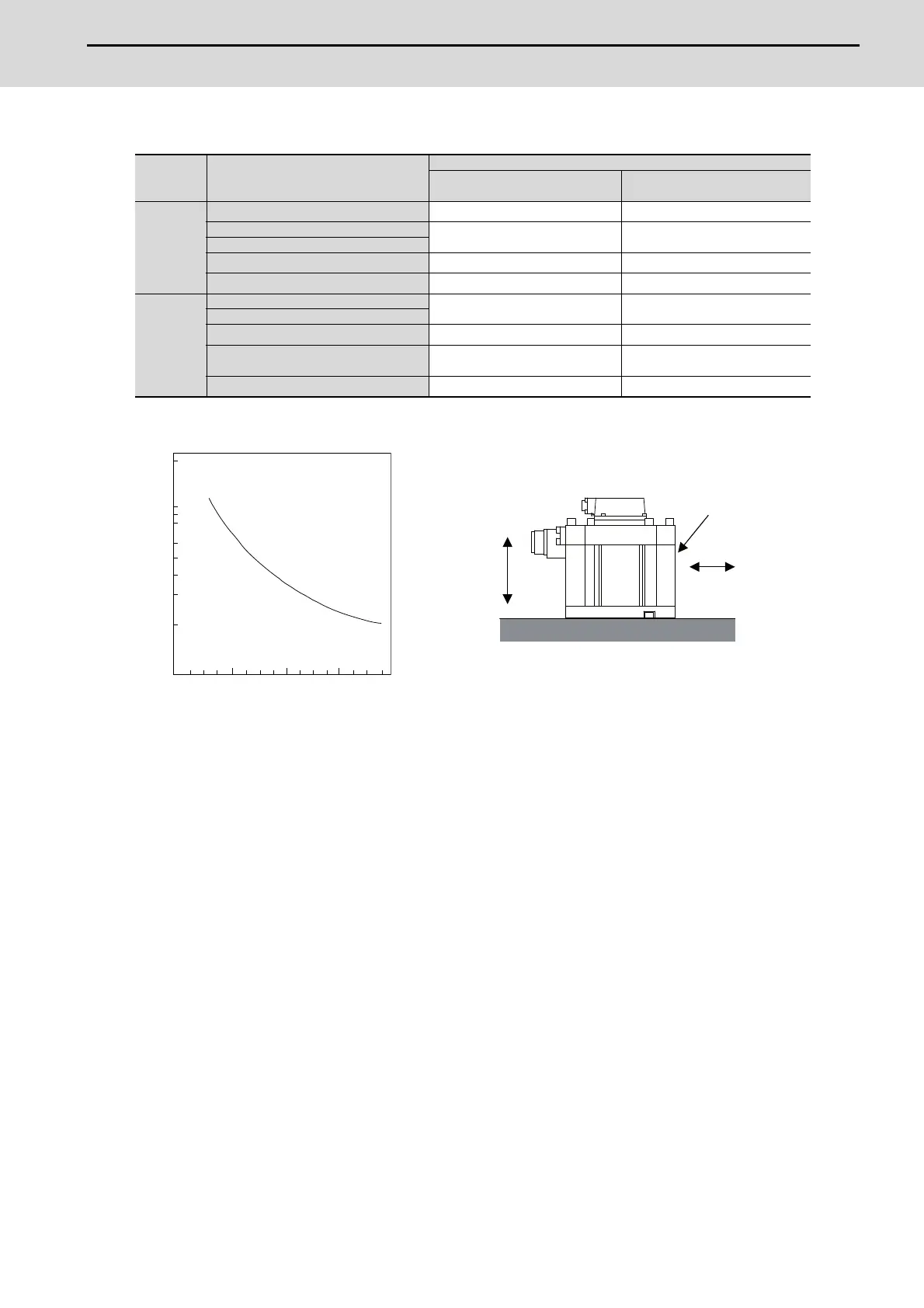

The vibration conditions are as shown below.
Series Motor type
Acceleration direction
Axis direction (X)
Direction at right angle to axis
(Y)
200V
series
HG46, 56, 96
49m/s
2
(5G) or less 49m/s
2
(5G) or less
HG75, 105
24.5m/s
2
(2.5G) or less 24.5m/s
2
(2.5G) or less
HG54, 104, 154, 224, 123, 223, 142
HG204, 354, 303, 453, 703, 302
24.5m/s
2
(2.5G) or less 29.4m/s
2
(3G) or less
HG903
9.8m/s
2
(1G) or less 9.8m/s
2
(1G) or less
400V
series
HG-H75, 105
24.5m/s
2
(2.5G) or less 24.5m/s
2
(2.5G) or less
HG-H54, 104, 154
HG-H204, 354, 453, 703
24.5m/s
2
(2.5G) or less 29.4m/s
2
(3G) or less
HG-H903
HQ-H903, 1103
9.8m/s
2
(1G) or less 9.8m/s
2
(1G) or less
HG-H1502
24.5m/s
2
(2.5G) or less 24.5m/s
2
(2.5G) or less
Speed (r/min)
0
1000
2000
3000
Vibration amplitude (double-sway width) (
µ
m)
20
30
40
50
60
80
100
200
Y
X
Servo motor
Acceleration
