MDS-E/EH Series Instruction Manual
1 Installation
27
IB-1501229-F
1.4.2 Installation Direction and Clearance
Wire each unit in consideration of the maintainability and the heat dissipation, as well as secure sufficient space for
ventilation.

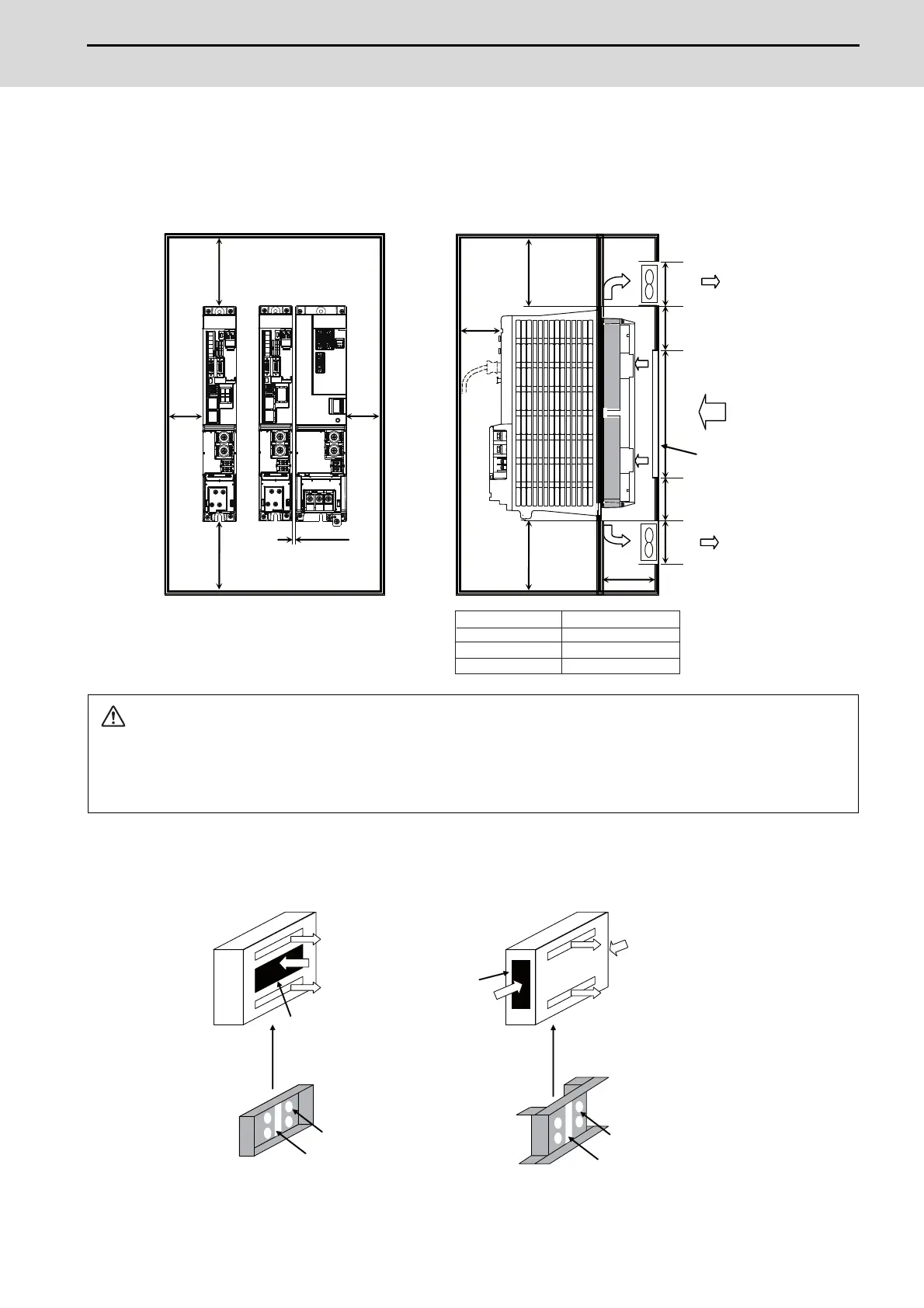

Installation clearance
Panel structure of the unit back face
The type ‘(a)’ that has substantial cooling effect is recommended.
CAUTION
1. The ambient temperature condition for the power supply unit or the drive units is 55°C or less.
2. Because heat can easily accumulate in the upper portion of the units, give sufficient consideration to heat dissipation
when designing the panel. If required, install a fan in the panel to agitate the heat in the upper portion of the units.
60mm/67mm
75mm
92mm
A
Exhaust
Inlet
Filter
100mm
or more
1mm or more
60mm
260
mm
100mm
or more
10mm
or
more
10mm
or
more
80mm
or more
100mm
or more
100mm
or more
60mm
or
more
60mm
or
more
60mm
Exhaust
75mm or more
80mm or more
114mm or more
Radiation fin size Installation clearance A
Filter
(a) Back face inlet type
Cooling will be more high-
efficiency by installing a partition
plate inside to separate inlet and
exhaust.
Fan inlet hole
(b) Side face inlet type
Filter
Install a partition plate inside
to separate inlet and exhaust.
Fan inlet hole
For MDS-E-V3-80/EH-V3-40,
open this part and enter the fins
through the hole.
For MDS-E-V3-80/EH-V3-40,
open this part and enter the fins
through the hole.
