MDS-E/EH Series Instruction Manual
4 Setup
113
IB-1501229-F
< Power supply unit >
MDS-E/EH-CV setting
4.1.2 Setting DIP Switch
Setting the DIP switches is necessary prior to turning ON the power. Setting of the DIP switches at the time of turning ON
the power is validated. The DIP switches shall be as the standard setting (all the switches OFF).
Rotary switch setting Setting items
0 Normal setting
1 to 3 Setting prohibited
4 External emergency stop setting
5 to F Setting prohibited
CAUTION
An axis set unused is not included in the functional safety.
Power supply unit
(MDS-E/EH-CV)

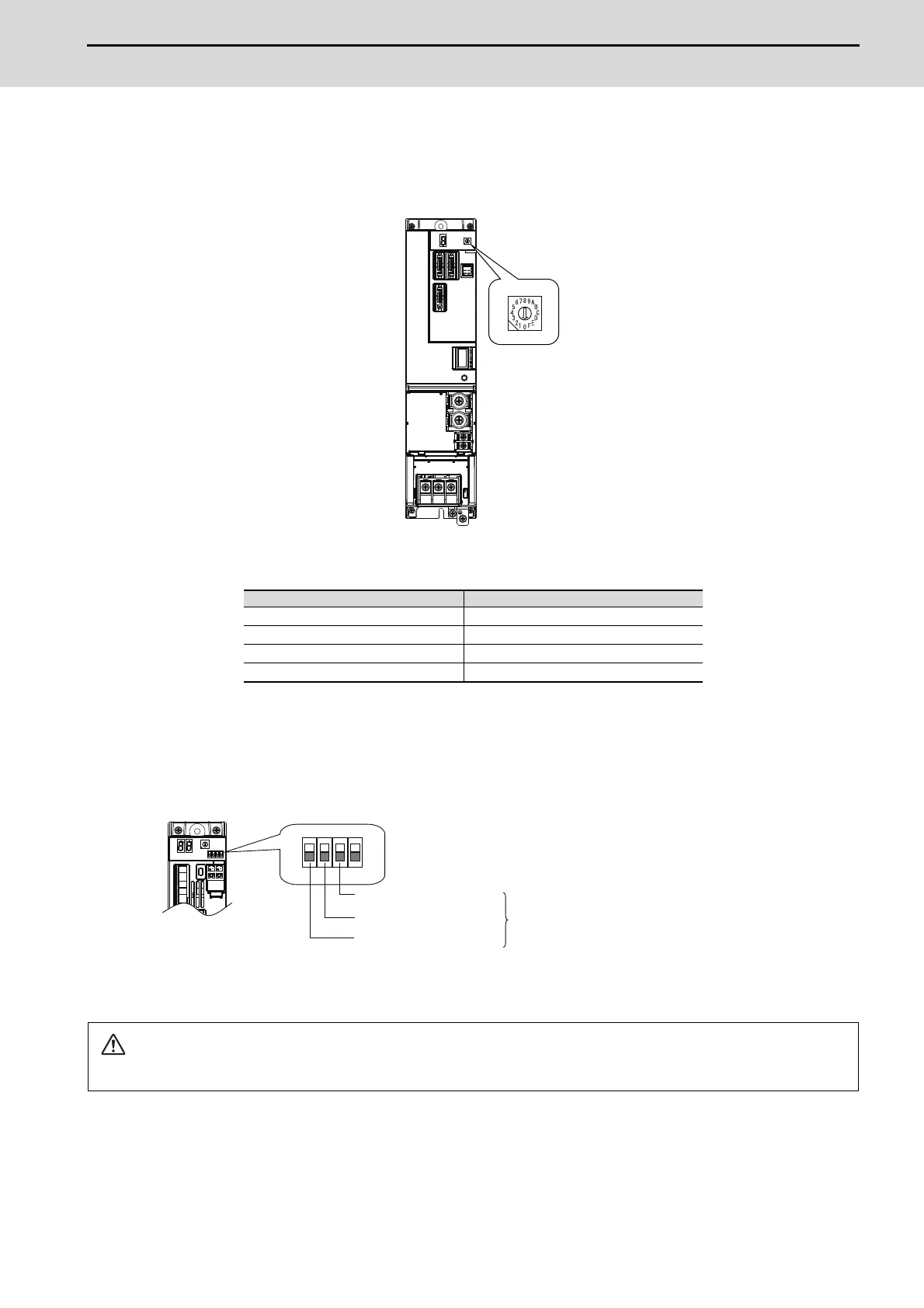

The switches are OFF when facing bottom as illustrated.
M axis Setting unused axis
L axis Setting unused axis
S axis Setting unused axis
Unused axis can be set by turning the switches ON.
When there is unused axis for the drive unit,
set unused axis.
To Next Page
