Mitsubishi Electric MDS-E Series User Manual

MDS-E/EH Series Instruction Manual
14 Appx. 5: EMC Installation Guidelines
506
IB-1501229-F

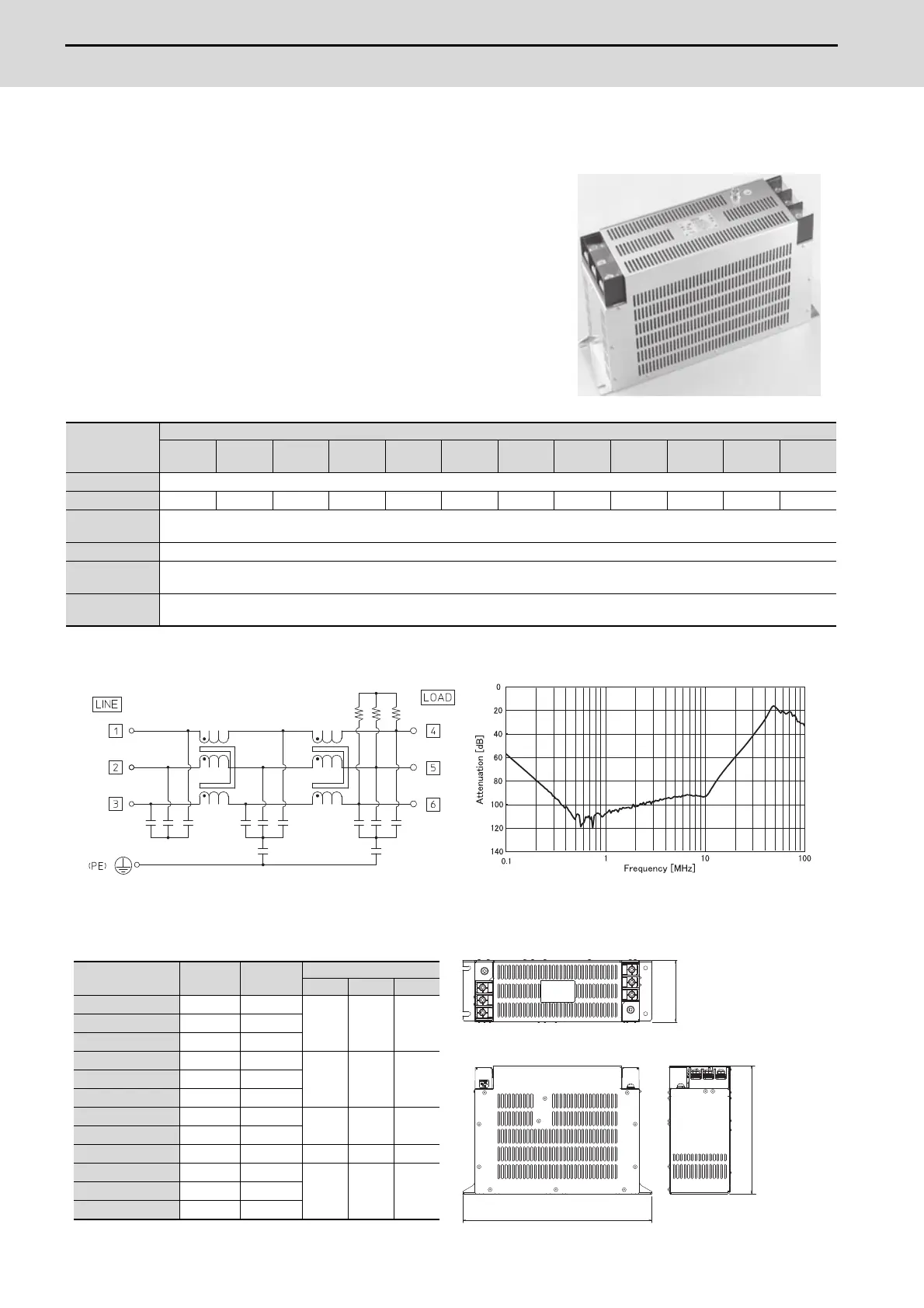

14.6.3 Power Line Filter
HF3000C-SZA Series for 200V/400V
■ Features
(a) 3-phase 3-wire type (500V series)
(b) Compatible with 200V/400V
(c) Compliant with EU Standards EN55011 (Group 1 Class A)
(d) Downsized for the space-saving book type
■ Application
(a) Applications such as large machine tool, inverter, servo, etc.
■ Specifications
■ Outline dimensions
Part name
HF3000C-SZA Series
HF3010
C-SZA
HF3020
C-SZA
HF3030
C-SZA
HF3040
C-SZA
HF3050
C-SZA
HF3060
C-SZA
HF3080
C-SZA
HF3100
C-SZA
HF3150
C-SZA
HF3200
C-SZA
HF3250
C-SZA
HF3300
C-SZA
Rated voltage 3-phase 3-wire type 500VAC (530VAC max 50/60Hz)
Rated current 10A 20A 30A 40A 50A 60A 80A 100A 150A 200A 250A 300A
Leakage
current
7mA max 400VAC 50Hz(by UL1283)
Ambient temp -20 to 50°C
Safety
standards
CSA, UL1283/EN60939-2
Vibration
Resistance
Frequency: 10Hz to 55Hz Acceleration rate: 9.8m/s
2
< Circuit diagram > < Attenuation > Typical example: HF3150C-SZA
Model
Rated
current
Mass
(typ.)
Dimension [Unit:mm]
W D H
HF3010C-SZA 10A 0.9kg
220 66 78
HF3020C-SZA 20A 1.3kg
HF3030C-SZA 30A 1.3kg
HF3040C-SZA 40A 2.0kg
270 80 84
HF3050C-SZA 50A 2.0kg
HF3060C-SZA 60A 2.1kg
HF3080C-SZA 80A 5.4kg
310 100 210
HF3100C-SZA 100A 5.8kg
HF3150C-SZA 150A 9.0kg 395 110 230
HF3200C-SZA 200A 11kg
400 120 260
HF3250C-SZA 250A 12kg
HF3300C-SZA 300A 13kg
㻌㼃
㻰㻌
㻴㻌
