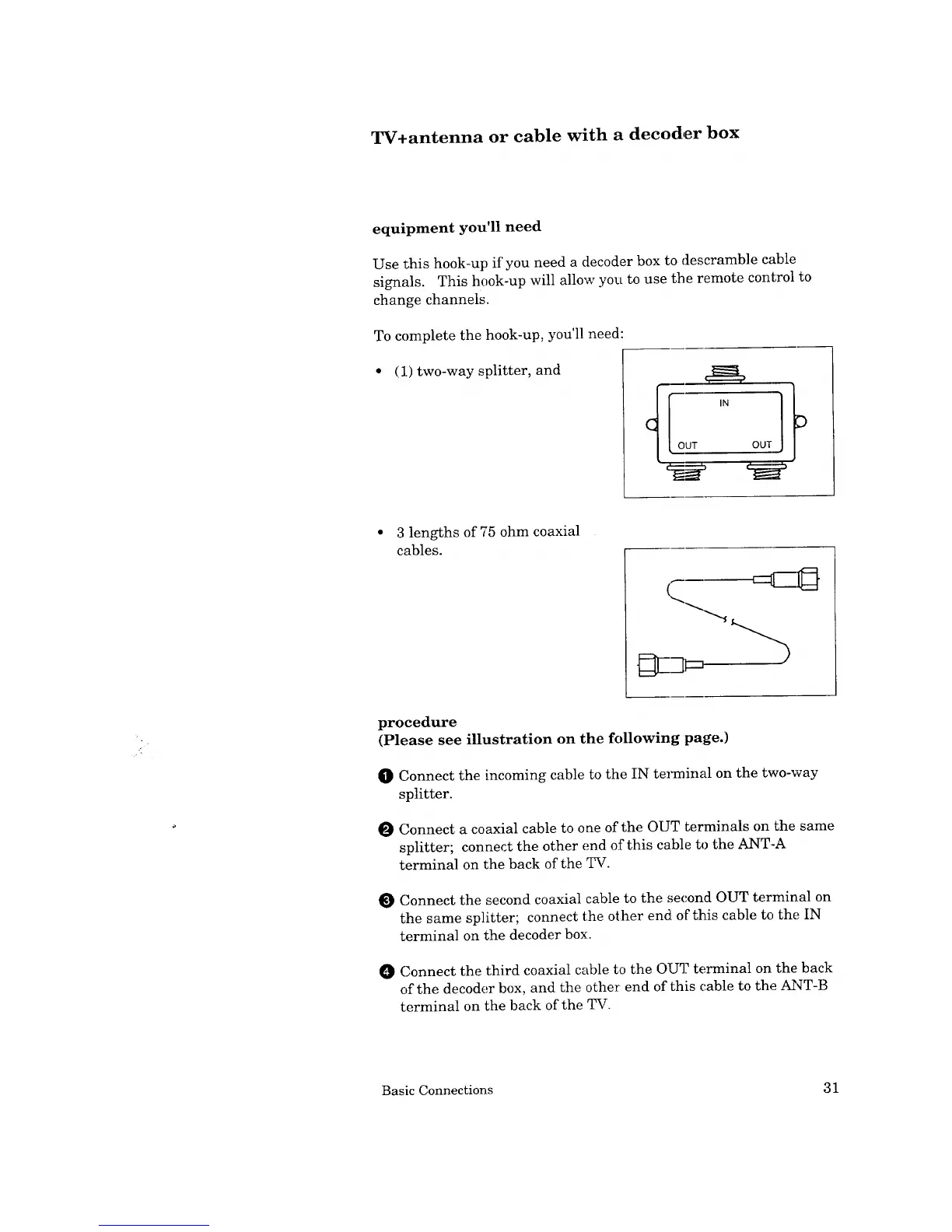

TV+antenna or cable with a decoder box
equipment you'll need
Use this hook-up if you need a decoder box to descramble cable
signals. This hook-up will allow you to use the remote control to
change channels.
To complete the hook-up, you'll need:
(1) two-way splitter, and
3 lengths of 75 ohm coaxial
cables.
Ij
procedure
(Please see illustration on the following page.)
O Connect the incoming cable to the IN te1_ninal on the two-way
splitter.
O Connect a coaxial cable to one of the OUT terminals on the same
splitter; connect the other end of this cable to the ANT-A
terminal on the back of the TV.
Connect the second coaxial cable to the second OUT terminal on
the same splitter; connect the other end of this cable te the IN
terminal on the decoder box.
Connect the third coaxial cable to the OUT terminal on the, back
of the decoder box, and the other end of this cable to the ANT-B
terminal on the back of the TV.
Basic Connections 31
