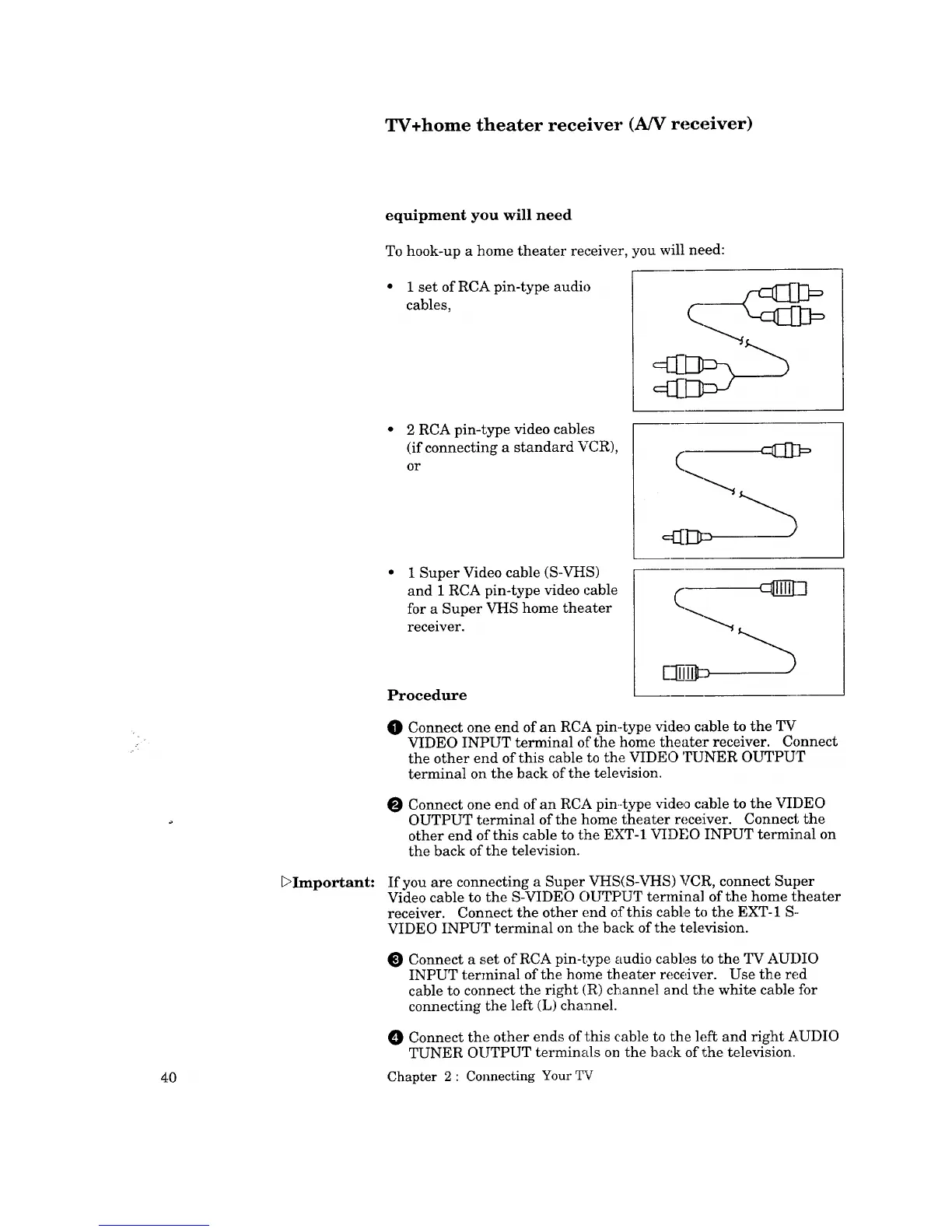

TV+home theater receiver (AN receiver)
_Important:
equipment you will need
To hook-up a home theater receiver, you will need:
1 set of RCA pin-type audio
cables,
2 RCA pin-type video cables
(if connecting a standard VCR),
or
1 Super Video cable (S-VHS)
and 1 RCA pin-type video cable
for a Super VHS home theater
receiver.
Procedure
0 Connect one end of an RCA pin-type video cable to the TV
VIDEO INPUT terminal of the home theater receiver. Connect
the other end of this cable to the VIDEO TUNER OUTPUT
terminal on the back of the television.
O Connect one end of an RCA pin-type video cable to the VIDEO
OUTPUT terminal of the home theater receiver. Connect the
other end of this cable to the EXT-1 VIDEO INPUT terminal on
the back of the television.
If you are connecting a Super VHS(S-VHS) VCR, connect Super
Video cable to the S-VIDEO OUTPUT terminal of the home theater
receiver. Connect the other end of this cable to the EXT-1 S--
VIDEO INPUT terminal on the back of the television.
Connect a set of RCA pin-type audio cables to the TV AUDIO
INPUT terminal of the home th eater receiver. Use the red
cable to connect the right (R) channel and the white cable for
connecting the left (L) channel.
Connect the other ends of this cable to the left and right AUDIO
TUNER OUTPUT terminals on the back of r.he television.
40 Chapter 2: Connecting Your TV
