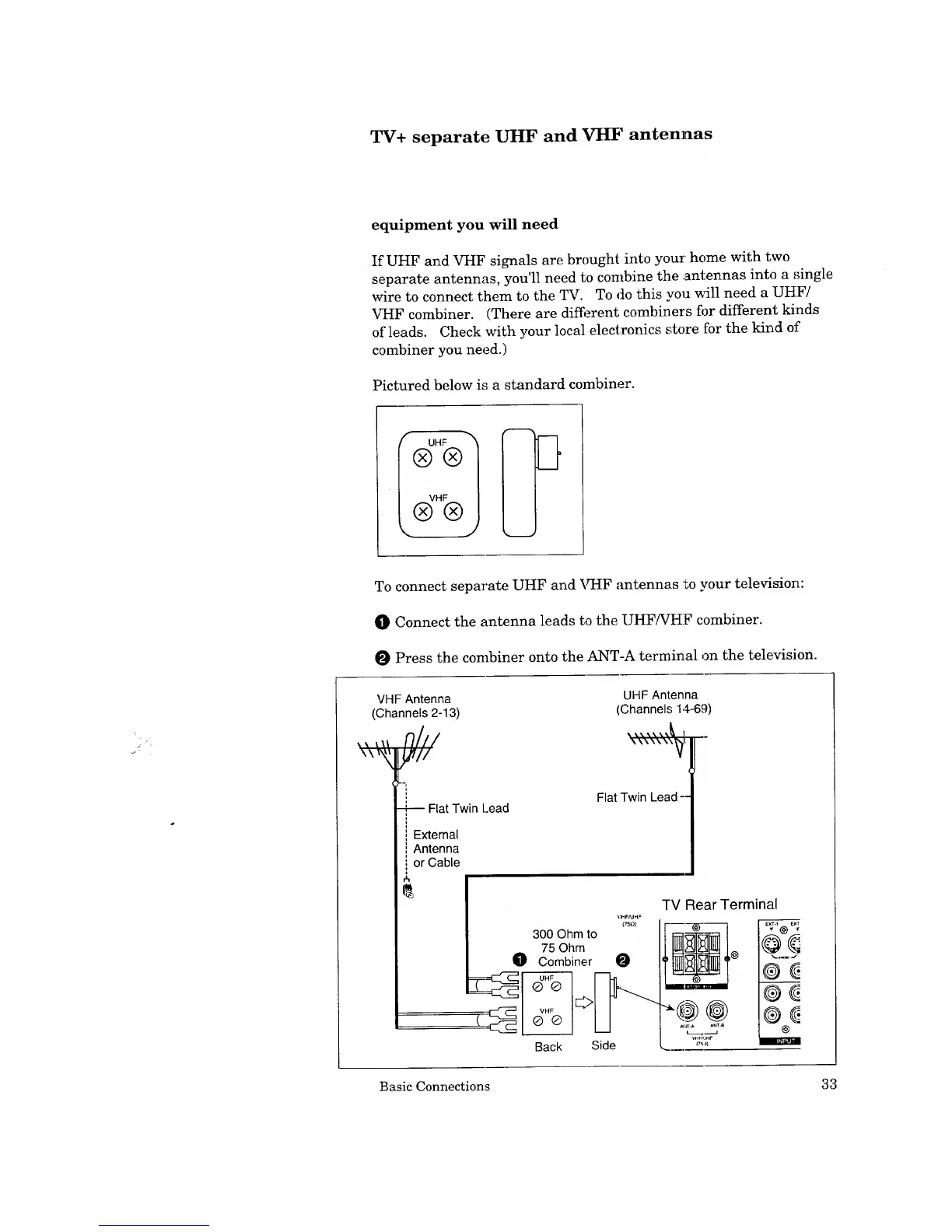

TV+ separate UHF and VHF antennas
equipment you will need
If UHF and VHF signals are brought into your home with two
separate antennas, you'll need to combine the antennas into a ,Jingle
wire to connect them to the TV. To do this you will need a UHF/
VHF combiner. (There are different combiners fi)r different kinds
of leads. Check with your local electronics store for the kind of
combiner you need.)
Pictured below is a standard combiner.
To connect separate UHF and XrI-IFantennas "myour television:
{]P Connect the antenna leads to the UHF/VHF combiner.
Press the combiner onto the ANT-A terminal on the television.
VHF Antenna UHF Antenna
(Channels2-13) (Channels14-69)
n/,,/ --
y//
--!
Flat Twin Lead
External
Antenna
or Cable
@
Flat Twin Lead--
300 Ohm to
75 Ohm
Combiner
Back Side
O
TV Rear Terminal
Basic Connections 33
