Installation: Antenna Connections
6 6881086C22-B
front panel facing up and guide the holes provided on the bottom of the cabinet
over the mounting screws.

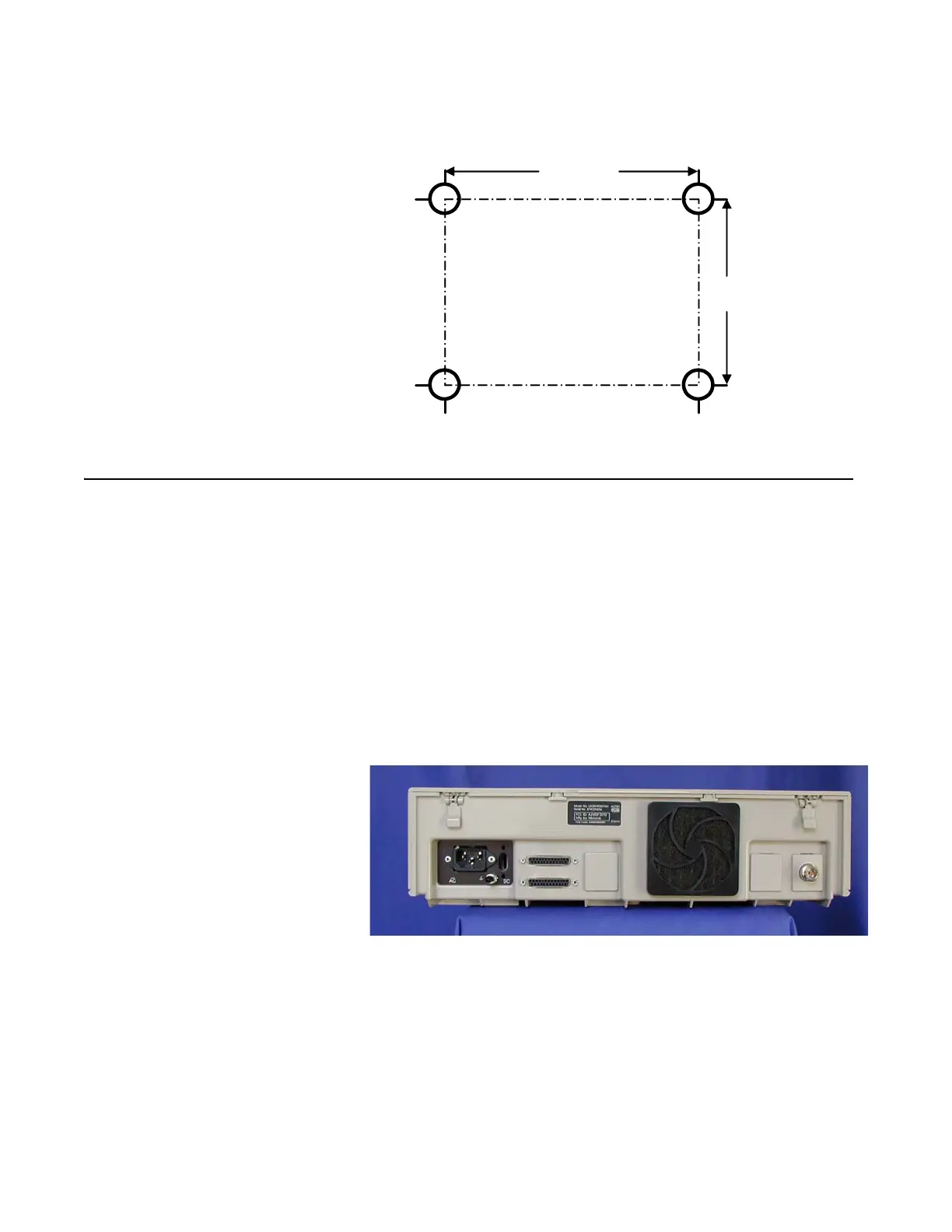

Figure 1. Wall Mounting
Antenna
Connections
The antenna and transmission lines are not part of the Consolette; therefore,
antenna installation instructions are not included in this section. Refer to the
instructions shipped with the antenna for applicable information.
In its primary application, the Consolette is used for communication with mobile
radios. Therefore, an omni-directional antenna is recommended. However, if
the Consolette is located at the outer perimeter of a communications area, or
if it is to be used for communication with a fixed station, an antenna with
specific directional characteristics may be preferred. Local government
agencies may also dictate the type of antenna to be used.
The coaxial antenna cable connects to an N-type coaxial connector located on
the rear panel of the station. See Figure 2.
Figure 2. Rear Panel
9.2 inches
(233.0 mm)
11.8 inches
