PCB/Schematic Diagrams and Parts List: Keypad 2-9

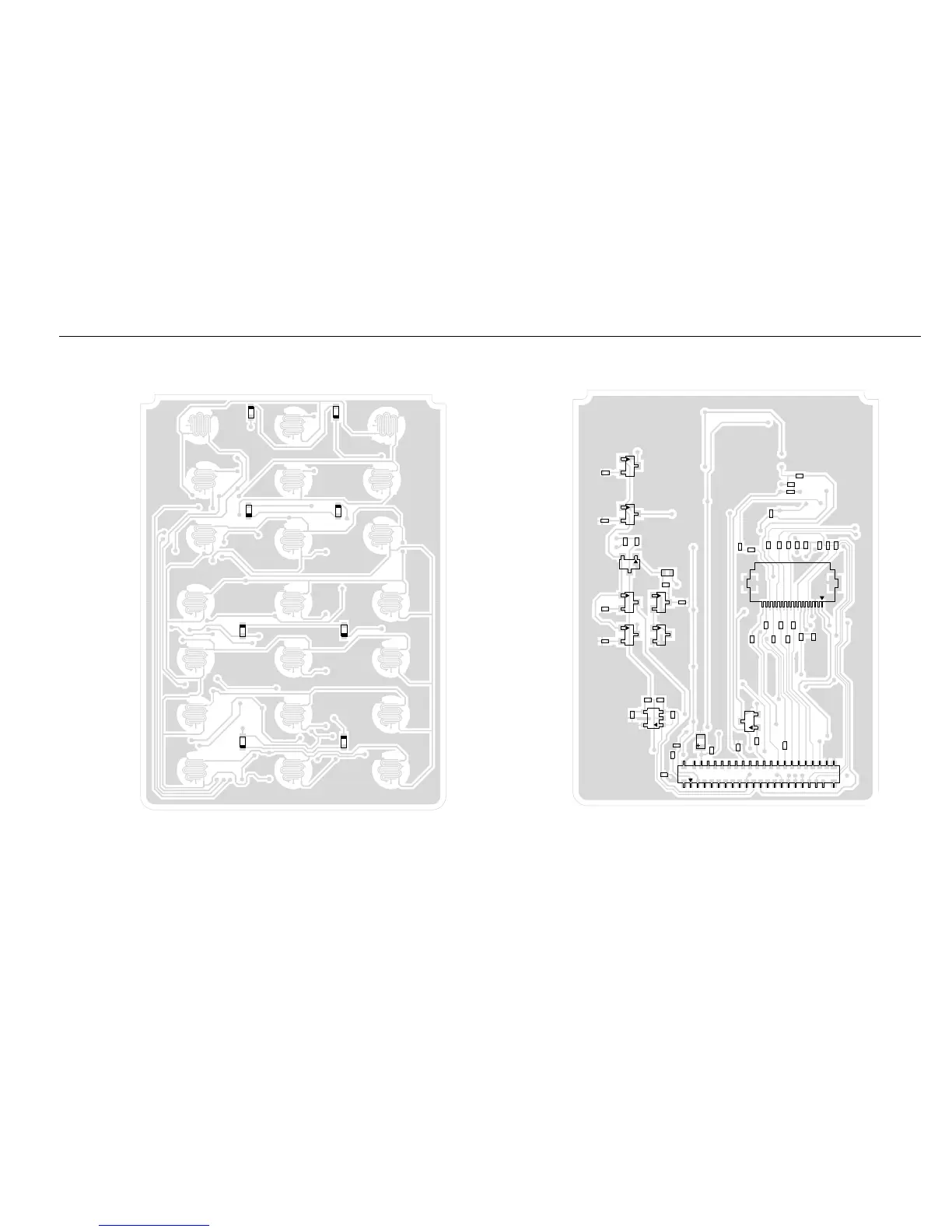

3.3 PCB 8480682Z04 - Diagrams
Top View Bottom View
D602
M601
M602
D601
M604
M605
M607
M608
D604
M610
M611
M613 M614
D603
M616 M617
M619 M620
D607
M618
M621
D608
M612
M615
D605
M606
M609
D606
M603
ZMY0130334-O
Q606
R643
Q605
R624
R641
R626
Q604
Q607
R644
Q608
R647
R622
R623
R628
R625
U602
2
C603
C605
C606
C607
C602
Q603
R601
J601
C604
R605
40
39
Q601
Q602
R602
R603
C601
R630
R632
E613
E614
E616
E618
E620
R606
R627
E609
J602
18
1
R607
R608
R610
R612
E615
E617
E619
E621
R629
R633
R634
R631
ZMY0130335-O
Keypad Board GP1280 (PCB No. 8480682Z04)
