Click the Add button to configure a blacklist for another device, if you like.

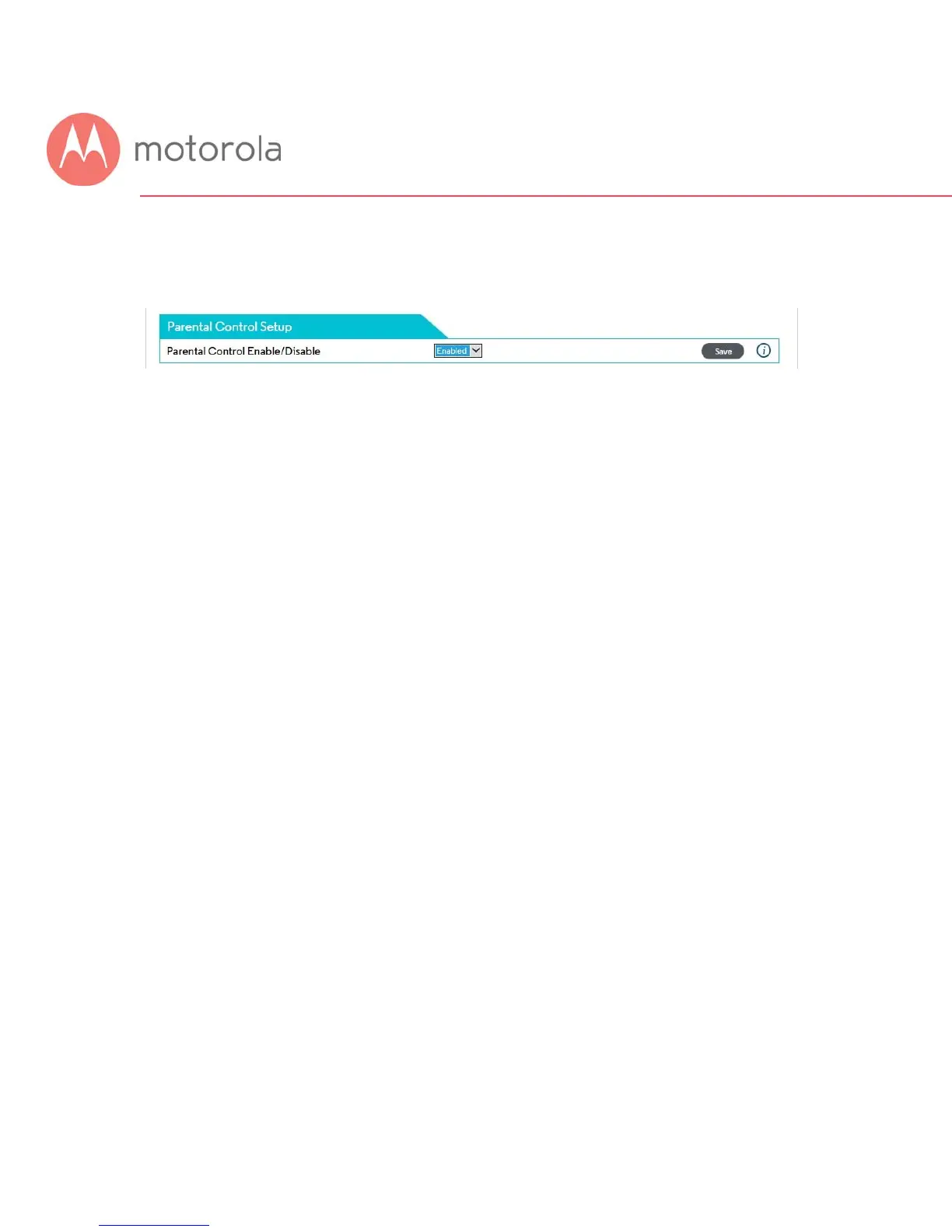

When you have completed all Blacklists, remember to Enable Parental Control at
the top of the page, and click Save.
Setting up a Whitelist
Before you make any changes, make sure Parental Control at the top of the
page is Disabled, and click Save if you had to change this.
Under the tab List of Blocked Addresses (Whitelist), click the Add button to
the right. A set of fields will appear. Give your Whitelist a name, and then
type in the MAC Address of the device you want your Whitelist to apply to.
Use the format XX:YY:ZZ:WW:VV:UU.
Next, enter the URL of the first domain that you want to allow, for example
Jill _Site_1.com.
If you want to the Whitelist to apply only during certain hours, enter the start
and stop times for the period you want the Whitelist to apply. If you want the
Whitelist to apply always, make sure to set the start time to 12:00 am and the
end time to 11:59 pm.
Next, select which protocols the Whitelist should apply to. If you’re not sure,
leave this selection at the default setting, BOTH.
Finally, make sure to check the Enable box, and click the Save button.

Other manuals for Motorola MG7550

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Motorola MG7550 and is the answer not in the manual?

Motorola MG7550 Specifications

General IconGeneral
TypeCable Modem
DOCSIS3.0
Channel Bonding16x4
Max Download Speed686 Mbps
Max Upload Speed123 Mbps
Built-in RouterYes
Wi-Fi Standard802.11ac
Wi-Fi BandsDual-band
Ethernet Ports4
Phone Ports0
Wi-Fi Speed1900 Mbps
CompatibilityXFINITY from Comcast, Cox, Charter Spectrum
