1 - 12 WT41N0 User Guide

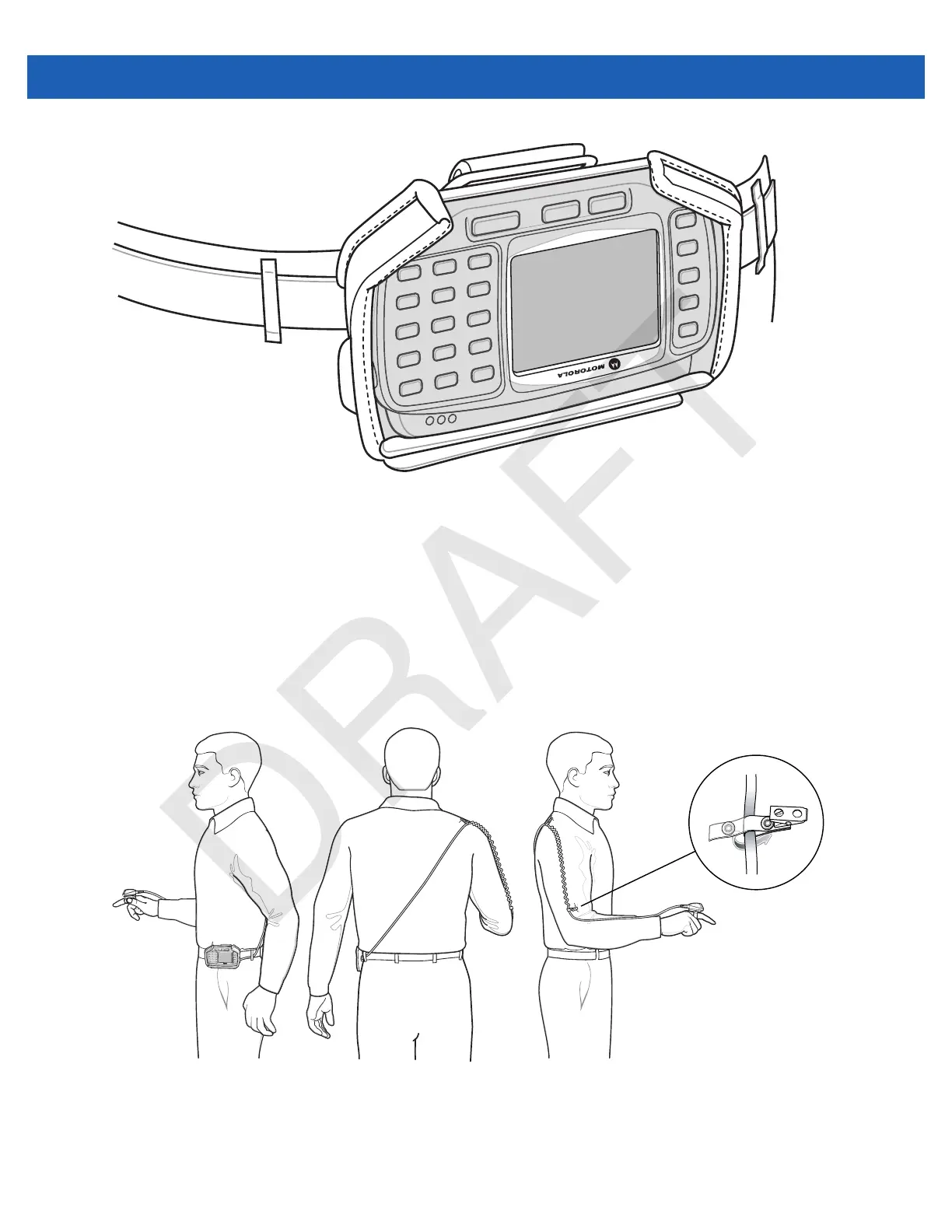

Figure 1-15
Hip Mount on Belt
Connect accessories as required.
Routing an Extended Cable Scanner
When using an RS309, RS409 or RS419 scanner with the wearable terminal mounted on the hip, the extended
cable version is required.
Motorola offers for sale cable clips, which attach to clothing and hold the scanner cable so that the cable does
not interfere with the user. The cable clips are similar to badge clips and can be purchased at any office supply
store as well.
Figure 1-16
Routing RS409/419 Scanner Cable from Hip to Hand
