NEC MultiSync V984Q User Manual

English-10
Parts Name and Functions

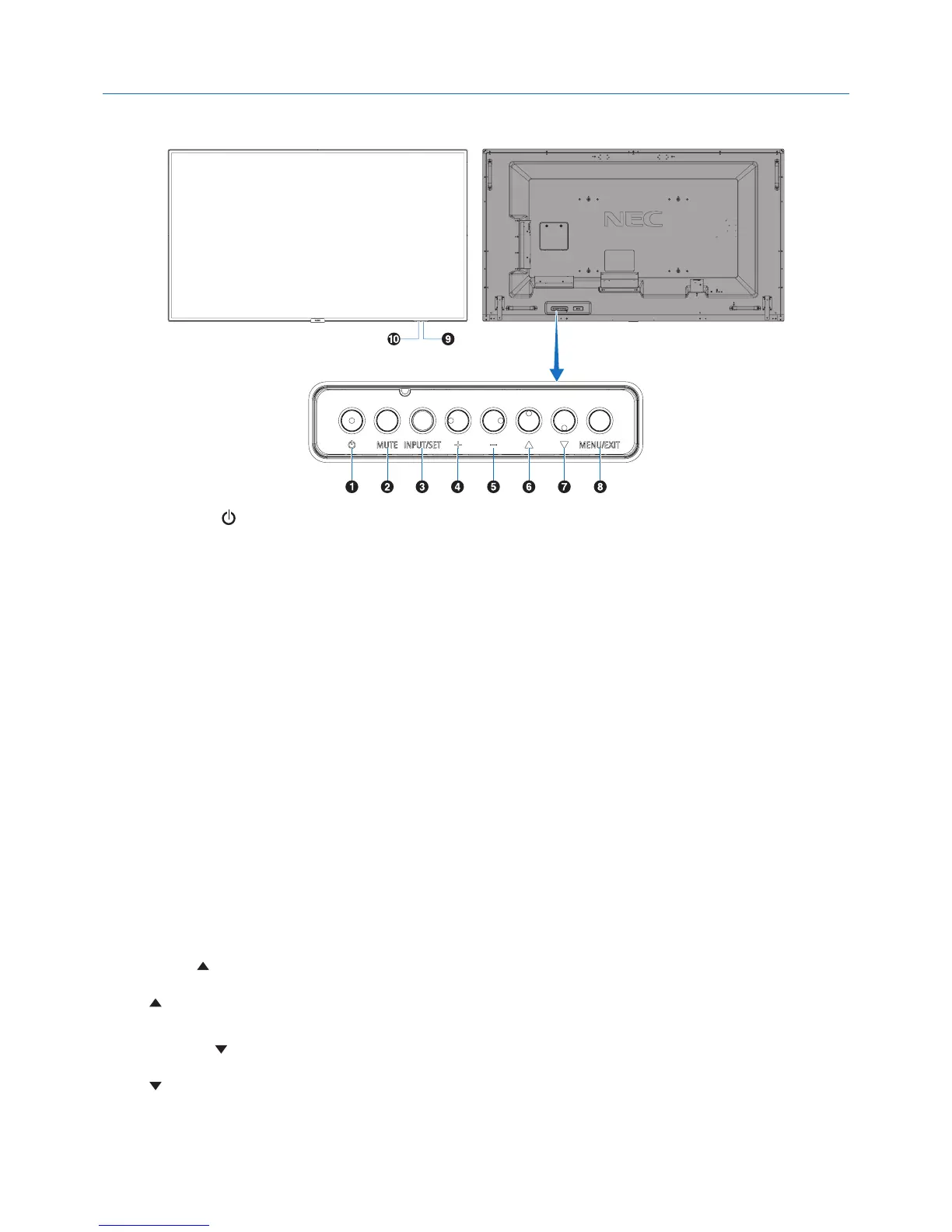

Control Panel
A Power Button ( )
Switches the power on/standby. See also page 20.
B Mute Button (MUTE)
Switches the audio mute on/off.
C Input/Set Button (INPUT/SET)
INPUT: Toggle switches between below inputs.
[DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2], [HDMI3],
[MP], [OPTION*]. These are available inputs only, shown as
their factory preset name.
SET: When OSD (On Screen Display) is shown, this button
acts as a “set button” when you make a selection.
*: This function depends on which option board you are using.
D Plus Button (+)
Increases the audio output level when the OSD menu is
turned off.
Acts as (+) button to increase the adjustment within the
OSD menu.
E Minus Button (-)
Decreases the audio output level when the OSD menu is
turned off.
Acts as (-) button to decrease the adjustment within the
OSD menu.
F Up Button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area up to select
adjustment items within the OSD menu.
G Down Button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area down to select
adjustment items within the OSD menu.
H Menu/Exit Button (MENU/EXIT)
Activates the OSD menu when the OSD menu is turned off.
Acts as a back button within the OSD to move to the previous
OSD menu.
Acts as an EXIT button to close the OSD when on the main
menu.
I Remote Control Sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See also page 14.
Glows blue when the LCD monitor is in active mode*.
Green and Amber blink alternately when the “SCHEDULE
SETTINGS” function is enabled*
1
.
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
* If “OFF” is selected in the “POWER INDICATOR”
(see page 43 ), the LED will not glow when the LCD monitor is in
active mode.
*
1
If “OFF” is selected in the “SCHEDULE INDICATOR”
(see
page 43 ), the LED will not blink.
NOTE: Please refer to the POWER INDICATOR (see page 43).
J Room Light Sensing Sensor
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See page 43.

NEC MultiSync V984Q Specifications

General

Response time	8 ms
Display diagonal	98 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Direct-LED
Contrast ratio (typical)	1300:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	247.82 cm
Active display area (W x H)	2158.9 x 1214.4 mm
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 2160, 3840 x 2160, 4096 x 2160
Orientation	Horizontal/Vertical
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	15.9 mm
Panel mounting interface	400 x 400, 600 x 400 mm
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	2
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Power consumption (standby)	0.5 W
Power consumption (typical)	380 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE; EAC; EMC B; FCC; SASO; TÜV GS; UL/C-UL, CSA; VCCI
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	93 mm
Width	2194 mm
Height	1249 mm
Weight	90000 g
