NEC MultiSync V984Q User Manual

English-17
English
Connections
NOTE: Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power,
as this may result in a loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user’s manual included with each separate piece of equipment.
* We strongly recommend connecting or disconnecting a USB storage device or a microSD memory card to the monitor when
the monitor’s main power is off.

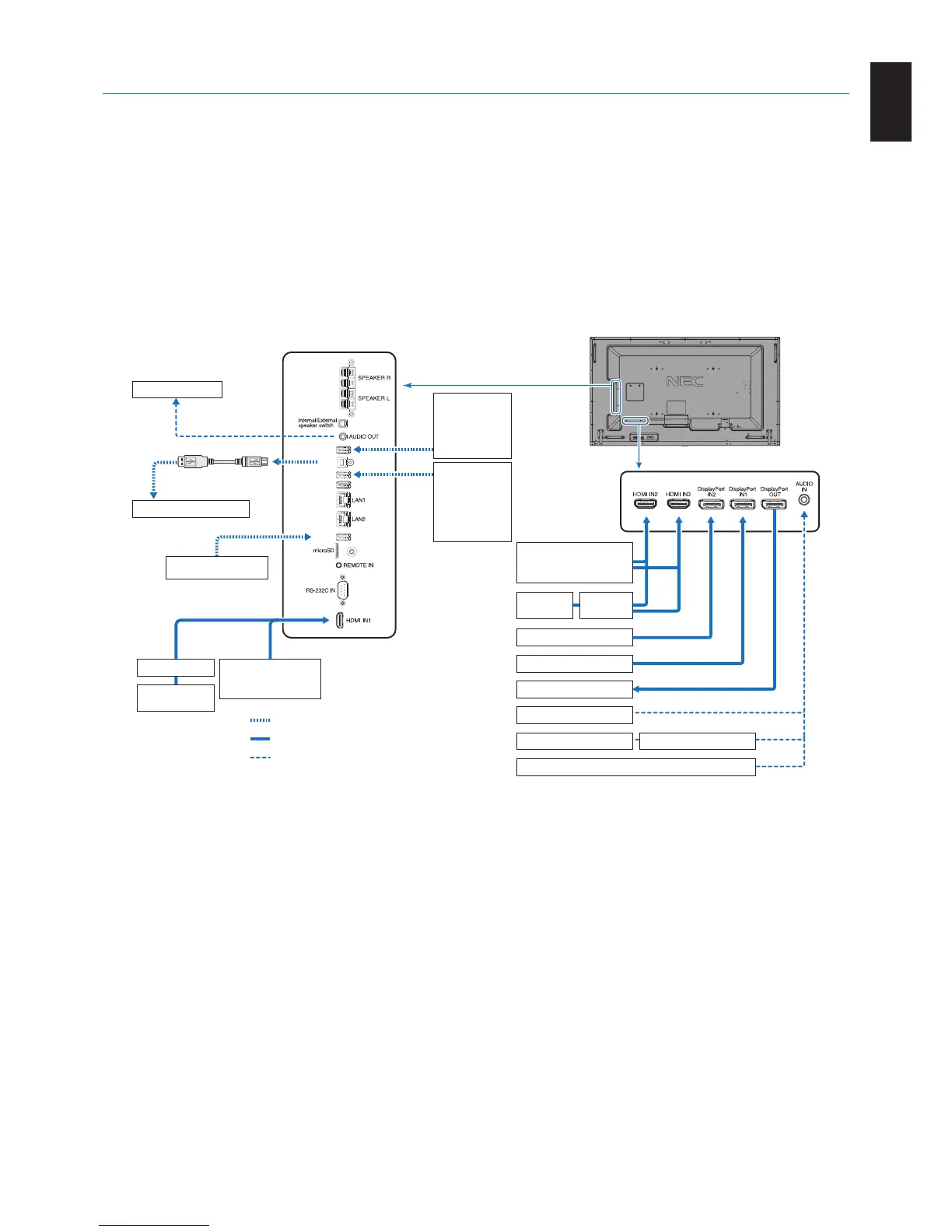

Wiring Diagram
USB1
USB2
USB CM1 (2A)
USB CM2
USB MP
Dotted lines = other signal
Solid lines = video signal
Dashed lines = audio signal
USB storage device
Stereo Amplifier
USB port
(Type-A)
USB devices
such as
USB camera or
USB memory
Devices that
require power
supply:
Ex:
MultiPresenter
Stick
USB port
(Type-B)
USB cable
Computer (USB)*
1
AV Amplifier
DVD Player
(HDMI)
DVD Player or
Computer
DVD Player (HDMI) or
Computer (HDMI)
DVD Player
(HDMI)
AV
Amplifier
Computer (DisplayPort)
Computer (DisplayPort)
Second monitor*
Computer
DVD Player Stereo Amplifier
VCR player or DVD player
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
*1: The device connected to USB2 can control the device connected to USB1.

NEC MultiSync V984Q Specifications

General

Response time	8 ms
Display diagonal	98 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Direct-LED
Contrast ratio (typical)	1300:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	247.82 cm
Active display area (W x H)	2158.9 x 1214.4 mm
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 2160, 3840 x 2160, 4096 x 2160
Orientation	Horizontal/Vertical
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	15.9 mm
Panel mounting interface	400 x 400, 600 x 400 mm
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	2
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Power consumption (standby)	0.5 W
Power consumption (typical)	380 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE; EAC; EMC B; FCC; SASO; TÜV GS; UL/C-UL, CSA; VCCI
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	93 mm
Width	2194 mm
Height	1249 mm
Weight	90000 g
