This LCD monitor can be controlled by connecting a personal computer with an RS-232C (reverse type) terminal.
Functions that can be controlled by a personal computer are:
• PowerONorstandby.
• Switchingbetweeninputsignals.
• SoundMuteONorOFF.
Connection

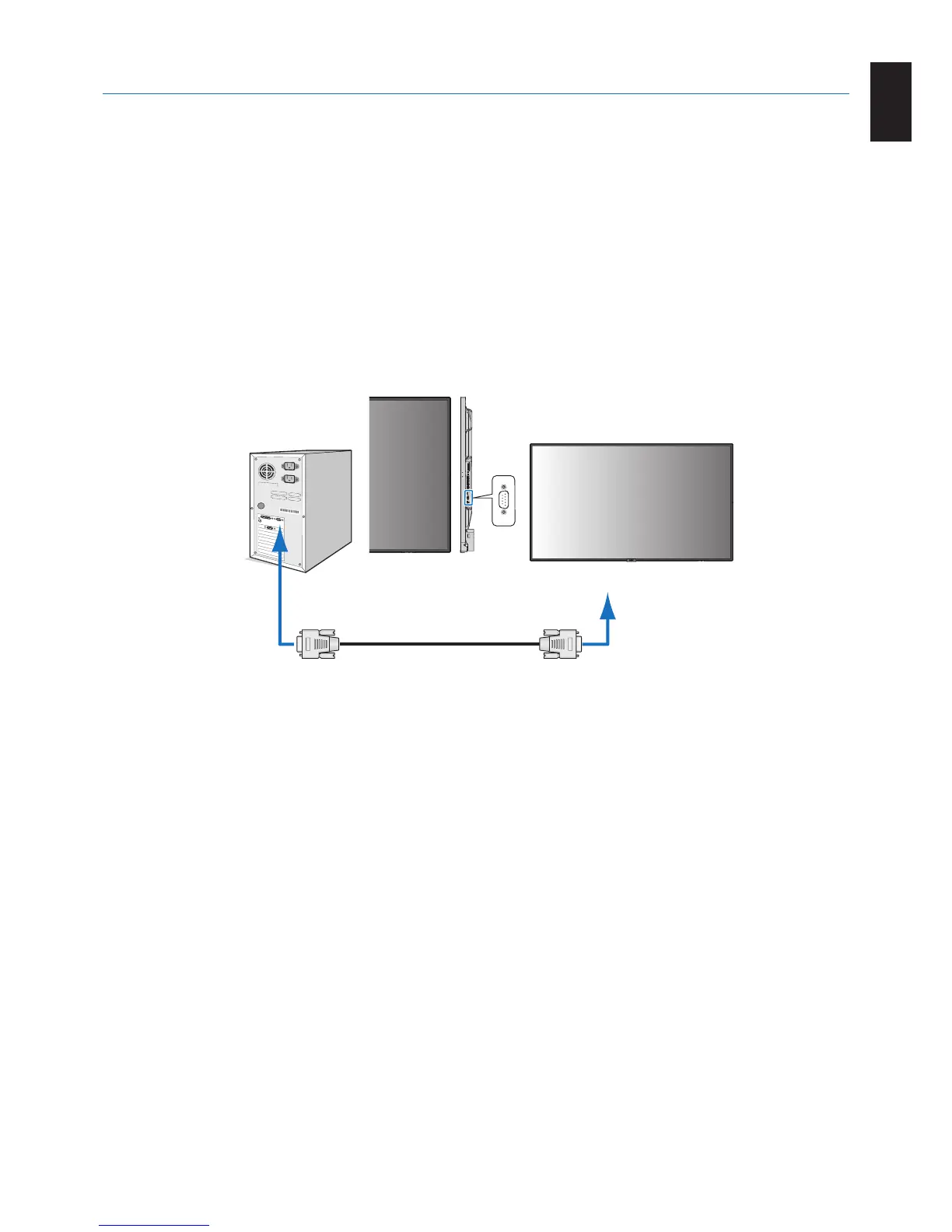

LCD Monitor + computer.
• Please turn off the monitor’s main power when connecting a computer to the monitor.
• Please turn on the connecting computer first then turn on the monitor’s main power.
If you turn on the computer and monitor in reverse order, the com port may not work.
• When controlling the monitor connected with an RS-232C cable, please refer to the Control command diagram (See
page 57)
or see the “External_Control.pdf” file on the CD-ROM supplied with the monitor.
RS-232C Cable
Computer
RS-232C
NOTE: If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact
your supplier for details.
For the pin assignment, please see “2) RS-232C input/output” on page 50.
To control a monitor, please use the control command. Instructions for the control command can be found on the CD included
with the monitor. The file is called “External_control.pdf”.
Controlling the LCD monitor via RS-232C Remote Control

NEC MultiSync V984Q Specifications

General

Response time	8 ms
Display diagonal	98 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Direct-LED
Contrast ratio (typical)	1300:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	247.82 cm
Active display area (W x H)	2158.9 x 1214.4 mm
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 2160, 3840 x 2160, 4096 x 2160
Orientation	Horizontal/Vertical
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	15.9 mm
Panel mounting interface	400 x 400, 600 x 400 mm
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	2
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Power consumption (standby)	0.5 W
Power consumption (typical)	380 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE; EAC; EMC B; FCC; SASO; TÜV GS; UL/C-UL, CSA; VCCI
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	93 mm
Width	2194 mm
Height	1249 mm
Weight	90000 g
