Operating Range for the Remote
Control

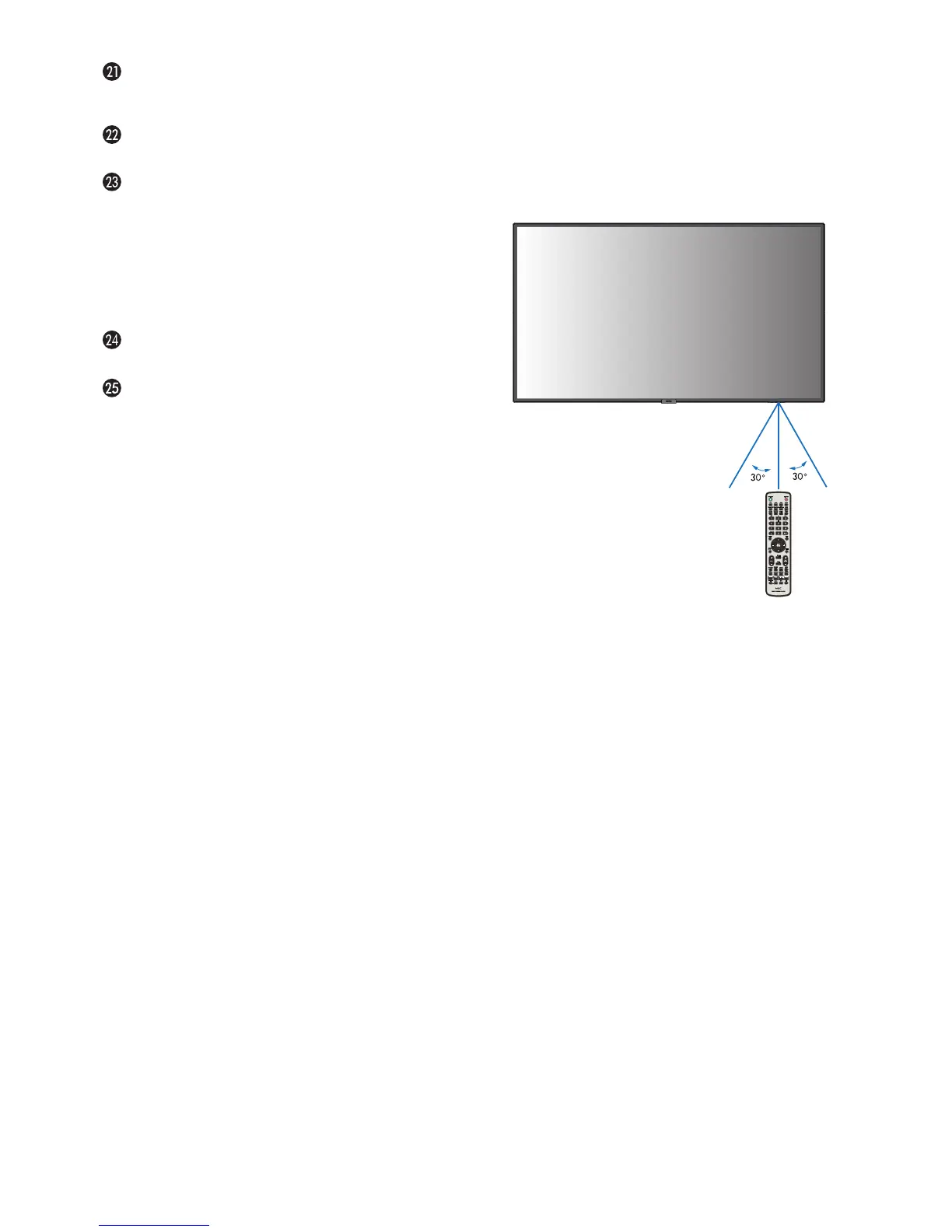

Point the top of the remote control toward the LCD monitor’s
remote control sensor during button operation.
Use the remote control within a distance of about 7 m (23 ft.)
from the remote control sensor, or at a horizontal and
verticalangleofwithin30°andwithinadistanceofabout
3.5 m (10 ft.).
IMAGE FLIP Button
Toggleswitchesbetween[HFLIP],[VFLIP],[180°ROTATE]
and [NONE]. See page 35.
ACTIVE PICTURE Button
Selects active picture.
MULTI PICTURE Button
ON/OFF Button: Toggle switches between ON and OFF.
MODE Button: Selects a mode from PIP (picture in picture)
or PBP (picture by picture).
CHANGE Button: Swaps images between two pictures.
PICTURE ASPECT Button: Selects active picture frame
aspect.
NOTE: Enable to change each multi picture size by pressing
SET/POINT ZOOM button during multi picture mode.
REMOTE ID Button
Activates the REMOTE ID function. See page 47.
MTS Button*
1
*1: This button’s action depends on which option board you are using.
Refer to the option board’s user’s manual for further information.
NOTE: The buttons with no explanation do not function.
Caution: Important, the remote control
system may not function when
direct sunlight or strong
illumination strikes the
remote control sensor, or
when there is an object in
the path.
Handling the remote control
• Donotexposetostrongshock.
• Donotallowwaterorotherliquidto
splash on the remote control. If the
remote control gets wet, wipe it dry immediately.
• Avoidexposuretoheatandsteam.
• Excepttoinstallthebatteries,donotopentheremote
control.
