NEC MultiSync V984Q User Manual

English-11
English

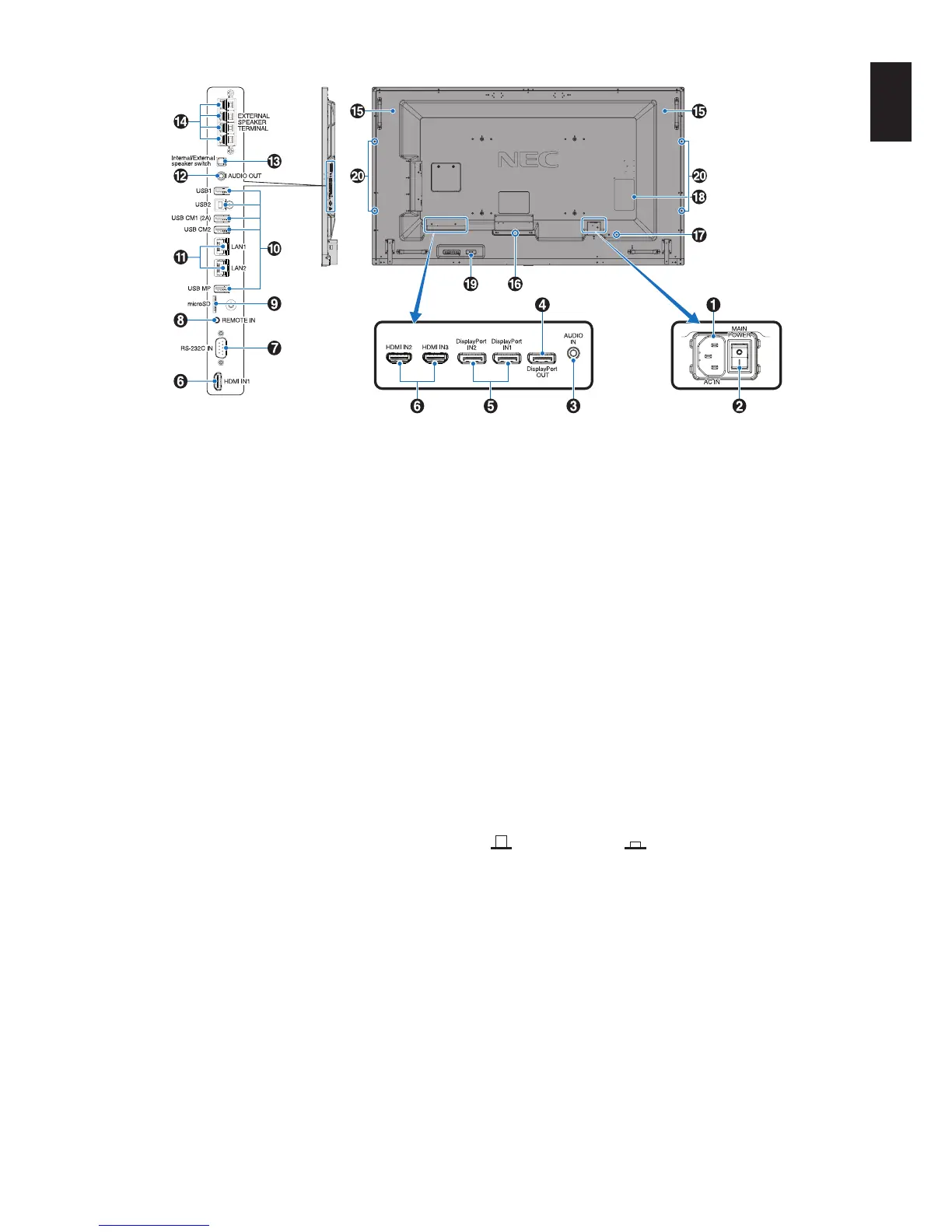

Terminal Panel
USB Upstream
A AC IN Connector
Connects with the supplied power cord.
B Main Power Switch
On/Off switch to turn main power ON/OFF.
C Audio IN
Audio signal input from external equipment such as a
computer or player.
D DisplayPort OUT
Output DisplayPort signals from DisplayPort IN1.
You can connect multiple monitors by using DisplayPort
daisy-chain connection. See MULTI DISPLAY (
page 39) and
Video out (page 68).
E DisplayPort IN1/IN2
DisplayPort signals input.
F HDMI IN1/IN2/IN3
Digital HDMI signals input.
G RS-232C IN (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a
computer in order to control RS-232C functions.
H Remote IN
Use the optional sensor unit by connecting it to your monitor.
NOTE: Do not use this connector unless specified.
I microSD Card Slot
Insert a microSD memory card. To use the Media Player,
please connect a microSD memory card to this port
(See
page 23).
To install the microSD card slot cover, please refer to
“Installing microSD card slot cover” (See
page 23).
J USB Port
USB1:
Downstream port (USB Type-A).
Connect USB devices.
USB2:
Upstream port (USB Type-B).
Connect external equipment such as a computer.
To control the monitor from connected external
equipment, please use this port.
USB CM1 (2A): Power supply port.
USB CM2: Service port. Please do not connect devices.
USB MP: USB storage device port. This port is for future
software upgrades.
To use the Media Player, please connect USB
storage device to this port (See page 19).
MP is an abbreviation of Media Player.
K LAN Port 1/2 (RJ-45)
LAN connection. See
page 48 and 51.
NOTE: Please give priority for use to LAN1.
L Audio OUT
Audio signal output from the AUDIO IN, DisplayPort and
HDMI to an external device (stereo receiver, amplifier, etc.).
NOTE: This connector is not a Headphone terminal.
M Internal/External Speaker Switch
: Internal speaker : External speaker.
NOTE: Please turn off the monitor’s main power when you
use the Internal/External speaker switch.
N External Speaker Terminal
Audio signal output.
Red terminal is plus (+).
Black terminal is minus (-).
NOTE: This speaker terminal is for 15 W + 15 W (8 ohm)
speaker.
O Internal Speaker

NEC MultiSync V984Q Specifications

General

Response time	8 ms
Display diagonal	98 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Direct-LED
Contrast ratio (typical)	1300:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	247.82 cm
Active display area (W x H)	2158.9 x 1214.4 mm
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 2160, 3840 x 2160, 4096 x 2160
Orientation	Horizontal/Vertical
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	15.9 mm
Panel mounting interface	400 x 400, 600 x 400 mm
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	2
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Power consumption (standby)	0.5 W
Power consumption (typical)	380 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE; EAC; EMC B; FCC; SASO; TÜV GS; UL/C-UL, CSA; VCCI
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	93 mm
Width	2194 mm
Height	1249 mm
Weight	90000 g
