DAYLIGHT SAVING Sets daylight savings on or off.
NOTE: Please set the TIME & DATE setting first if you change the DAYLIGHT SAVING setting.
DAYLIGHT SAVING If ON is selected, please set daylight savings settings below.
BEGIN MONTH Set daylight savings beginning date.
END MONTH Set daylight savings ending date.
TIME DIFFERENCE Set the time difference.
OFF TIMER Set the monitor to power off after a preset time period. A time period between 1 to 24 hours may be set.
NOTE: SCHEDULE is not available if OFF TIMER is ON.
RESET Resets the following settings within the SCHEDULE menu back to factory setting: DATE & TIME and DAYLIGHT
SAVING.
MULTI INPUT
KEEP MULTI PICTURE
MODE*
1
Allows the monitor to remain in MULTI PICTURE and TEXT TICKER mode after powering off.
When Power is returned, MULTI PICTURE and TEXT TICKER appear without having to enter the OSD.
MULTI PICTURE MODE*
1,
*
3
Selects picture number and display form.
MULTI PICTURE When “OFF” is selected, one picture is displayed.
When “ON” is selected, several pictures are displayed. Select PIP or PBP.
NOTE: When “ON” is selected, TEXT TICKER, TILE MATRIX, MOTION in SCREEN SAVER, IMAGE FLIP except
for NONE, SUPER in INPUT CHANGE is released.
PICTURE NUMBER Selects [2 PICTURES], [3 PICTURES], [4 PICTURES].
After selected PICTURE NUMBER, select display form PIP, PBP1, PBP2, or PBP3. Depending on the setting at
PICTURE NUMBER, display form selection is changed.

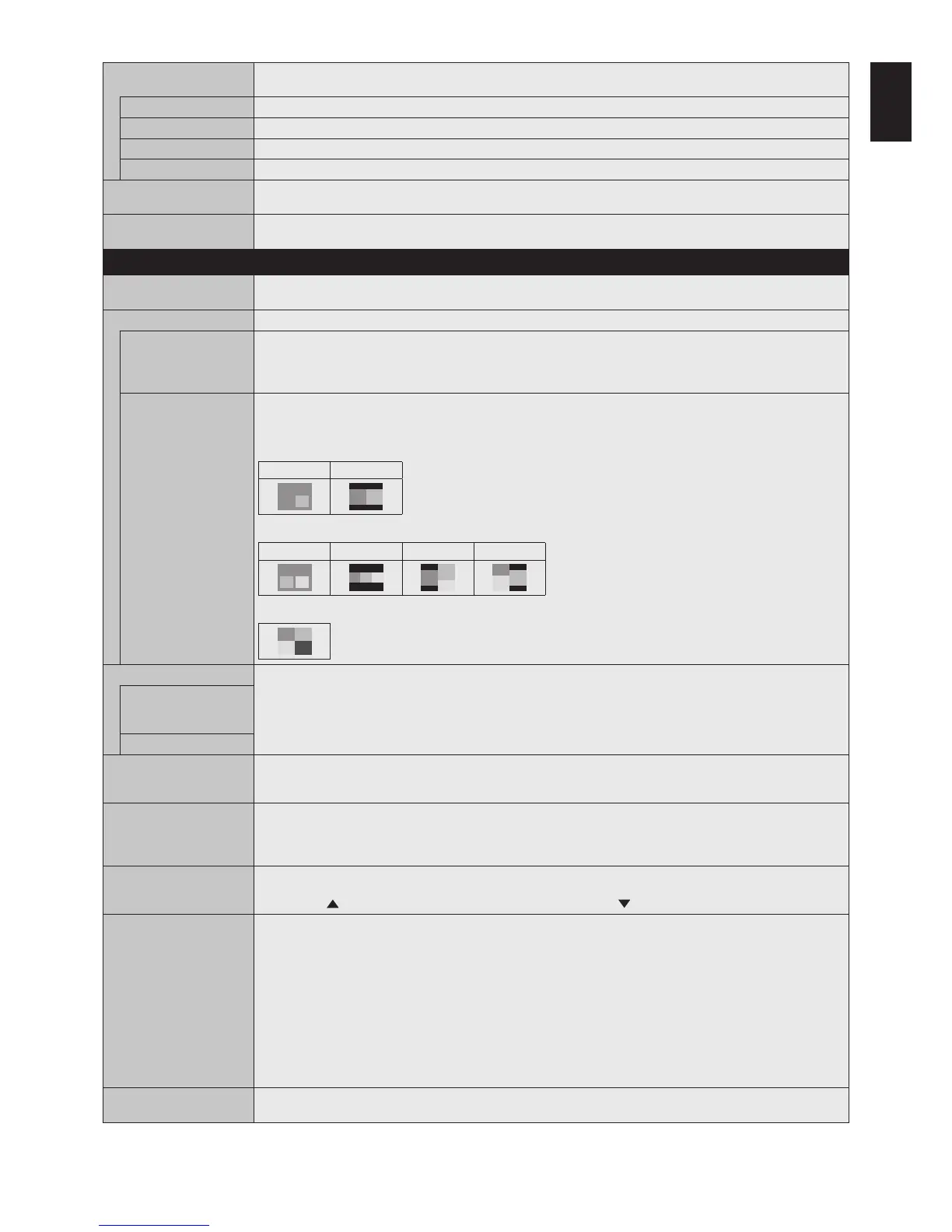

PICTURE NUMBER: 2 PICTURES
PIP PBP1
A
B
A: PICTURE 1 B: PICTURE 2
C: PICTURE 3 D: PICTURE 4
ACTIVE PICTURE*
1,
*
2
ACTIVE When MULTI PICTURE is “OFF”, [PICTURE 1] is the Active Picture. When MULTI PICTURE is “ON”, sets Active
Picture.
NOTE: This function depends on MULTI PICTURE setting.
ACTIVE FRAME The active picture is shown within a red frame.
INPUT SELECT*
1,
*
2,
*
3
Selects the Multi Picture input. Press the + button or - button to select the input.
NOTE: This function is not available when MULTI PICTURE is “OFF”.
When changing input signal for the active picture, after selecting an input press SET.
PICTURE SIZE*
1,
*
2,
*
4
Sets the Active Picture size.
Press the SET/POINT ZOOM button to adjust the picture size. Press + or CH+ to expand. Press - or CH- to reduce.
NOTE: This function is not available when MULTI PICTURE is set to 4 PICTURES PBP.
Depends on the setting at MULTI PICTURE MODE, some pictures cannot change their size.
PICTURE POSITION*
1,
*
2,
*
4
Sets the Active Picture location.
Pressing the + button moves the Active Picture to the right, and pressing the - button moves it to the left.
Pressing the
button moves the Active Picture up, and pressing the button moves it down.
ROTATE When “ON” is selected, all pictures rotate.
When “OFF” is selected, sets each picture ROTATE settings.
NOTE: When TEXT TICKER, IMAGE FLIP except for NONE, STILL is ON or SCREEN SAVER is active,
this function is not available. If ASPECT “1:1” is selected, characters and lines may be displayed in blurring,
depending on the signal resolution.
When ROTATE is ON, POINT ZOOM and IMAGE FLIP except for NONE are not available.
Each picture ROTATE settings are released when MULTI PICTURE is set to “OFF”.
When input signal is Interlace, the image may be distorted.
When HDMI of the TERMINAL SETTINGS is set to MODE2, or [3 PICTURES] or [4 PICTURES] is selected at
PICTURE NUMBER in MULTI PICTURE MODE, ROTATE is not available.
If ROTATE of MULTI PICTURE CONTROL is selected in the input signal with a high refresh rate, the image may
not be displayed smoothly. To reduce this condition please set the input signal with a low refresh rate.
PICTURE ASPECT*
1,
*
2,
*
4
Selects the Active Picture frame aspect.
To change aspect ratio of the screen image see
page 21.
*1: This function is released when selecting SUPER in INPUT CHANGE, MOTION in SCREEN SAVER, TILE MATRIX and IMAGE FLIP except for NONE.
*2: When TEXT TICKER is active or multi picture is OFF, this function is not available.
*3: When you select OPTION for multi picture input, this function depends on which option board you are using.
*4: This function is not available if PIP is set at MULTI PICTURE MODE and then PICTURE1 is set at ACTIVE PICTURE.
