Netafim SCREENGUARD User Manual

SCREENGUARD
™
INSTALLATION AND USER MANUAL 39

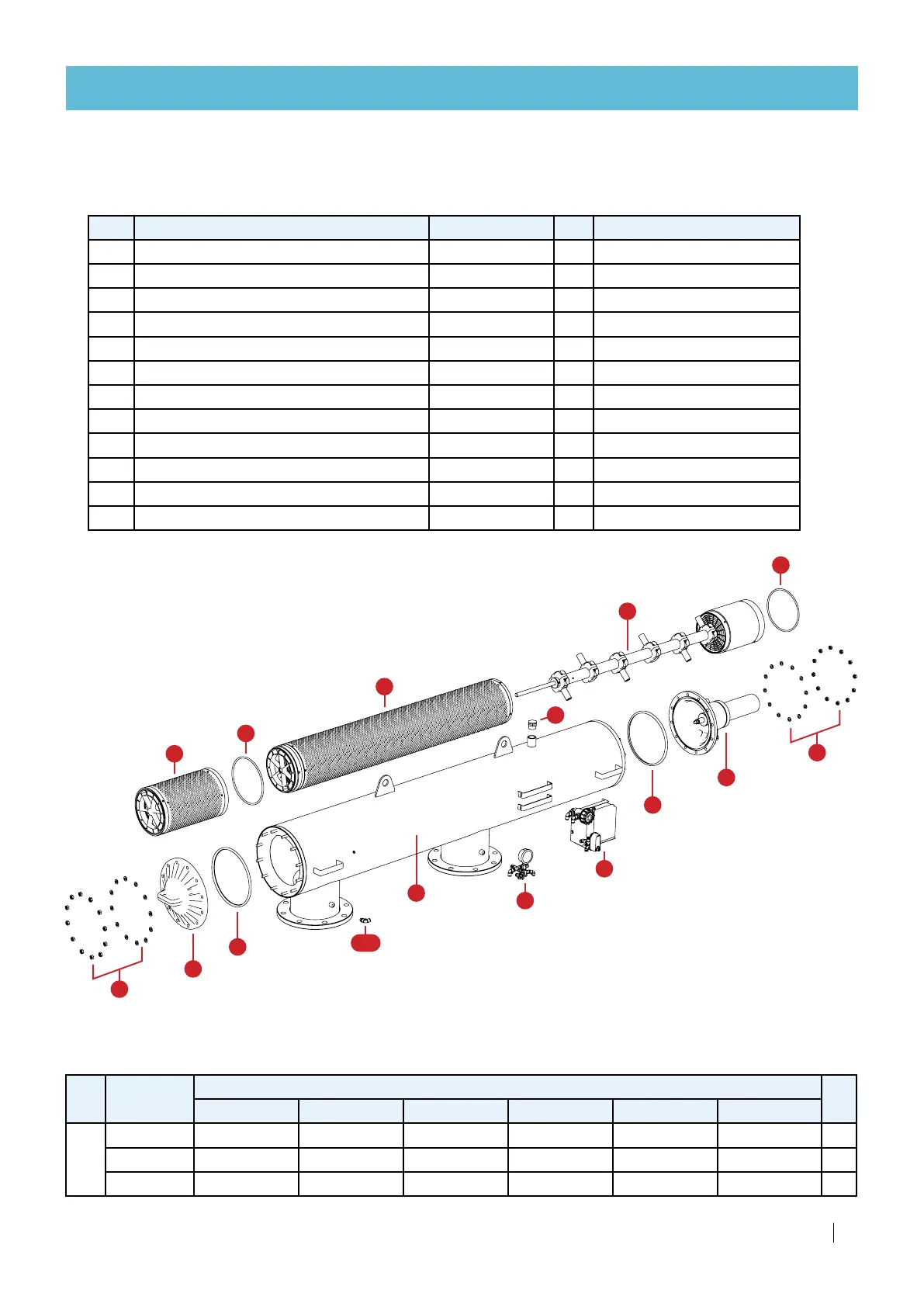

REPLACEMENT PARTS
Main parts and assemblies
Part Description Cat. No. Qty. See details on page:
1 Metal Body SGH 1 39
2 Fine screen Assembly 1 40
3 Suction Assembly 1 41
4 Coarse Screen Assembly 71965-000401 1
5 Piston Cover Assembly Stroke 200mm 71965-000402 1 42
6 Filter Body Cap 71965-000403 1
7 Electronic Controller Assembly SGH 71965-000404 1 43
8 Pressure Gauge Assembly SGH 71965-000405 1 45
9 Cover Gasket 71965-000406 2 44 (Seal Kit)
10 O-ring 71965-000407 2 44 (Seal Kit)
11 10mm SS Washer and Nuts, 12 pcs 71965-000256 2 44 (Washers and Nuts set)
12 PE 1" M cap 71965-000409 1
Metal Body
Part
Connection
type
Cat. No.
Qty.
SGH 4" SGH 4"S SGH 6" SGH 6"S SGH 8" SGH 10"
1 DIN 71965-000115 71965 -000118 71965-000121 71965-000124 71965-000127 71965-000130 1
BSTD 71965-000116 71965 -000119 71965-000122 71965-000125 71965-000128 71965-000131 1
ANSI 71965-000117 71965-000120 71965-000123 71965-000126 71965-000129 71965-000132 1
Spare parts
4
10
2
3
10
11
6
9
1
8
7
9
5
11
8.10
12
