SCREENGUARD
™
INSTALLATION AND USER MANUAL
DESCRIPTION
Dimensions

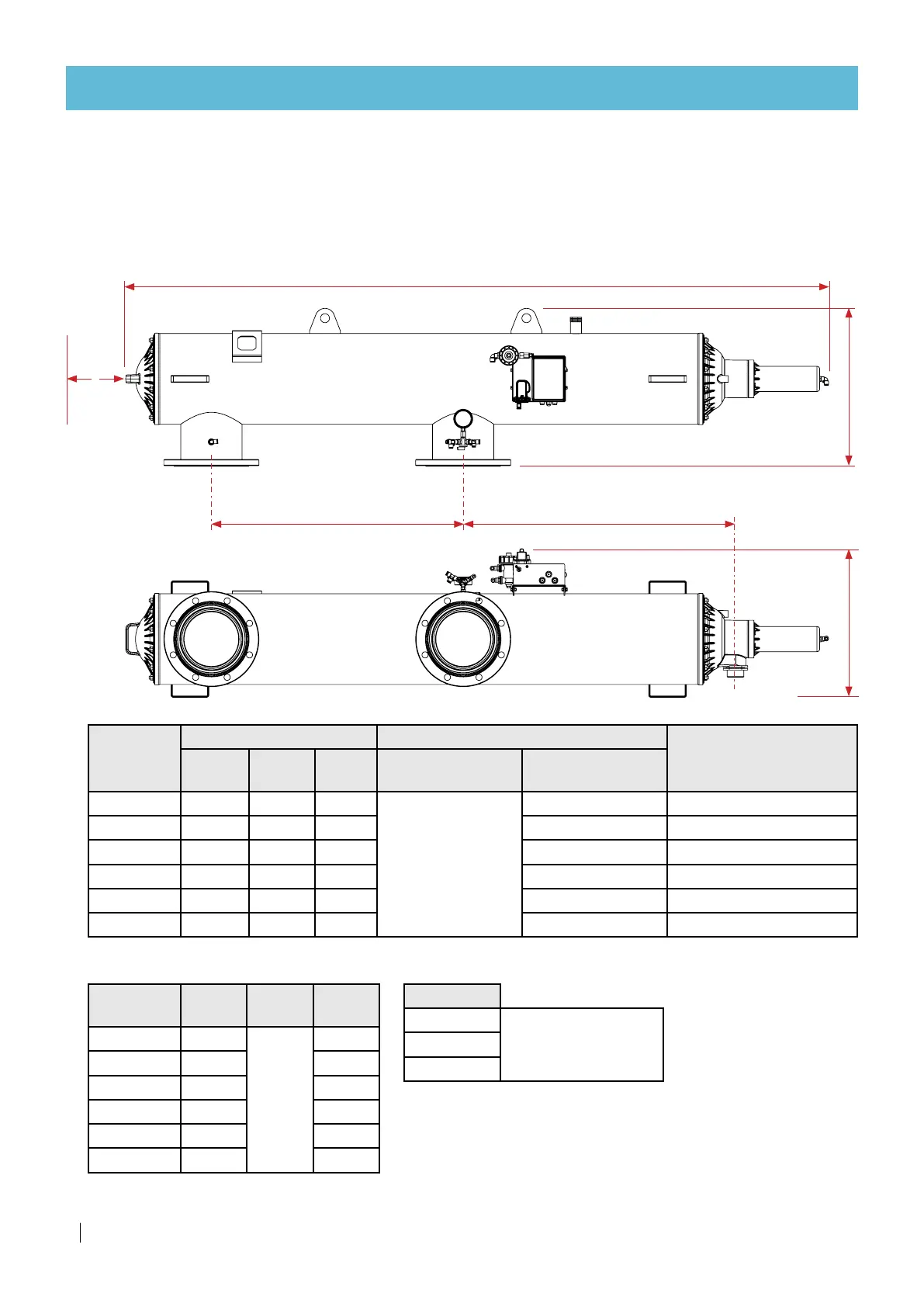

External dimentions and inlet and outlet locations [mm]:
H
W
Front view
L
A B
C
Bottom view
Model
External dimensions Inlet and outlet location
Clearance
for mantenance
[C]
Length
[L]
Height
[H]
Width
[W]
Inlet to outlet [A]
(Center to center)
Outlet to drain [B]
(Center to center)
SG H 4" F 2082 515 480
900
545 1500
SG H 4" JF 2512 565 530 973 2000
SG H 6" F 2082 515 480 545 1500
SG H 6" JF 2512 565 530 973 2000
SG H 8" F 2512 565 530 973 2000
SG H 10" F 2512 565 530 973 2000
Horizontal filters
Box dimentions
Model
Length
[L]
Height
[H]
Width
[W]
SG H 4" F 2,220
570
710
SG H 4" JF 2,620 760
SG H 6" F 2,220 710
SG H 6" JF 2,620 760
SG H 8" F 2,620 760
SG H 10" F 2,620 760
Model
SG H 210 F
Supplied in multiple
separate boxes
SG H 312 F
SG H 414 F
