NETGEAR C6220 User Manual

Specify Initial Settings
21
AC1200 WiFi Cable Modem Router Model C6220
View Modem Router Initialization
You can track the initialization procedure of the modem router and get details about the
downstream and upstream cable channel. The time is displayed after the modem router is
initialized.
The modem router automatically goes through the following steps in the provisioning
process:
• Scans and locks the downstream frequency and then ranges the upstream channels.
• Obtains a W
AN address for the modem router.
• Connects to the Internet.
 To view the status of the modem router initialization:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.

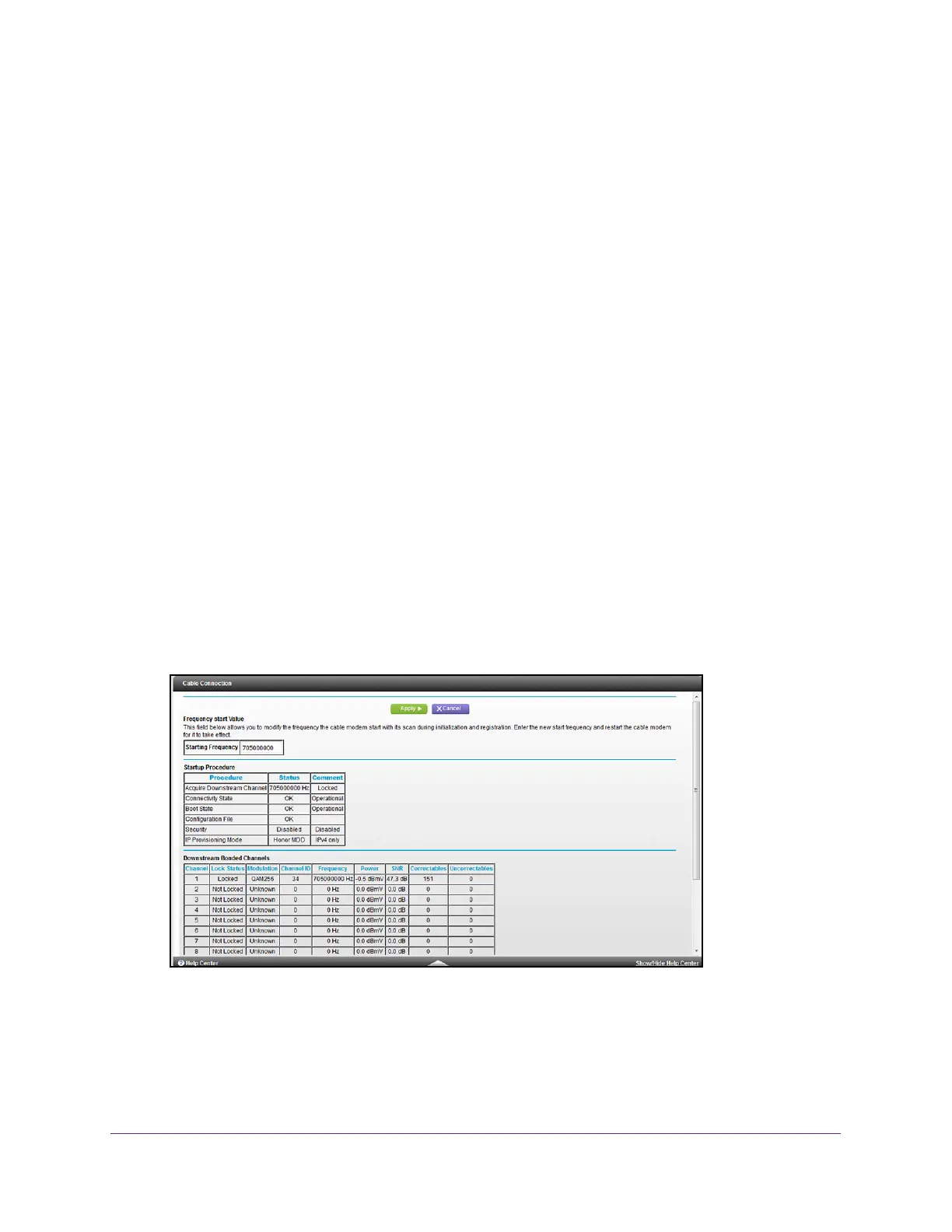

4. Select Cable Connection.
The Startup Procedure section displays the initialization progress.
The Downstream Bonded Channels section displays the status of each channel.

NETGEAR C6220 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	Power
USB port	Yes
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	12 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	340 Mbit/s
Certification	CableLabs
Processor frequency	1600 MHz
Cables included	LAN (RJ-45)
Power source type	AC
Security algorithms	WPA2, WPA2-AES

Weight and Dimensions

Depth	155 mm
Width	235 mm
Height	57 mm
Weight	440 g
