Manage Your Network
79
AC1200 WiFi Cable Modem Router Model C6220
Run the Traceroute Utility
To display the route and measure transit delays of packets across an IP, run the traceroute
utility.
To run a traceroute test:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Select ADV
ANCED > Administration > Diagnostics.

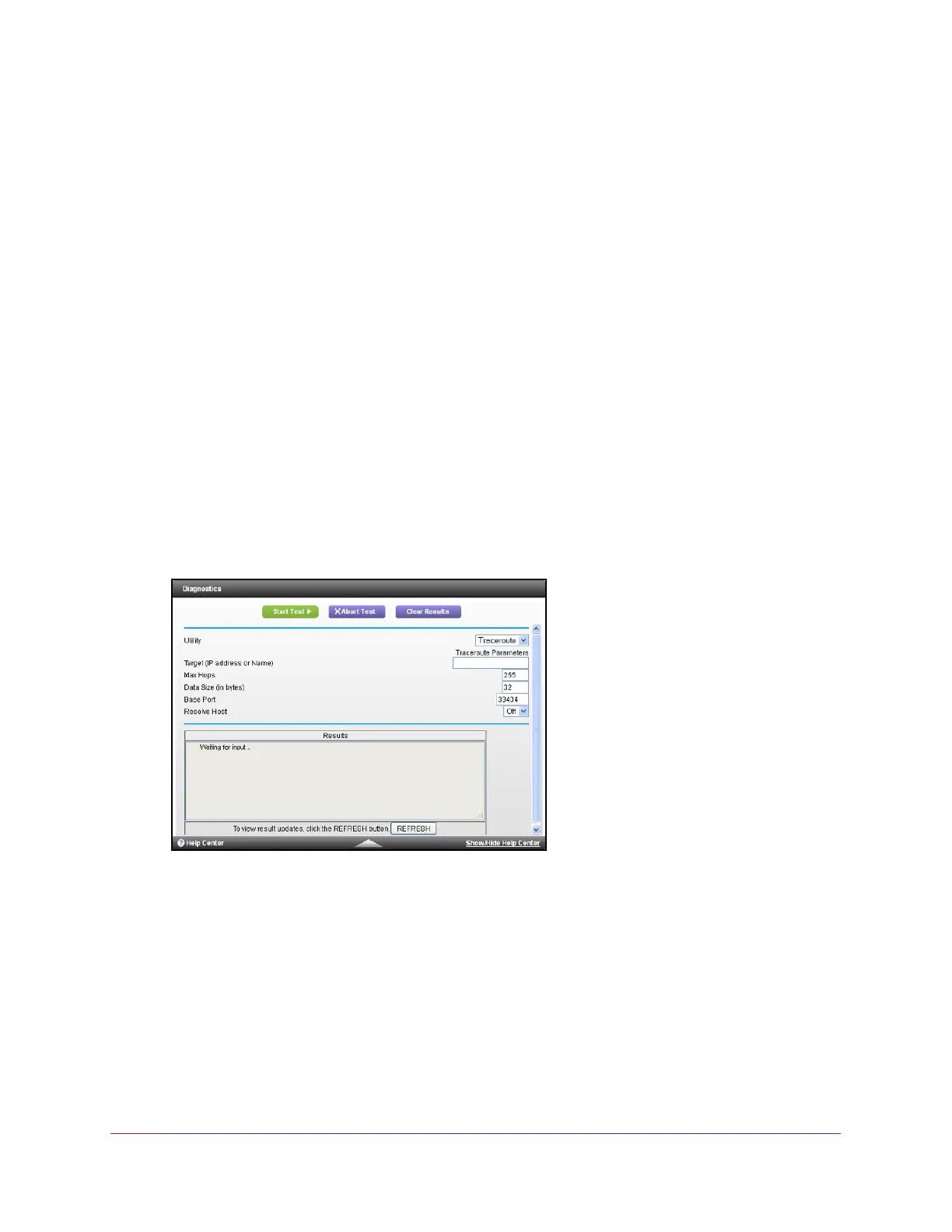

The Diagnostics page displays.
5. In the Utility field, select T
raceroute.
6. Specify the following parameters for the traceroute utility:
• T
arget. The IP address or host name of the computer that you are tracing.
• Max Hops.
The maximum number of hops to allow when tracing the route.
• Data Size.
The input the size (in bytes) of the packet.
• Base Port.
The port number to send the packet to.
• Resolve Host. Select On to resolve the host name to the IP address.
7. Click the Start T
est button.
The traceroute results display.
8. T
o clear the results from the display, click the Clear Results button.
