NETGEAR C6220 User Manual

Manage Your Network
68
AC1200 WiFi Cable Modem Router Model C6220
View Modem Router Status
 To view modem router status and usage information:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Select ADV
ANCED.
Scroll to view more

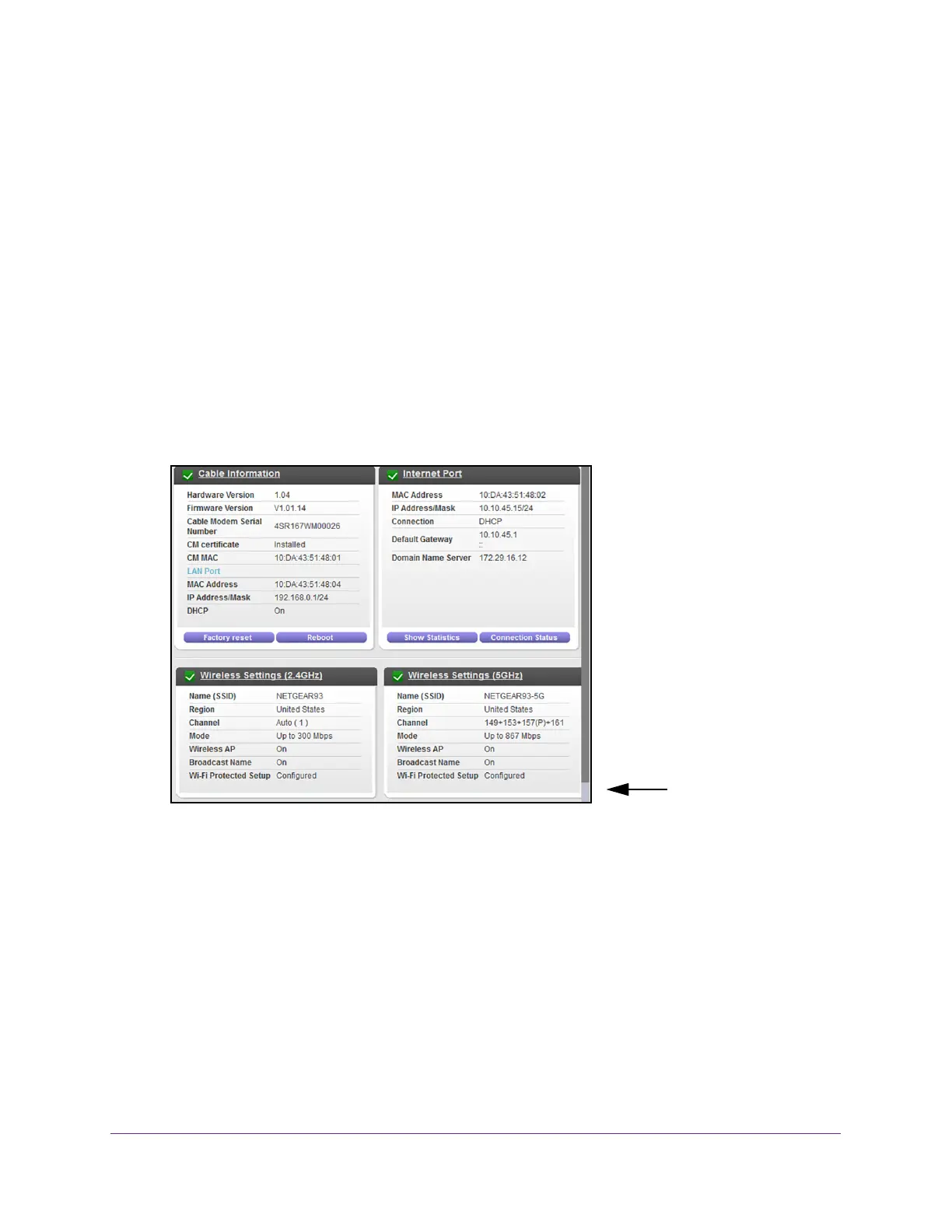

View Cable Information
 To view modem router cable information:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.

NETGEAR C6220 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	Power
USB port	Yes
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	12 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	340 Mbit/s
Certification	CableLabs
Processor frequency	1600 MHz
Cables included	LAN (RJ-45)
Power source type	AC
Security algorithms	WPA2, WPA2-AES

Weight and Dimensions

Depth	155 mm
Width	235 mm
Height	57 mm
Weight	440 g
