NETGEAR C6220 User Manual

Share a USB Storage Device Attached to the Modem Router
41
AC1200 WiFi Cable Modem Router Model C6220
Add a Network Folder on a USB Storage Device
You can add network folders on a USB storage device connected to the modem router USB
port.
 To add a network folder:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Select ADV
ANCED > ReadySHARE.
The USB Storage (Advanced Settings) page displays.
5. Click the Edit button.
6. Click the Create Network Folder button.
If this window does not open, your web browser might be blocking pop-ups. If it is,
change the browser settings to allow pop-ups.

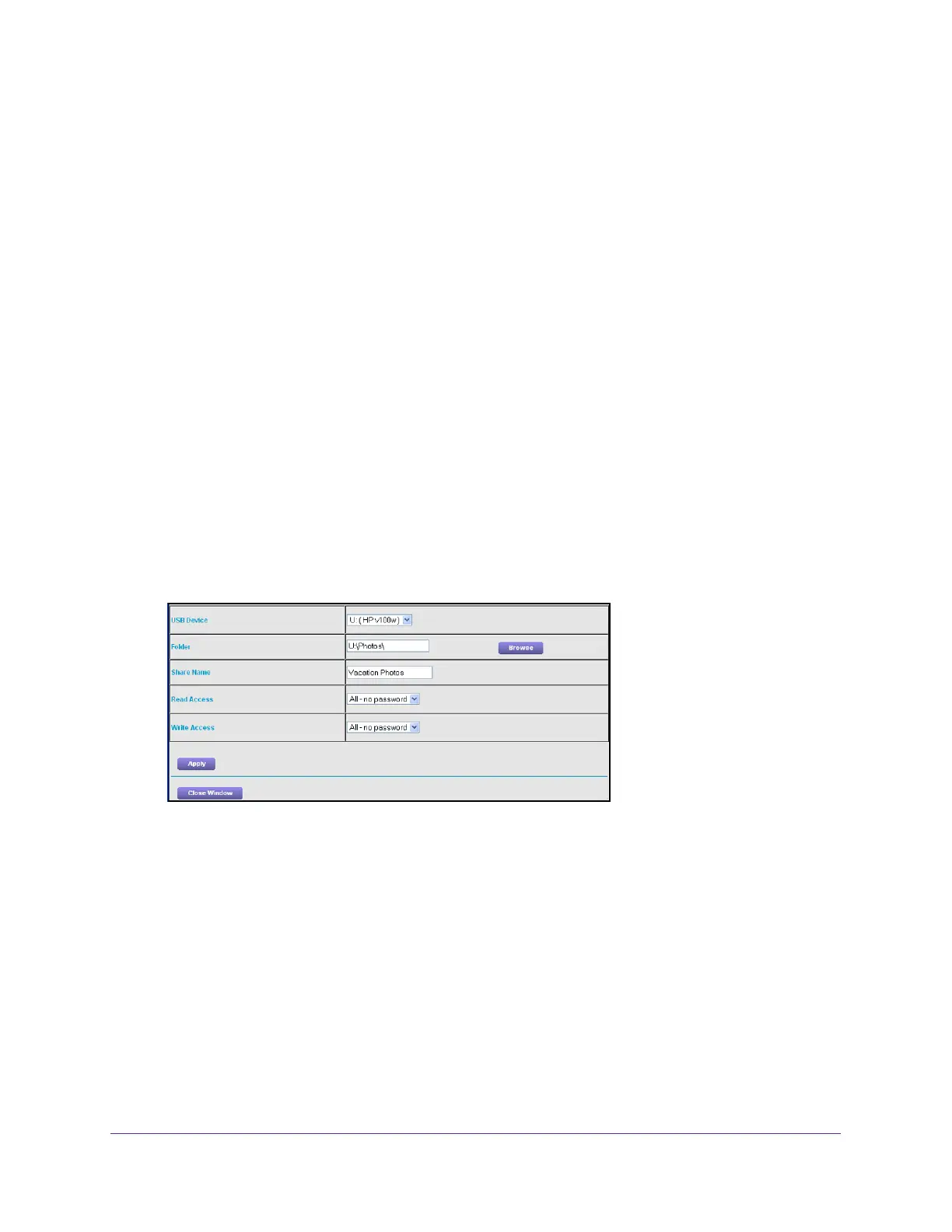

7. Complete the fields.
The user name (account name) for All – no password is guest. The password for admin is
the same one that is used to log in to the modem router. By default, it is password.
8. Click the Apply button.
The folder is added on the USB device.

NETGEAR C6220 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	Power
USB port	Yes
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	12 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	340 Mbit/s
Certification	CableLabs
Processor frequency	1600 MHz
Cables included	LAN (RJ-45)
Power source type	AC
Security algorithms	WPA2, WPA2-AES

Weight and Dimensions

Depth	155 mm
Width	235 mm
Height	57 mm
Weight	440 g
