SECTION 4 -- LUBRICATION AND MAINTENANCE
4--7
FLEXIBLE MAINTENANCE
OPERATION 1

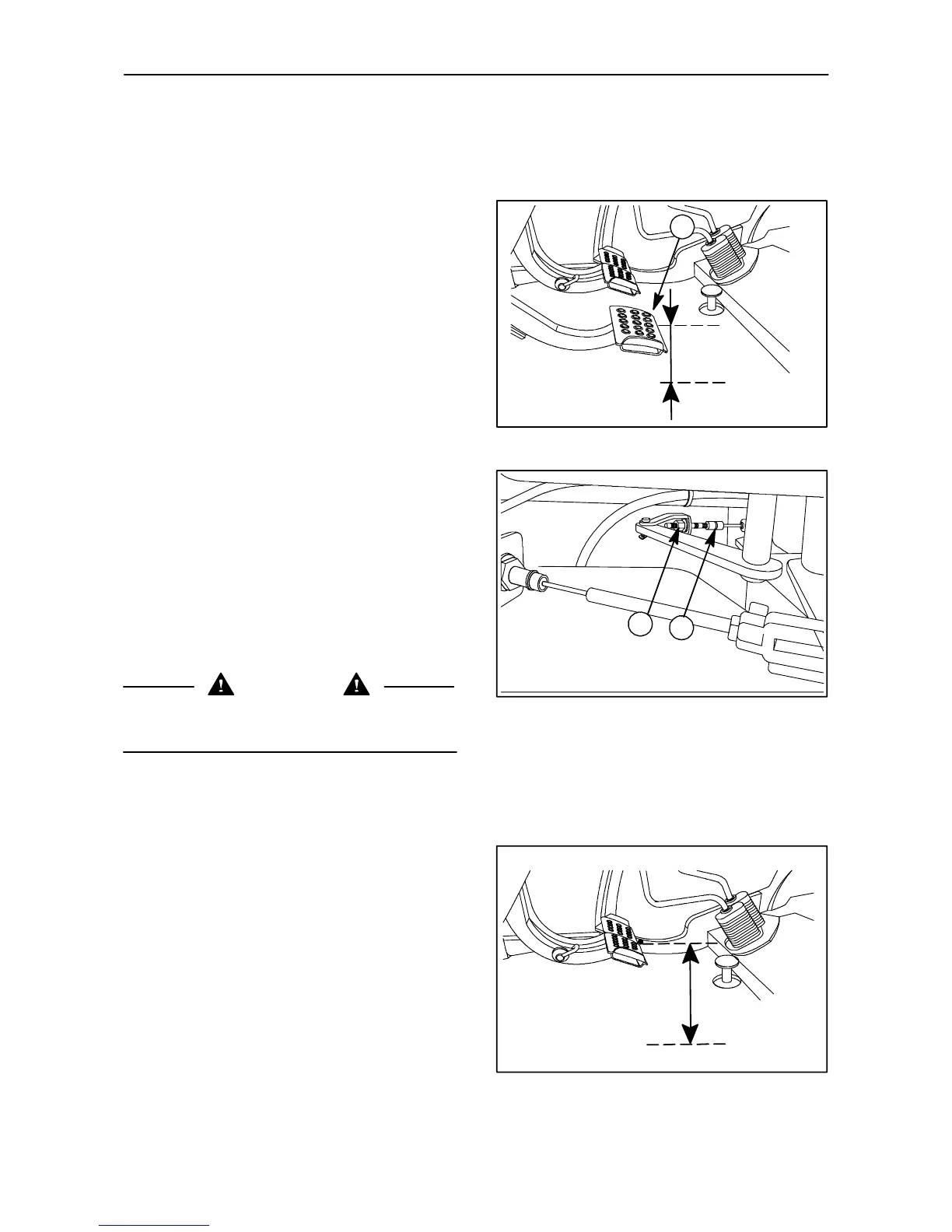

CLUTCH ADJUSTMENT -- Figs. 1 and 2
If the clutch pedal position is uncomfortable (too
high) or it will not reach its upper rest position (to
prevent the clutch slipping) check that distance A,on
clutch pedal (1) fig. 1 is 35--40 mm (1.4--1.6 in) if not,
adjust the pedal as follows:
-- Release lock nuts (1) fig. 2 and turn hexagon
sleeve (2) anti--clockwise;
-- Check that distance A corresponds with the
value given above;
-- Tighten lock nuts (1) fig. 2;
-- Re--check that the pedal travel is as specified.
CAUTION
The distance must be measured from the pedal
centre as shown in fig. 1.
A
1
1
1
2
2
OPERATION 2
BRAKE PEDAL ADJUSTMENT -- Fig. 3-- 4
Adjusting height of service brake pedals
-- With the brake pedals connected to their
respective forks and the pedal connecting pin
released, check pedal adjustment.
-- Check that pedal free travel (A) is the same for
each pedal and does not exceeds 80 mm.
A
3
