SECTION 3 -- FIELD OPERATIONS
3--6

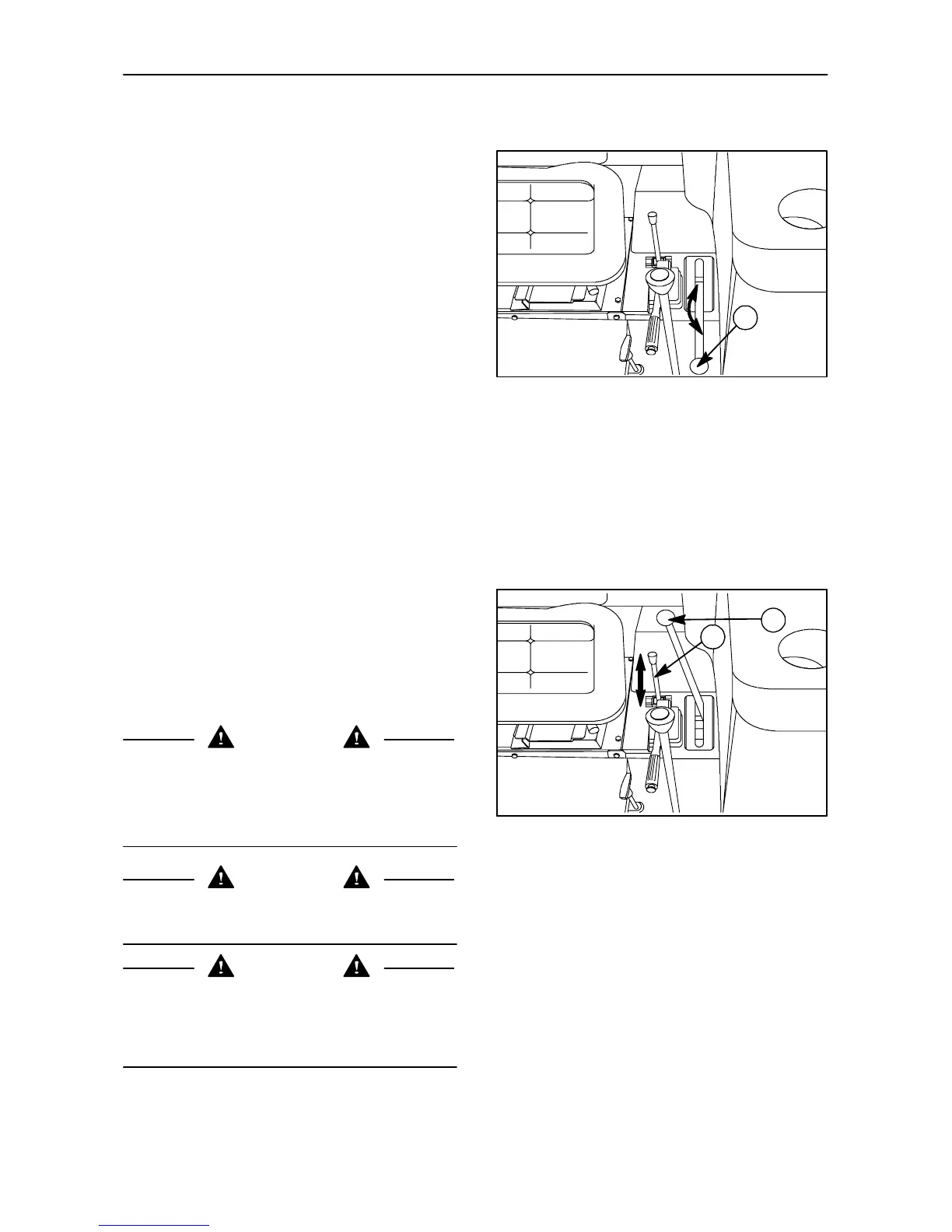

POWER TAKE--OFF OPERATION
INDEPENDENT POWER TAKE--OFF --
Figs. 4 and 5
To operate the power take--off, proceed as follows:
-- disengage the power take--off clutch by moving
the lever (1) fig. 4 to the DOWN position;
-- move operation selector lever (1) fig. 5 rearward
to position B;
-- engage the clutch slowly by moving lever (2)
fig. 5 to the UP position so as to start the splined
output shaft turning.
In this case, operation is totally independent of the
tractor ground speed, and you can therefore:
-- stop the tractor without stopping the power
take--off;
-- stop the power take--off without stopping the
tractor (by disengaging the power take--off
clutch).
1
4
The shaft rotates clockwise, as seen from the rear of
the tractor.
To disengage the power take--off, move the clutch
control lever (1) fig. 4 to the DOWN position.
WARNING
When the power take--off is not in use, with an
implement connected, the selector lever (1) fig. 5
should be in NEUTRAL position and the clutch
control lever (1) fig. 4 should be in the disengaged
position (DOWN).
DANGER
Always check that the plastic guards on the drive
shaft are in perfect condition.
A
B
2
1
5
IMPORTANT
To prolong release bearing life RAISE the PTO clutch
control lever (1), fig. 4, and move the selection lever
(1) fig. 5 to the NEUTRAL position when the PTO
will not be used for long periods of time .
