10 – ENGLISH
PROGRAMMING POSITIONS
Position LED Description
Position 0
(motor 2)
L2
maximum closing position: when the leaf
relative to motor 2 strikes the closing
mechanical stop
Position SA
(motor 2)
L3
Offset on opening: when the leaf associated
with motor 2 moves beyond this position,
leaf 1 will start to open
Position A
(motor 1)
L4
Desired opening position: position in which
the leaf associated with motor 1 must stop
at the end of an opening manoeuvre. This
position must not necessarily correspond
to the opening mechanical stop; it can be
chosen as desired between positions “0”
and “1”
Position A
(motor 2)
L5
Desired opening position: position in which
the leaf associated with motor 2 must stop
at the end of an opening manoeuvre. This
position must not necessarily correspond
to the opening mechanical stop; it can be
chosen as desired between positions “0”
and “1”
Position SC
(motor 1)
L6
Offset on closing: when leaf 1 is below this
position, leaf 2 will start to close
Position 1
(motor 1)
L7
Maximum opening position: when the leaf
relative to motor 1 strikes the opening
mechanical stop
Position 1
(motor 2)
L8
Maximum opening position: when the leaf
relative to motor 2 strikes the opening
mechanical stop

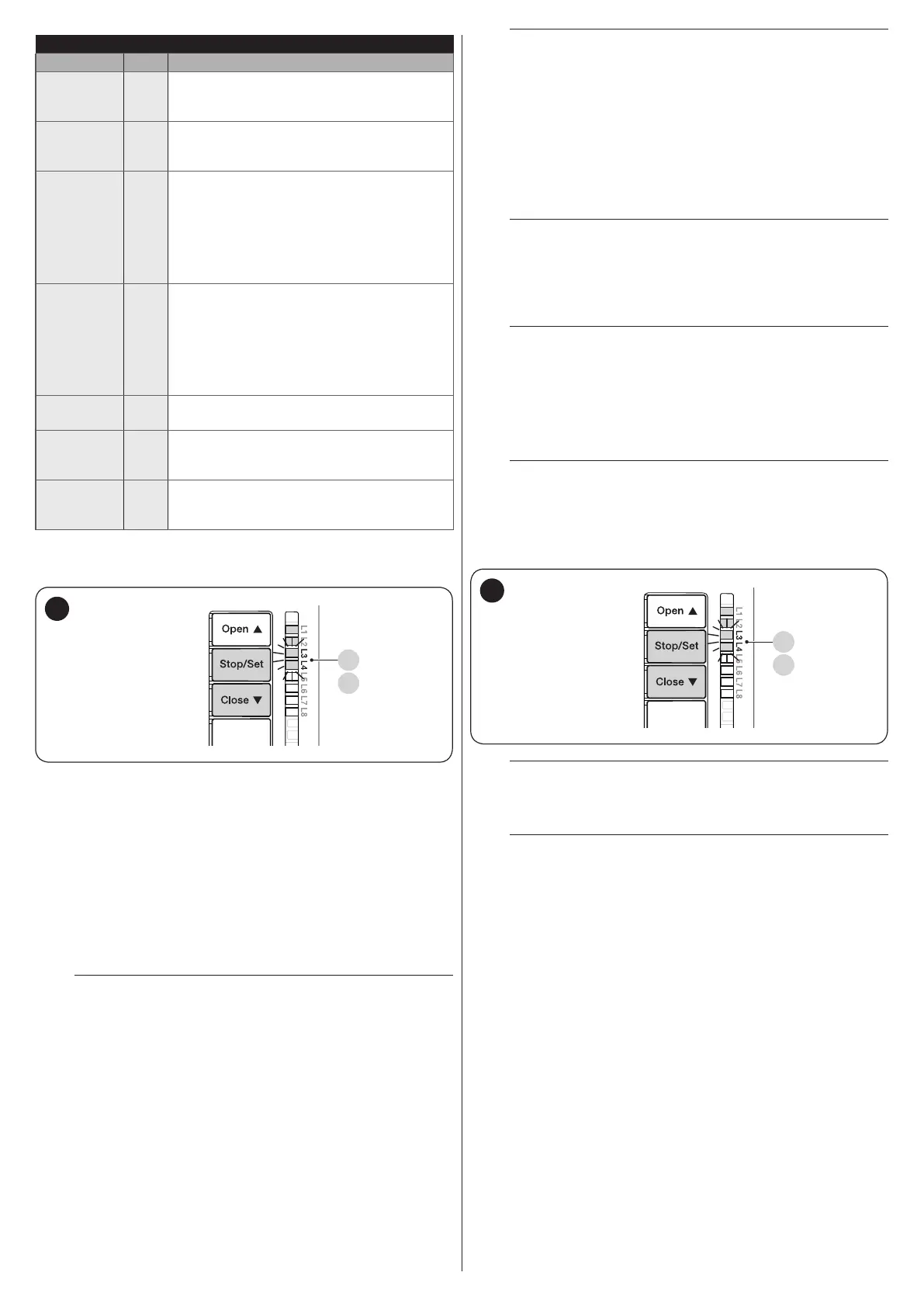

4.8.1 Learning in automatic mode
L3
L4
14
To effect the automatic learning procedure:
1. simultaneously press and hold the and
g
buttons
h
2. release the buttons when LEDs “L3” and “L4” start ash-
ing quickly (after roughly 5 seconds)
3. check that the automation carries out the following ma-
noeuvre sequences:
a. slow closing of motor M1 up to the mechanical stop
b. slow closing of motor M2 up to the mechanical stop
c. slow opening of motor M2 and of motor M1 up to the
stop
d. fast closing of motors M1 and M2.
m
If the rst manoeuvre (a) fails to close the leaf con-
trolled by motor M1 but closes the one controlled by
M2, press
f
or
h
to stop the learning
phase. At this point, reverse the connections of mo-
tors M1 and M2 on the terminals on the control unit
and those of the respective encoders. Then repeat
the self-learning procedure.
m
If the rst two manoeuvres (a and b) are not “clos-
ing” but “opening” manoeuvres, press the
f
or
h
button to stop the learning phase. At
this point, invert the control wires (external posi-
tions with respect to the terminal) on the motor that
executed the opening manoeuvre and repeat the
self-learning procedure.
4. at the end of the closing manoeuvre (d) of the two motors,
LEDs “L3” and “L4” switch off to signal that the proce-
dure was performed correctly.
m
If, during the automatic learning procedure, the
photocells or one of the devices connected to the
“stop” input intervene, the procedure interrupts and
LED L1 starts ashing. In this case, the self-learning
procedure must be repeated from the beginning.
l
The automatic learning procedure can be run again
at any time, even after the installation phase; for ex-
ample, after modifying the position of the mechan-
ical stops.
4.8.2 Learning in manual mode
m
The user has maximum 10 seconds to press the
buttons consecutively during the learning proce-
dure. After this time, the procedure terminates au-
tomatically and memorises the changes made up to
that time.
L3
L4
15
l
When LEDs "L1..L8" ash, to shift between LEDs
simply press the
f
or
h
button brief-
ly (the LED will ash to signal the current position).
l
While LEDs "L1..L8" ash, to move the motor in any
one direction, it is necessary to press and hold the
f
or
h
button.
To effect the manual learning procedure:
1. simultaneously press and hold the and
g
buttons
h
2. release the buttons when LED “L1” starts ashing (after
roughly 3 sec)
3. LED “L1” ashes: position 0 of M1
– to command and move motor 1 to position “0” (“Fig-
ure 13”): press and hold the
f
or
h
button. Once the position is reached, release the button
to stop the manoeuvre
– to memorise the position, press and hold the
g
button for at least 3 seconds then release it (after 2 sec-
onds LED “L1” will remain lit and after the
g
button is released, LED “L2” will start ashing)
