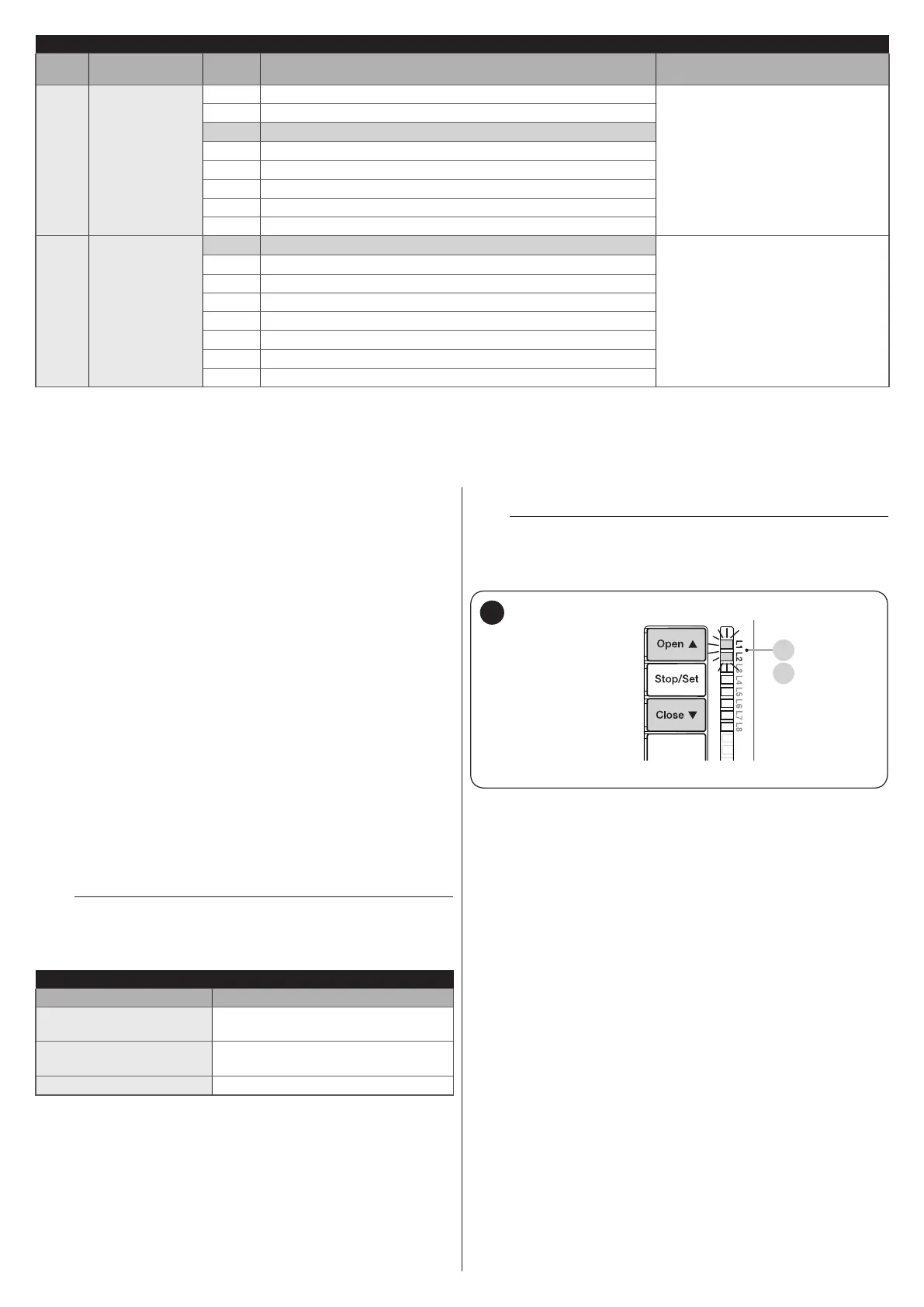

16 – ENGLISH
LEVEL 2 FUNCTIONS (ADJUSTABLE PARAMETERS)
Entry
LED
Parameter
LED
(level)
Set value Description
L7
Maintenance
notication
L1 500
Adjusts the number of manoeuvres
after which the automation
maintenance request is triggered
(see the ““Maintenance notice”
function” paragraph).
L2 1000
L3 1500
L4 2500
L5 5000
L6 10000
L7 15000
L8 20000
L8
List of
malfunctions
L1 Result of 1
st
manoeuvre (most recent)
Allows for verifying the type of
anomaly that occurred in the last 8
manoeuvres (see “Anomaly log”
paragraph).
L2 Result of 2
nd
manoeuvre
L3 Result of 3
rd
manoeuvre
L4 Result of 4
th
manoeuvre
L5 Result of 5
th
manoeuvre
L6 Result of 6
th
manoeuvre
L7 Result of 7
th
manoeuvre
L8 Result of 8
th
manoeuvre
6.4 SPECIAL FUNCTIONS
6.4.1 “Move anyway” function
This function can be used to operate the automation even one
or more some safety devices fail to work properly or are out of
order. The automation can be controlled in “hold-to-run” mode
by proceeding as follows:
1. send a command to operate the gate, using a transmitter
or key selector, etc. If everything functions properly, the
gate will move normally, otherwise proceed with point 2
2. within 3 seconds, press the control again and hold it down
3. after roughly 2 seconds, the gate will complete the re-
quested manoeuvre in “hold-to-run” mode, in other
words, it will continue to move so long as the control is
held down.
6.4.2 “Maintenance notice” function
This function allows for signalling to the user when the auto-
mation needs maintenance. The maintenance signal is given
through a lamp connected to the “OGI” output, if this output is
congured as a “Maintenance indicator”.
The conguration is only possible through the “Oview” program-
mer (refer to the “Connecting the IBT4N interface” paragraph).
l
The various indicator lamp signals are shown in “
Table 8”.
Table 8
“MAINTENANCE INDICATOR” SIGNAL
Number of manoeuvres Signal
Below 80% of the limit
Lamp stays lit for 2 seconds at the
start of the opening manoeuvre.
Between 81% and 100%
of the limit
Lamp ashes for the entire duration
of the manoeuvre.
Over 100% of the limit
Lamp ashes continuously.
6.5 MEMORY DELETION
m
The procedure described below restores the con-
trol unit’s default settings. All the custom settings
will be lost.
L1
L2
19
To delete the control unit’s memory and restore all the default
settings, proceed as described below:
1. press and hold the
f
and
h
buttons until
LEDs “L1” and “L2” start ashing
2. release the buttons.
