Chapter 2 Individual Operations
45
Chapter 2
Individual Operations
10

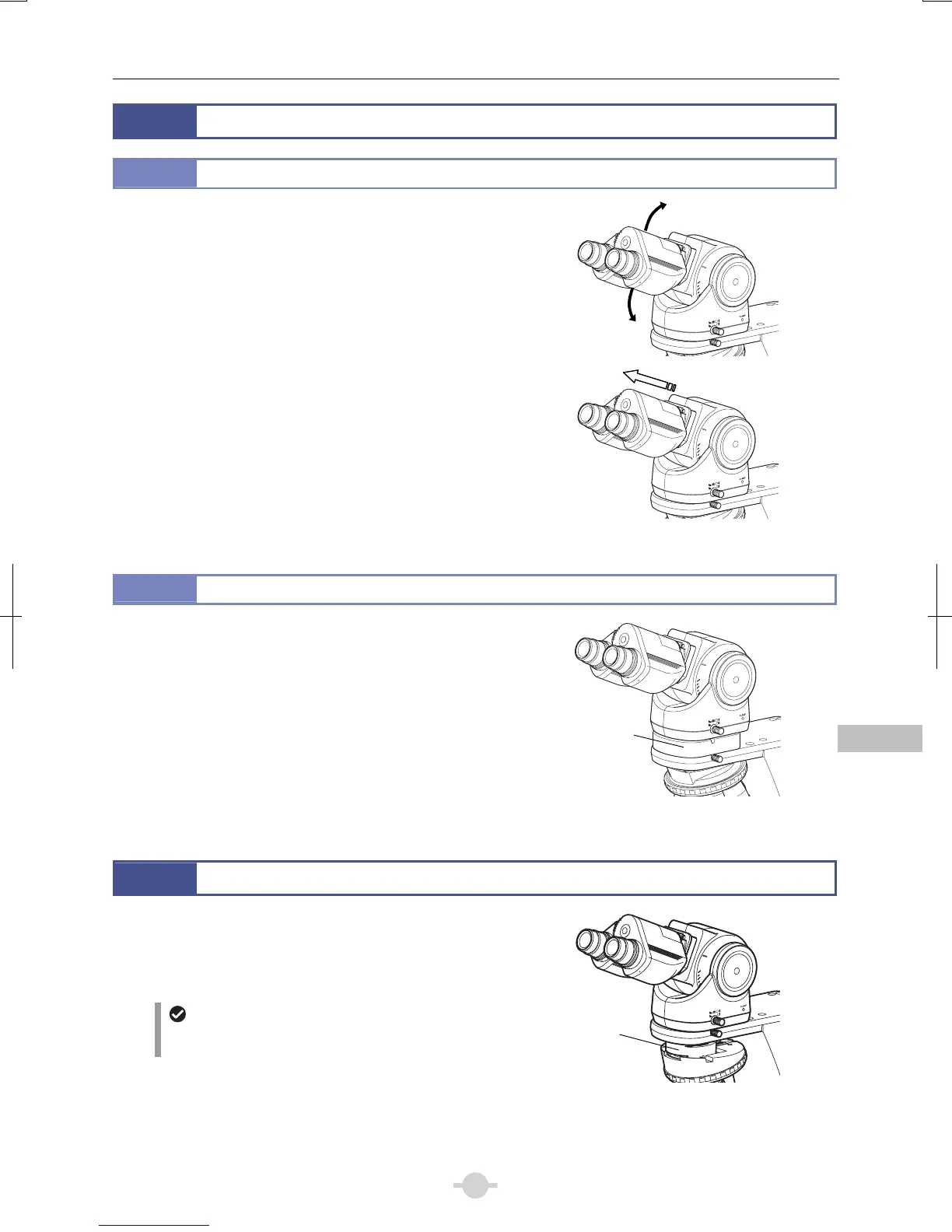

Adjusting the Binocular Section
10.1
Adjusting with the Binocular Section of the Tube
The ergonomic tube makes it possible to tilt and extend the
binocular section. Adjust the position of the binocular section fo
most comfortable viewing.
Adjusting the binocular section
10.2
Using the Eyelevel Riser
Inserting the eyelevel riser between the tube and the microscope
arm allows you to raise the eye point 25 mm higher.
Using the eyelevel riser
11
Using Stage at Lowered Position (Spacer for Nosepiece)
Inserting a spacer for the nosepiece between the arm and the
nosepiece allows for operation with the stage set 20 mm lower.
A lowered stage facilitates specimen replacement during a
cytodiagnostic examination, etc.
Using the filter cassette holder not allowed
The filter cassette holder placed on the field lens is not
allowed to use together with the spacer for nosepiece.
Using the spacer for the nosepiece
Eyelevel rise
Spacer for the
nosepiece
