Nikon eclipse Ci-L User Manual

Chapter 3 Assembly
62
Chapter 3
Assembly
3
Assembly for Phase Contrast Microscopy
Follow the procedure described in Section 2 “Assembly for Bright-field Microscopy” to perform assembly.
Note the following:
■ Attaching a condenser for phase contrast microscopy
Use a condenser for the phase contrast microscopy in the step 3, “Attaching the condenser.”
The procedure is the same.
■ Attaching a Ph objective
A Ph objective must be attached in the step 7 “Attaching the objective”.
The procedure is the same.
4
Assembly for the Simple Polarizing Microscopy
Follow the procedure described in Section 2 “Assembly for Bright-field Microscopy” to perform assembly.
Note the following:
■ Attaching an analyzer tube for simple polarization
Attach an analyzer tube for simple polarization to the
microscope arm prior to the step 4, “Attaching the tube.”
Place the analyzer unit (analyzer tube for simple
polarization) on the arm so that the analyzer IN/OUT knob
is positioned to the right, and secure the analyzer unit in
place with the analyzer unit clamp screw.
Place the tube on the analyzer unit and tighten the tube
clamp screws of the analyzer unit using the tool provided
with the microscope to secure the tube.
Slider-type analyzer for simple polarization
When using the D-SA Analyzer Slider for Simple
Polarization instead of an analyzer tube for simple
polarization, insert it into the analyzer slot of the nosepiece.
(To use the D-SA Analyzer Slider for Simple Polarization,
the C-NA sextuple nosepiece with analyzer slot is
required.)
CLAMP
TORQUE
ND4
ND8
OUT
IN
ND4
ND8
OUT
IN

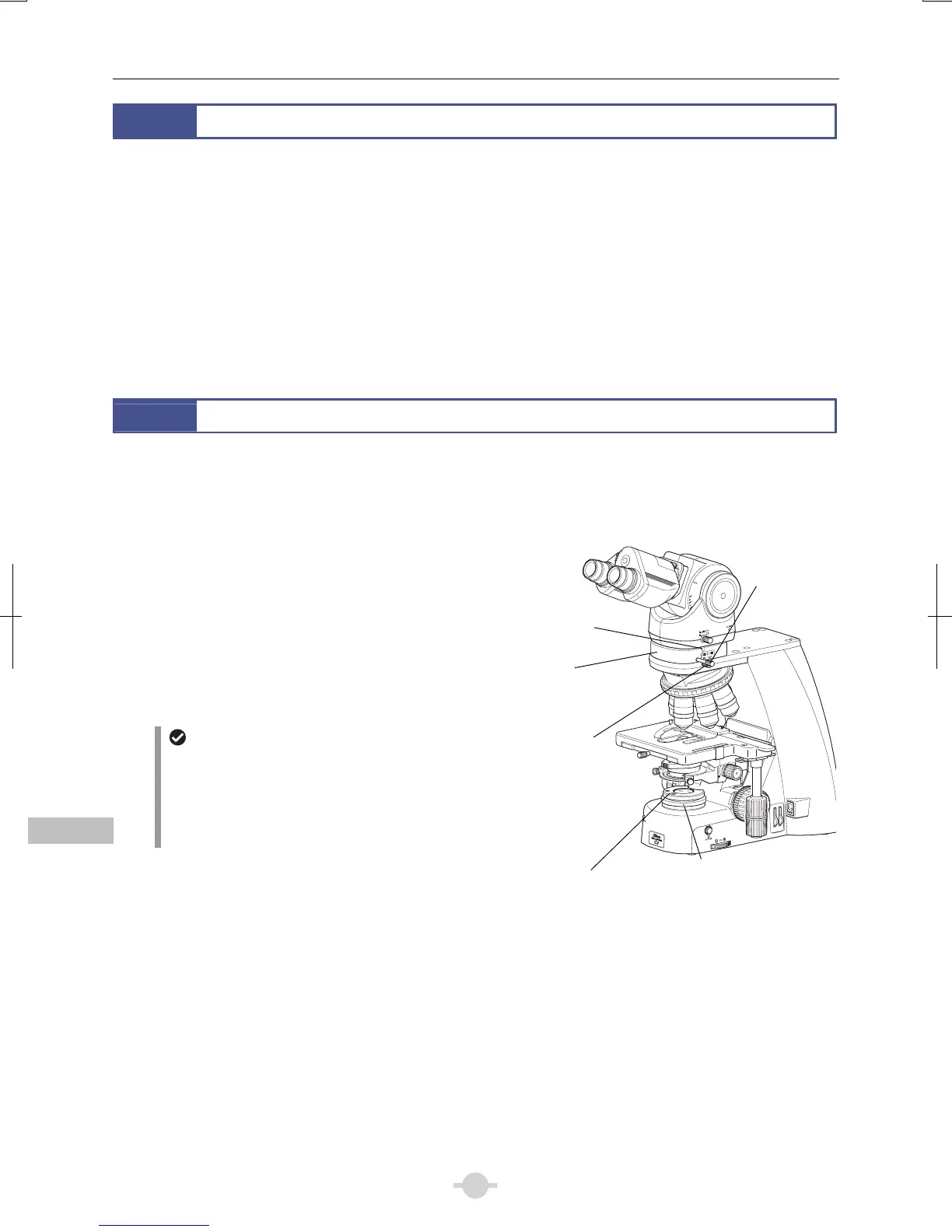

Attaching an analyzer tube for simple polarization,
polarizer unit for simple polarization
■ Attaching a polarizer unit for simple polarization
Set the polarizer unit for simple polarization over the field lens on the base of the microscope. Make sure the
orientation mark on the polarizer comes to the front at this point and tighten the polarizer unit clamp screw.
The actual securing will take place after the orientation of the analyzer and polarizer has been adjusted in Step 13 o
f
the simple polarizing microscopy procedure.
Tube clamp
screw
(use a tool)
A
nalyzer
IN/OUT knob
A
nalyzer unit
clamp screw
A
nalyzer tube fo
r
simple polarization
Polarizer unit
clamp screw (use a tool)
Polarizer unit fo
r
sim
p
le
p
olarization
