Chapter 3 Assembly
60
Chapter 3
Assembly
5

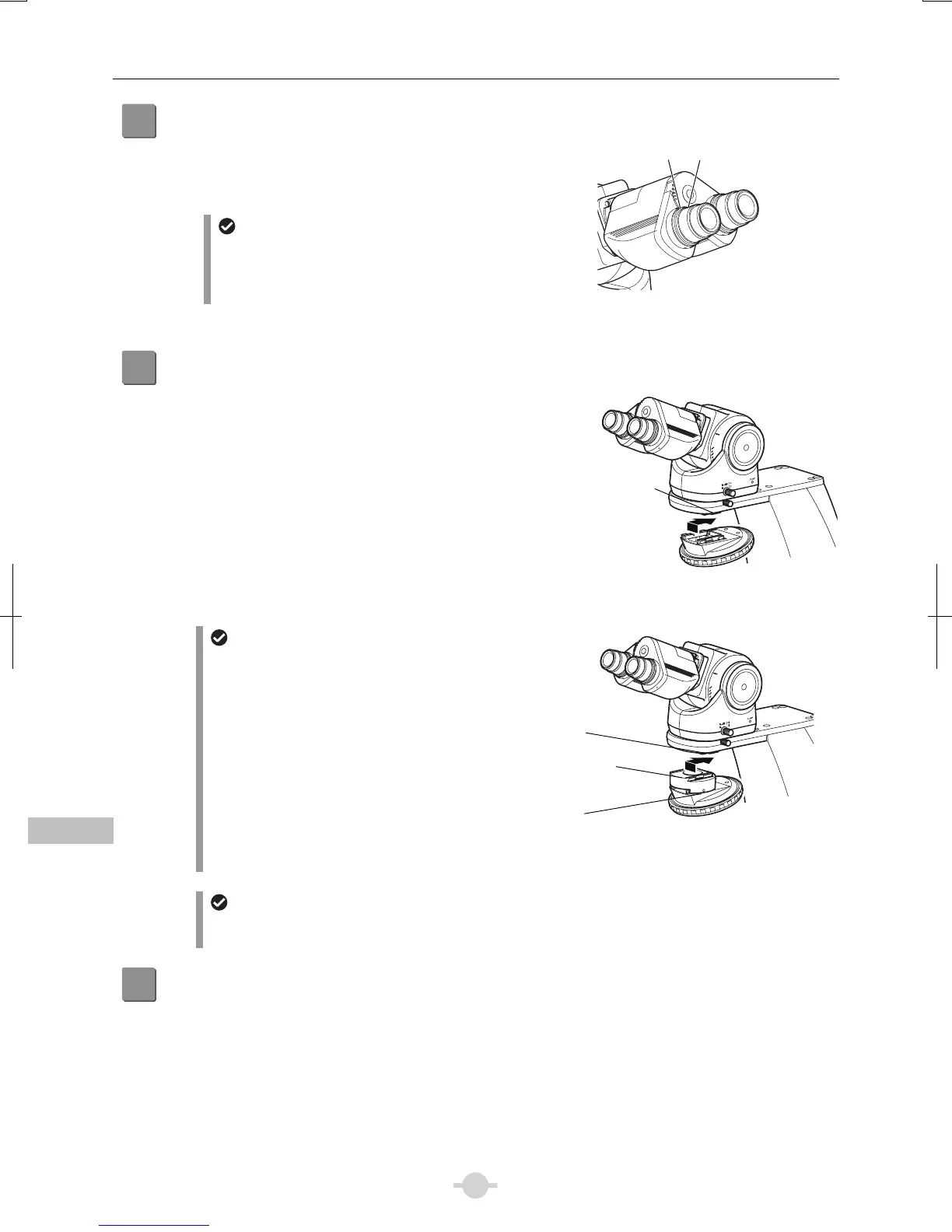

Attaching eyepieces
Make sure the notch on the eyepiece side and the
protrusion of the eyepiece sleeve are aligned, then insert
the eyepieces.
Notch on eyepiece
Eyepiece has a notch to prevent rotation. When
attaching, match the notch with the protrusion on
the eyepiece sleeve. Otherwise, eyepiece is not
attached to the correct position.
Attaching eyepieces
6
Attaching the nosepiece
Place the nosepiece under the fitting part, at a position
slightly toward yourself. (Continue sliding the nosepiece
until its front position is aligned with that of the fitting
part.) Secure it in place with the tool provided with the
microscope.
Attaching the nosepiece
Using the spacer for the nosepiece
Follow the procedure below to attach the spacer fo
the nosepiece.
(1) Slide the spacer for the nosepiece along the
groove to attach it to the nosepiece, and
secure it in place with the provided tool.
(2) Lower the stage to the limit.
(3) Place the nosepiece with the spacer on the
microscope following the procedure described
in “Attaching the nosepiece” on the previous
page.
Attaching the spacer for the
nosepiece
Exclusivity of the spacer for the nosepiece and the filter cassette holder
The spacer for the nosepiece cannot be used simultaneously with the filter cassette holder placed on the field
lens.
7
Attaching the objective
Screw the objective into the nosepiece. When attaching the objective in this way, make sure that the magnification
of the objective increases when the nosepiece is turned clockwise (clockwise when viewed from above the
eyepiece).
Nosepiece clamp screw
(use a tool)
Spacer for
the nosepiece
Spacer for
the nosepiece
clamp screw
(use a tool)
Nosepiece
clamp screw
(use a tool)
Protrusion
Notch
