2. DESCRIPTION OF OPERATION
(1) Electrophotographic process
The electrophotographic process is explained briefly below:
1. Charging
A voltage is applied to the CH roller to electrically charge the surface of the
OPC drum.
2. Exposure
The LED head radiates light onto the charged OPC drum surface in
accordance with an image signal. The electric charge of the radiated part
of the OPC drum surface attenuates depending on the intensity of the light,
thus forming an electrostatic latent image on the OPC drum surface.
3. Development
Charged toner adheres to the electrostatic latent image of the OPC drum by
electrostatic power, and forms a visible image on the OPC drum surface.
4. Transfer
Paper is placed over the OPC drum surface and an electric charge is
applied to it from the backside by the transfer roller, so that the toner image
is transferred to the paper.
5. Fusing
Heat and pressure are applied to the toner image on the paper to promote
its fusion.
6. Drum cleaning
The drum cleaning blade removes toner remaining on the OPC drum after
transfer.
7. Static elimination
Residual potential on the image drum is removed.
8. Belt cleaning
The belt cleaning blade removes toner remaining on the belt.

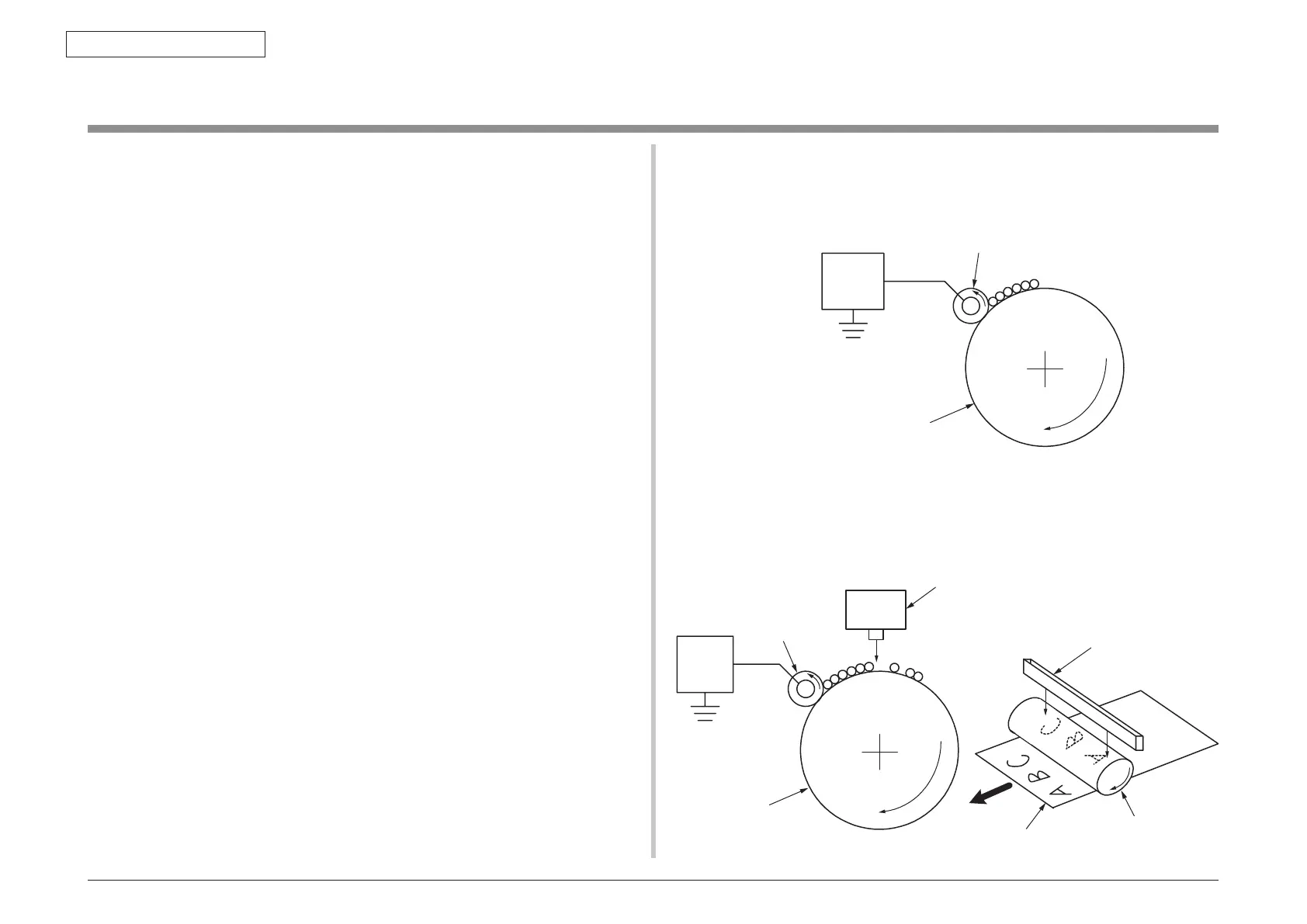

2.1 Electrophotographic process mechanism
(2) Charging
A voltage is applied to the charging roller, which is placed in contact with the OPC
drum surface, to charge the OPC drum surface.
(3) Exposure
The light emitted from the LED head is radiated onto the charged OPC drum
surface. The charge of the radiated part of the OPC drum attenuates according to
the intensity of the light, forming an electrostatic latent image on the OPC drum
surface.
-
-
-
-
-
-
-
-
-
Power
supply unit
Paper
OPC drum
OPC drum
LED head
LED head
Charging roller
-
-
-
-
-
-
Power
supply unit
Charging roller
OPC drum

Oki MC362w Specifications

General

Duplex printing	Yes
Print technology	LED
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Print speed (color, normal quality, A4/US Letter)	23 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Time to first copy (black, normal)	12 s
Time to first copy (color, normal)	14 s
Copy speed (black, normal quality, A4)	25 cpm
Copy speed (color, normal quality, A4)	23 cpm
Scan drivers	TWAIN
Scanner type	Flatbed & ADF scanner
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	2 ppm
Scan speed (color)	3 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF
Optical scanning resolution	1200 x 1200 DPI
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	45000 pages per month
Recommended duty cycle	3000 - 5000 pages per month
Number of print cartridges	4
Page description languages	Epson FX, IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Maximum internal memory	768 MB
Sound pressure level (copying)	55.5 dB
Sound pressure level (printing)	54 dB
Sound pressure level (quiet mode)	37 dB
Paper input type	Paper tray
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	880 sheets
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF) input capacity	50 sheets
Envelopes sizes	9, 10, C5, DL
Maximum print size	216 x 356 mm
Duplex media weight	64 - 176 g/m²
Paper tray media types	Photo paper, Plain paper
Paper tray media weight	64 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Gray
Display resolution	320 x 128 pixels
Market positioning	Business
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	802.1x RADIUS, WEP, WPA, WPA-TKIP, WPA2-AES, WPS, WPS-PBC, WPS-PIN
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Supported network protocols (IPv6)	TCP/IPv4&v6, SMTP, POP3, HTTP, SNMPv1&v3, DHCP, DNS, LPR, Port9100, BOOTP, ARP, FTP, CIFS, LDAP, SLP, Bonjour, NetWare, EtherTalk, NetBEUI, LLTD
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Power consumption (off)	0.5 W
Power consumption (standby)	1.5 W
Power consumption (PowerSave)	20 W
Power consumption (average operating)	570 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	509 mm
Width	427 mm
Height	444 mm
